OM-181 712 Page 16
SECTION 7 − PARTS LIST
. Hardware is common and
not available unless listed.
143 224-B
1
2
3
5
6
8
10
11
12
9
4
7

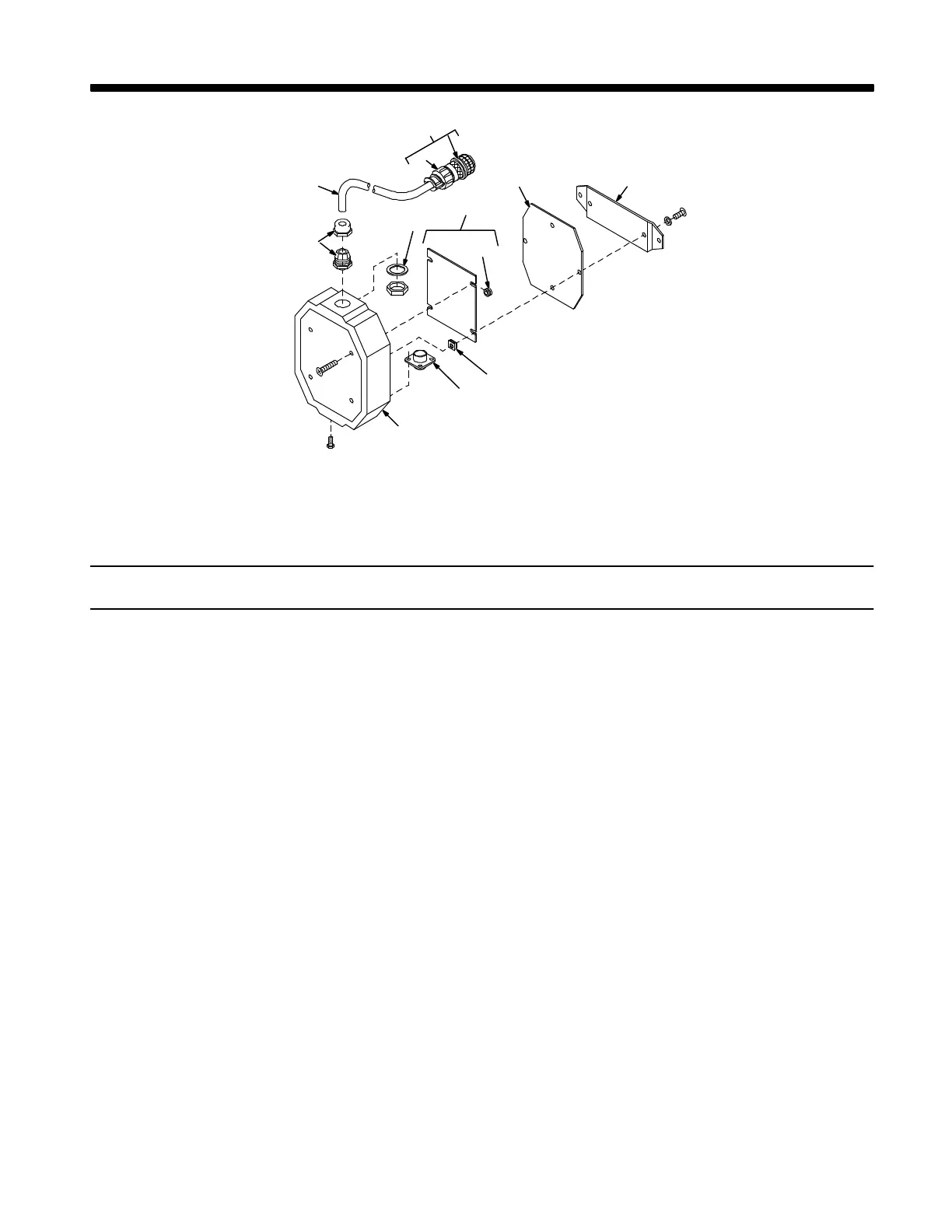

Figure 7-1. Complete Assembly
Description Quantity
Part
No.
Dia.
Mkgs.
Item
No.
Figure 7-1. WC-24 Control
1 139 042 Bushing, Strain Relief .270/.480 Id X .804Mtg Hole 1... ............ .. ....................
2 600 341 Cable, Port No. 16 3/C (Order By Ft) 6Ft... ............ .. ...............................
3 PLG4 141 162 Connector & Pins, (Consisting Of) 1... .. ... .. ...................................
4 143 922 Connector, Clamp Str Rlf Sz 17-20 Amp 206070-3 1... ............ ... ...................
5 135 736 Washer, Flat Rbr .812 Id X 1.125 Id X .031Thk 1... ............ .. ........................
6 PC1 247 681 Circuit Card Assy, SC Motor 1... ... .... .. ........................................
7 601 242 Insulator, Washer Heat Sink 4... ............ .. ........................................
PLG1 115 094 Connector & Sockets 1........ ... .. ..............................................
PLG2 115 092 Connector & Sockets 1........ ... .. ..............................................
8 138 384 Cover, Control 1... ............ .. ....................................................
148 550 Gasket, Cover 1.................. .. ....................................................
9 136 840 Bracket, Mtg Control 1... ............ .. ...............................................
10 135 363 Nut, Speed Push-On-Type 6-32 U Type 4... ............ .. ..............................
11 RC3 190 363 Rcpt W/Skts (Service Kit) 1... ... .... .. ..........................................
12 135 370 Housing, Circuit Control 1... ............ .. ............................................
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
To Next Page
