Milli-Q IX 7003 - Water Process

Introduction
3
Water process
The Milli-Q
®
IX 7003/7005/7010/7015 manages the production and the distribution of pure
(Type 2) water from a tap water source. It is composed of three different sections:
• Water purication unit manages the production of pure water.
• Storage tank stores and maintains the pure water quality.
• Point of dispense (E-POD
®
unit) integrates the screen interface and manages the dispensing of
pure water. At least one E-POD
®
unit is necessary and up to 2 E-POD
®
units can be installed in total.

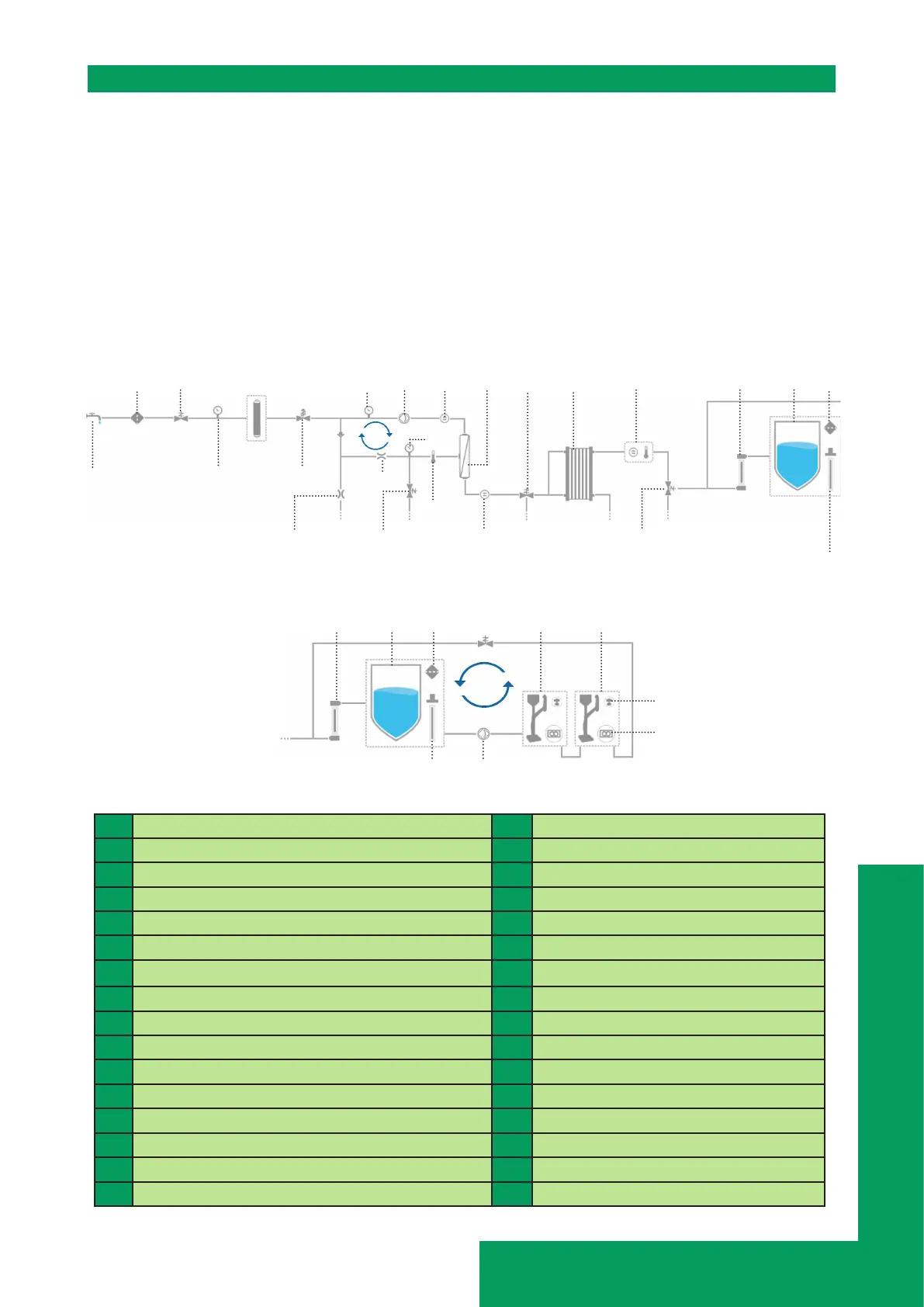

Production ow-schematic
Distribution ow-schematic
1
3
4
6
7 11
5
8
10
12 13
14
15
1 Tap feed water 17 Permeate conductivity cell
2 Inlet strainer 18 Permeate 3 ways valve
3 Inlet solenoid valve 19 Elix
®
EDI module
4 System feed pressure sensor 20 Pure water resistivity cell
5
IPAK Gard
®
(1 or 2 depending on system type)
21 Pure water 3 ways valve
6 Pressure regulator 22 ech
2
o
®
bactericidal lamp
7 Reverse osmosis (RO) reject capillary 23 Storage tank (25, 50 or 100L)
8 RO pump feed pressure sensor 24 Tank vent lter
9 RO recovery loop 25 ech
2
o
®
ASM lamp
10 Flow controller 26 Distribution inlet solenoid valve
11 RO ush solenoid valve 27 Recirculation loop
12 RO pump 28 Distribution pump
13 Feed conductivity cell 29 Primary E-POD
®
unit (mandatory)
14 RO pressure sensor 30 Secondary E-POD
®
unit (optional)
15 Thermistor 31 Application POD-Pak
16
RO membrane (1 or 2 depends on syst type)
32 Flowmeter
16
17
18 19 20
21
22
23
25
24
26
28
29
30
22 23 24
25
2
9
31
32
27
