Milltronics COMPU-M User Manual

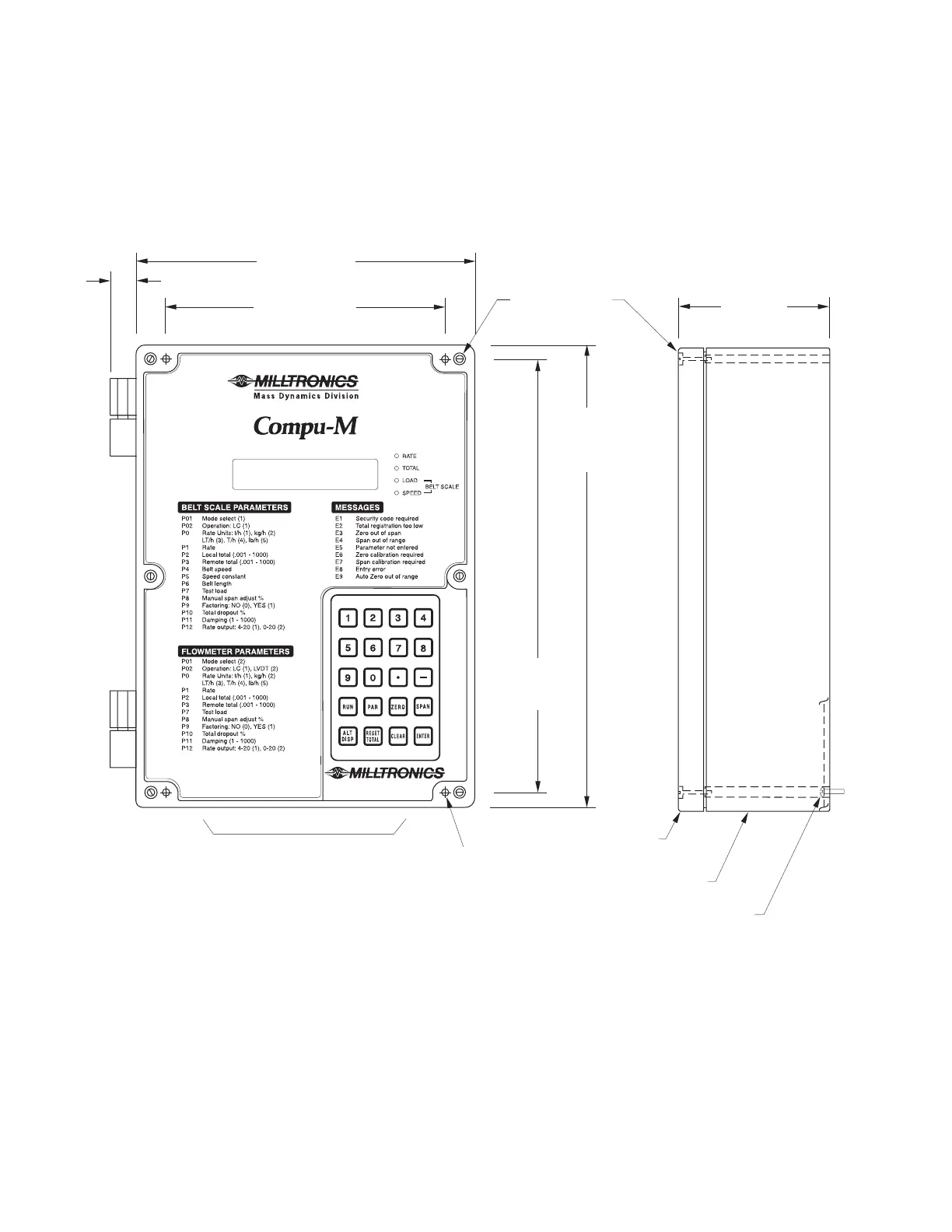

OUTLINE AND MOUNTING
suitable location for conduit entrances
Milltronics recommends using a punch
for making holes in enclosure.
91 mm
(3.6")
lid screws
(6 places)
209 mm
(8.2")
172 mm
(6.8")
16 mm
(0.6")
285 mm
(11.2")
267 mm
(10.5")
lid
enclosure
customer
mounting screw
mounting holes
(accessed under lid
4.3 mm (0.17") dia.
4 places
Non metallic enclosure does not provide grounding between connections.
Use grounding type bushings and jumpers.
PL-516 12
