Milltronics COMPU-M User Manual

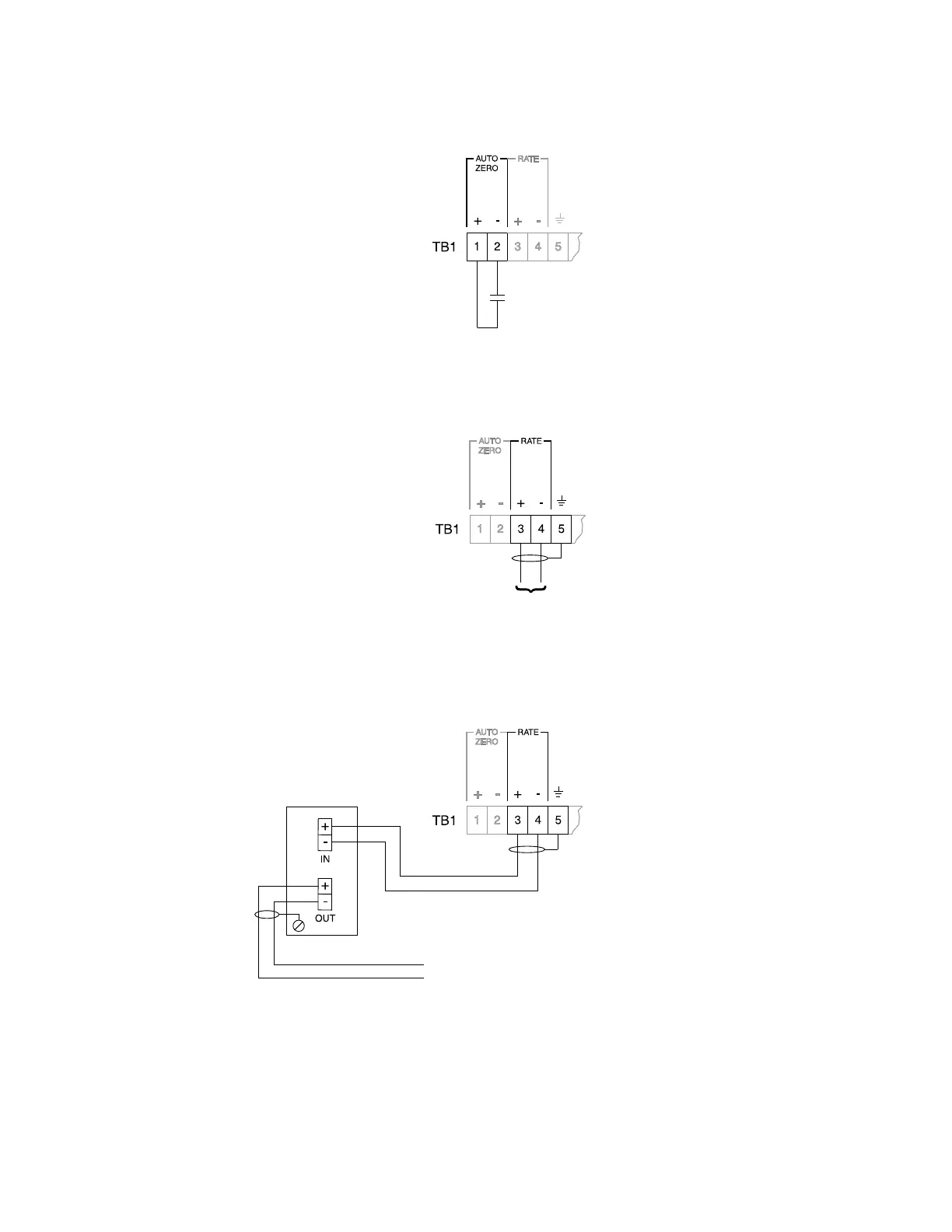

ANCILLARY CONNECTIONS
AUTO ZERO
ANALOG OUTPUT
ANALOG OUTPUT ISOLATOR
1. Auto Zero dry contact may be provided by a material prefeed control device, such that the
contact is closed when the material feed is stopped.
2. Analog output must not be grounded, 750 Ω maximum load.
3. Compu-M to LIs - 1 isolator wiring by Milltronics if isolator is factory installed.
prefeed activated
dry contact
to analog
input device
isolated 4 - 20 mA output wiring 600 Ω load
optional LIs - 1
isolator
Compu-M
(board B)
Compu-M
(board B)
Compu-M
(board B)
PL-516 19
