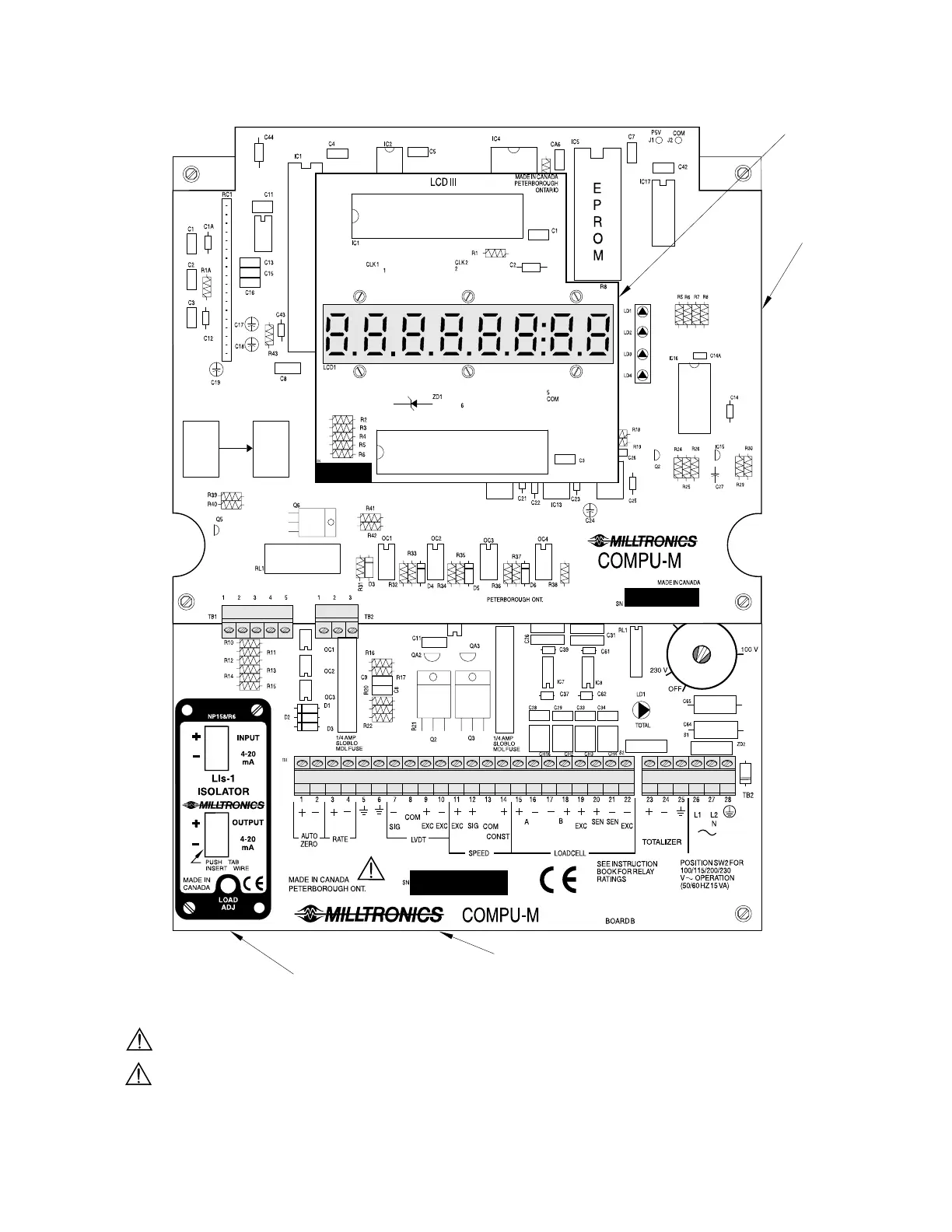

COMPU-M LAYOUT
board B
Isolator (optional)
LCD
board
board A
dc terminals shall be supplied from an SELV source in accordance with IEC-1010-1 Annex H.
All field wiring must have insulation suitable for at least 250 V.
