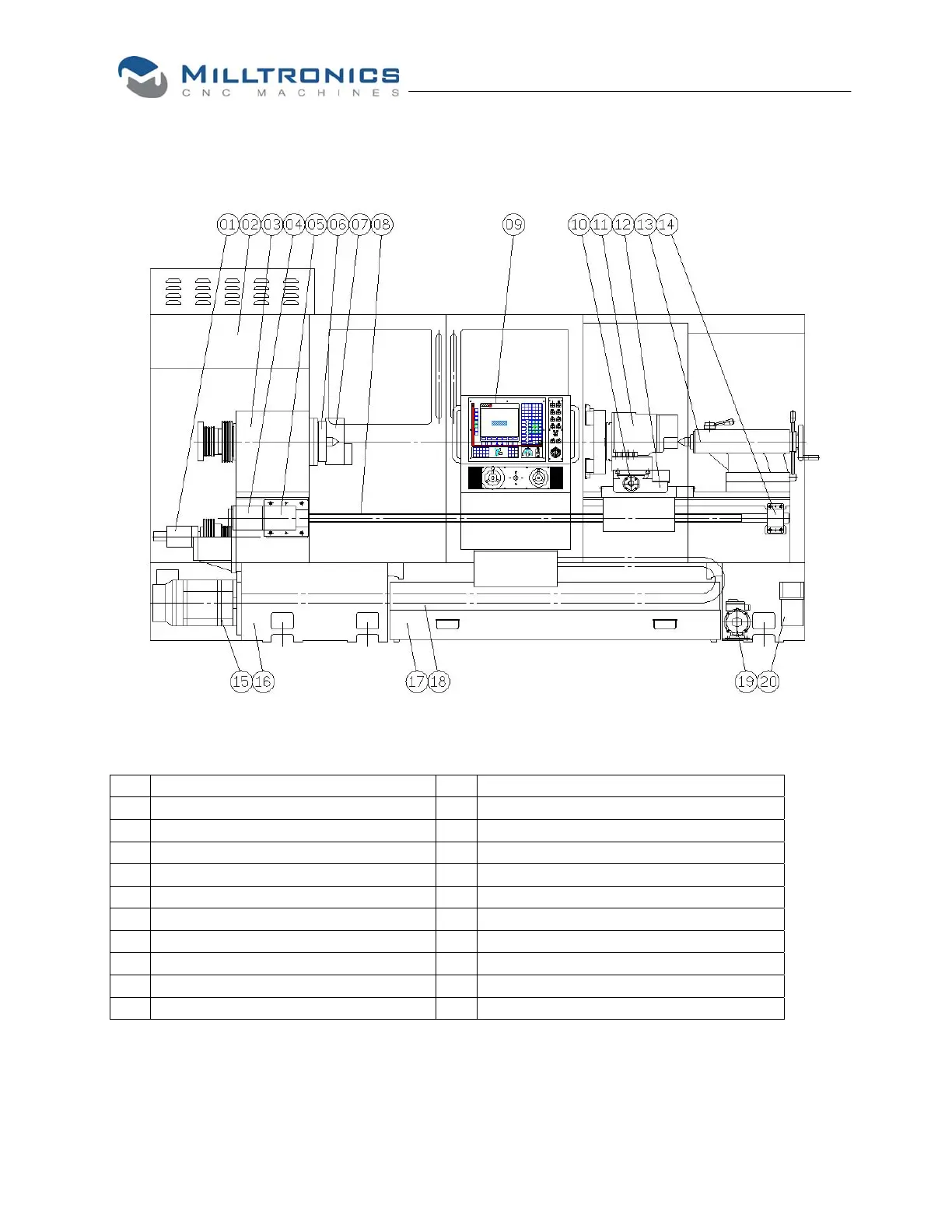

CHAPTER 2 - SPECIFICATION
Item Identification
Item Description Item Description
1 Speed change device, if equipped 11 Turret (option)
2 Electric box 12 Cross slide
3 Headstock 13 Tail stock
4 Z axis servo motor 14 Bearing bracket (rear )
5 Bearing bracket (front) 15 Spindle servo motor
6 Spindle 16 Bed support stand
7 Chuck (option) 17 Coolant tank
8 Z axis ball screw 18 Chip tray
9 CNC control panel 19 Coolant pump
10 X axis ball screw 20 Lubrication unit
