CHAPTER 6 - MAINTENANCE
Hydraulic System Maintenance

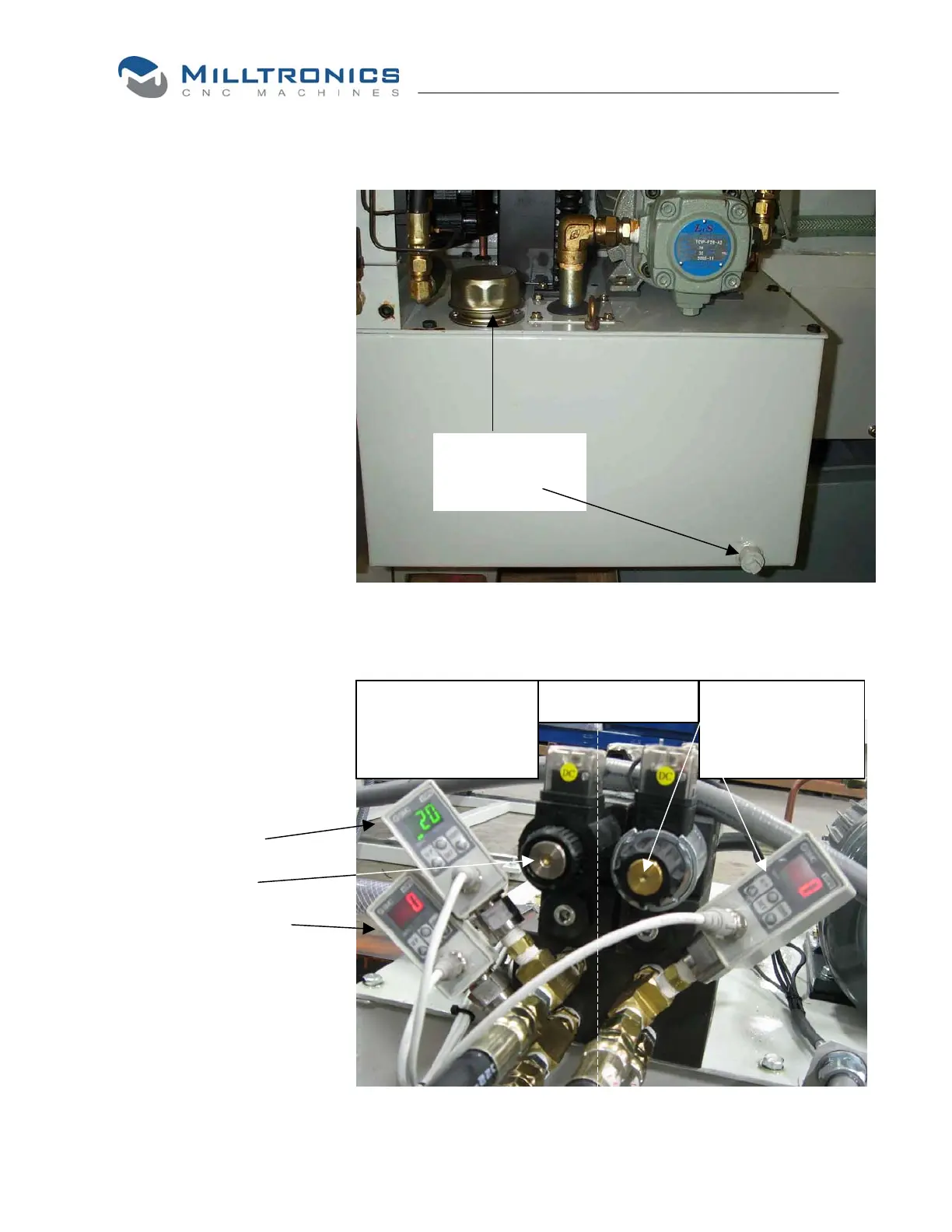

Check oil level in the
hydraulic tank weekly and
top off with Mobil DTE24 or
equivalent if necessary.
Replace the hydraulic oil
annually with Mobil DTE24
or equivalent. Tank
capacity is 18 Gallons or 68
Liters
Filler/vent cap
A maintenance label on the
top of the hydraulic tank
indicates the oil type and
quantity.
Drain
Hydraulic Valves and Pressure Switch/Gauges
45
Tailstock
o Manual actuator
o Pressure switch
and gauge (x10).
Chuck
o Manual actuator
o Pressure switches
and gauges (x10).
Chuck clamp (OD)
Manual actuator
Chuck unclamp (OD)
Note: Gauges displa
y
p
ressure x 10.
Front View
