INTERCONNECTION

All wiring must be done in conjunction with approved conduit,

boxes and fittings and to procedures in accordance

with all governing regulations.

Note :

— — — — indicates customer wiring in all diagrams.

INSTALLING THE TRANSDUCER

refer to transducer manual

for wiring details

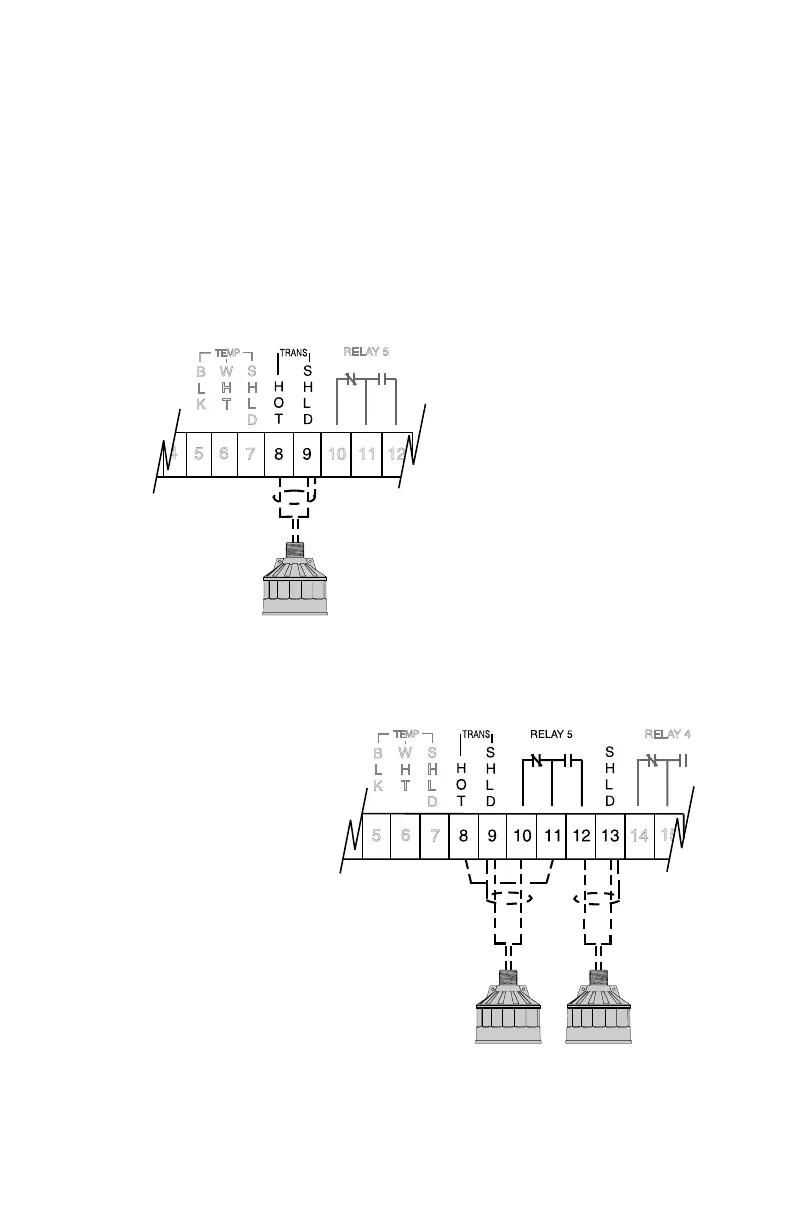

Basic Wiring

black

white /

shield

Differential Level - Basic Wiring

transducer

white /

shield

black

white /

shield

PL-443 3 – 3
