SYNCHRONIZATION
In applications where more than one MultiRanger Plus, up to a maximum of 8, are
going to be used or where their transducers will be sharing a common conduit,
synchronization is required. When synchronized, no MultiRanger Plus(s) will transmit
within 180 msec of the prior one(s).
To synchronize MultiRanger Plus’s, interconnect the SYNC terminals TB1-4 of all
motherboards and ensure that there is a common hydro ground interconnecting
all units.
To synchronize MultiRanger Plus’s and MultiRangers, interconnect the SYNC terminal
TB1-4 of the MultiRanger Plus to the SYNC terminal TB1-9 of the MultiRanger.
To synchronize more than 8 MultiRangers or MultiRangers with other Milltronics
ultrasonic level detection models (e.g. MicroRanger, AirRanger, etc...) consult
Milltronics or your distributor.
All units to be synchronized must be
interconnected by a common hydro ground.

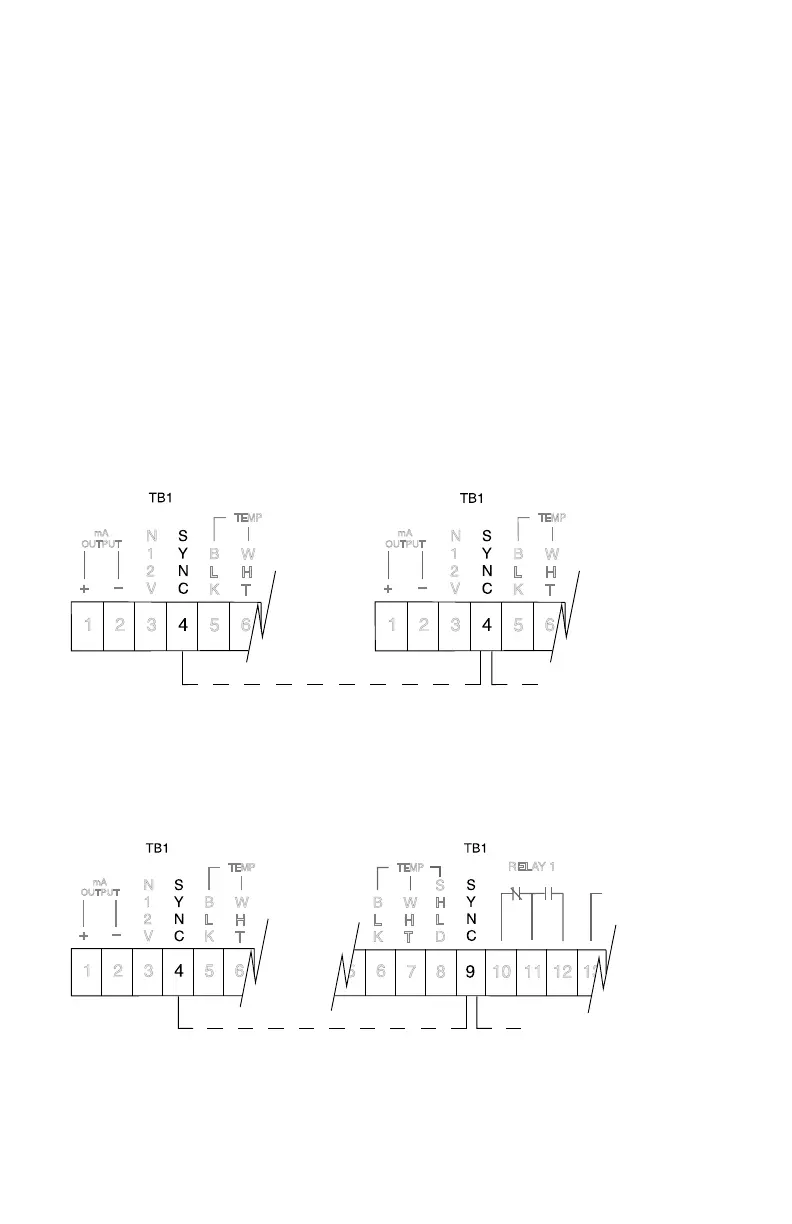

Synchronization of 2 to 8 MultiRanger Plus’s
(additional to basic wiring)
MultiRanger Plus #1
MultiRanger Plus #2
Synchronization of 2 to 8 MultiRanger / MultiRanger Plus’s
(additional to basic wiring)
MulitRanger Plus
MultiRanger
to next MultiRanger
TB1-9 or next
MultiRanger Plus
TB1-4
PL-443 3 – 6
