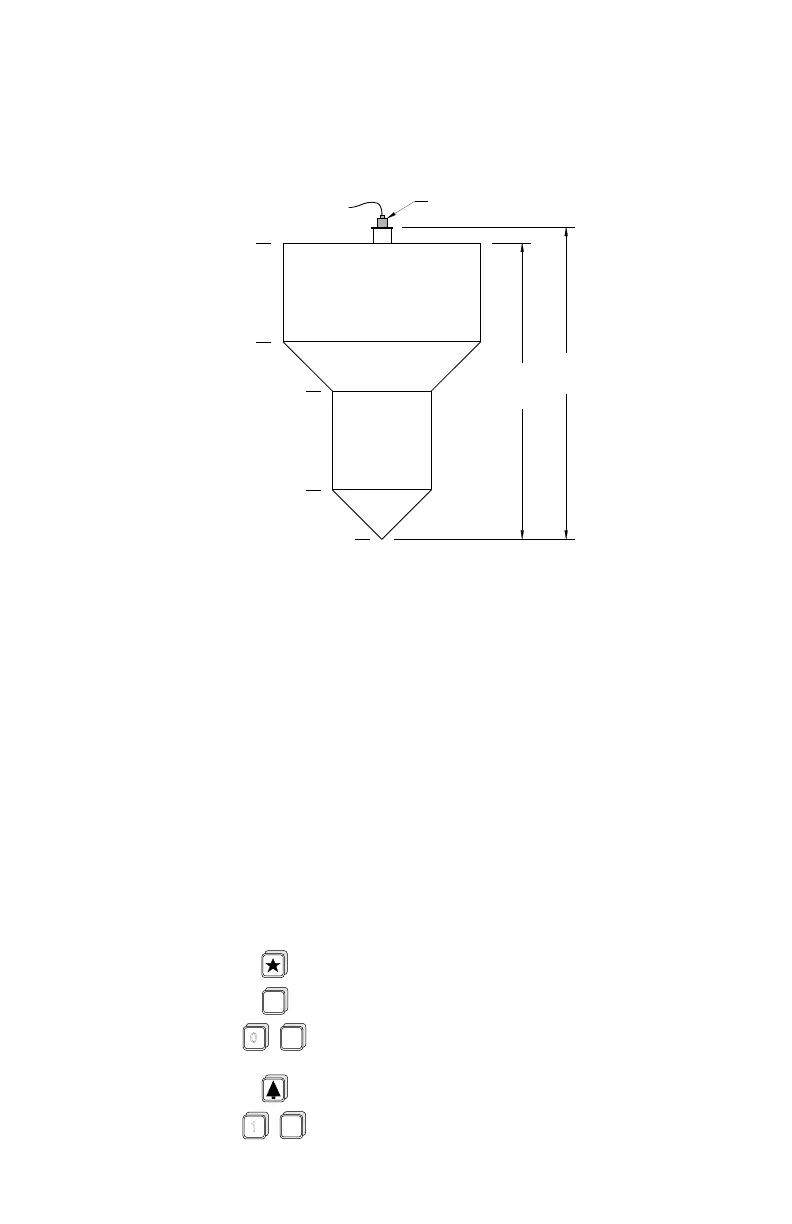

Custom Design Tanks Example ‘A’

The application is to measure the level of liquid in a custom designed tank. The tank

manufacturer specifies the following level versus volume data.

select :

P-1 enter option "1", units in metres

advance to :

P-2 enter option "1", material level

P-3 enter "6.5", empty distance to transducer

P-4 enter "6", span

P-5 enter ".5" near blanking distance

P-34 enter option "9" universal level vs volume

press display will show

H - 1

- - - -

0.0 0 0

H - 2

(then)

- - - -

1.0 0 0

transducer

P-3

6.5 m

158.9 m

@ 6 m

58.42 m

@ 4 m

29.12 m

4 m

@ 1m

P-4

6 m

0 m

@ 0 m

ALT

DISP

ENTER

PL-443 6 – 17
