Milltronics SL6 Series - Hydraulic Chuck Proximity Switch Adjustment; Hydraulic Tailstock Speed Adjustment

C HAPTER 6 - M AINTENANCE
41

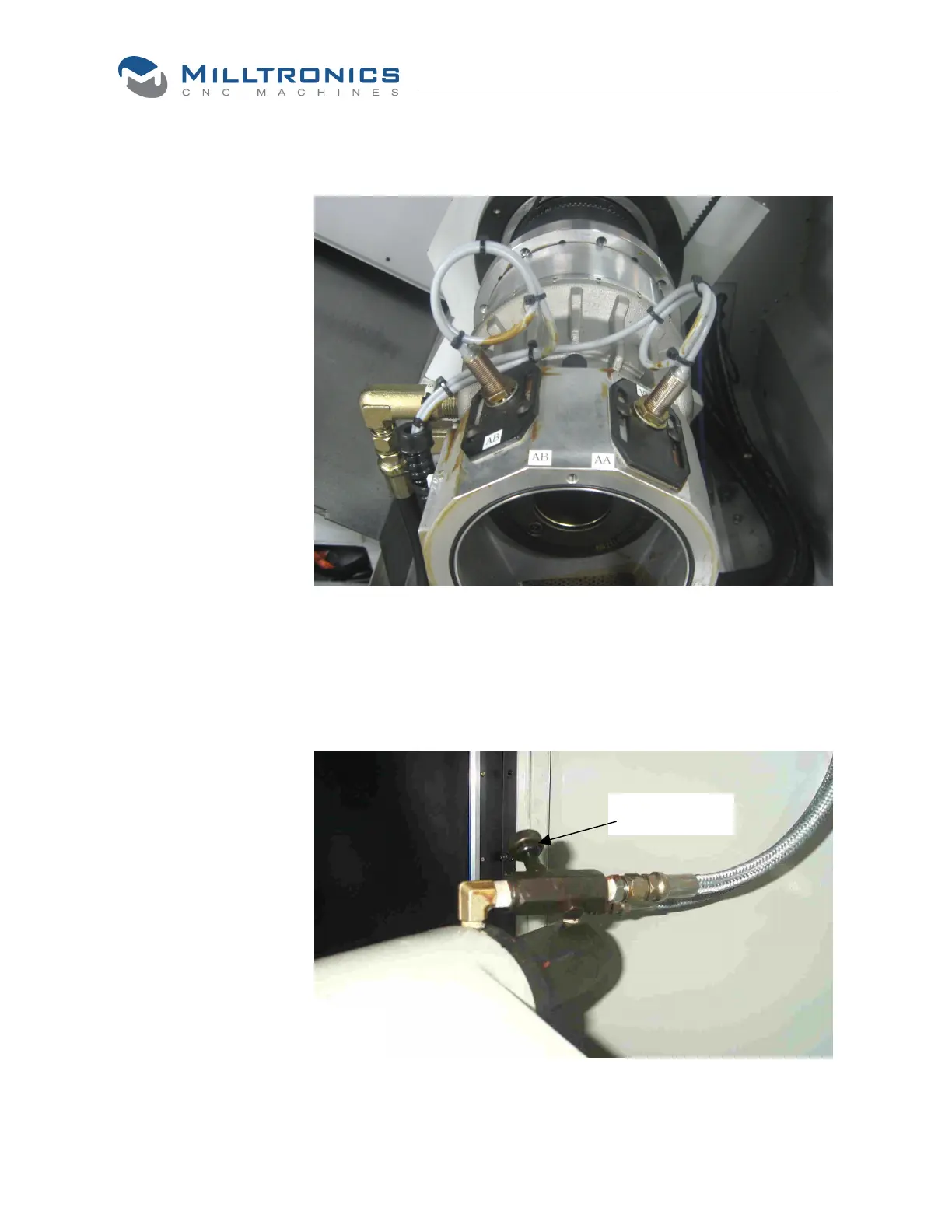

Hydraulic Chuck Proximity Switch Adjustment
The proximity
switches are used to
detect the end of the
drawbar stroke.
The switches should
be set to sense only if
a part is not clamped
during a clamping
operation.
Hydraulic Tailstock Speed Adjustment
Adjust the flow valve
to vary the speed of
the tailstock quill
in/out motion.
Flow valve
