Tray position indicator:
• The first digit indicates the encoder quota the PLC reads; after this reading, the tray position is expressed in
millimetres.
• The second digit indicates the next position the conveyor must reach according to the chosen working cycle.
Also in this case the quota is expressed in millimetres.

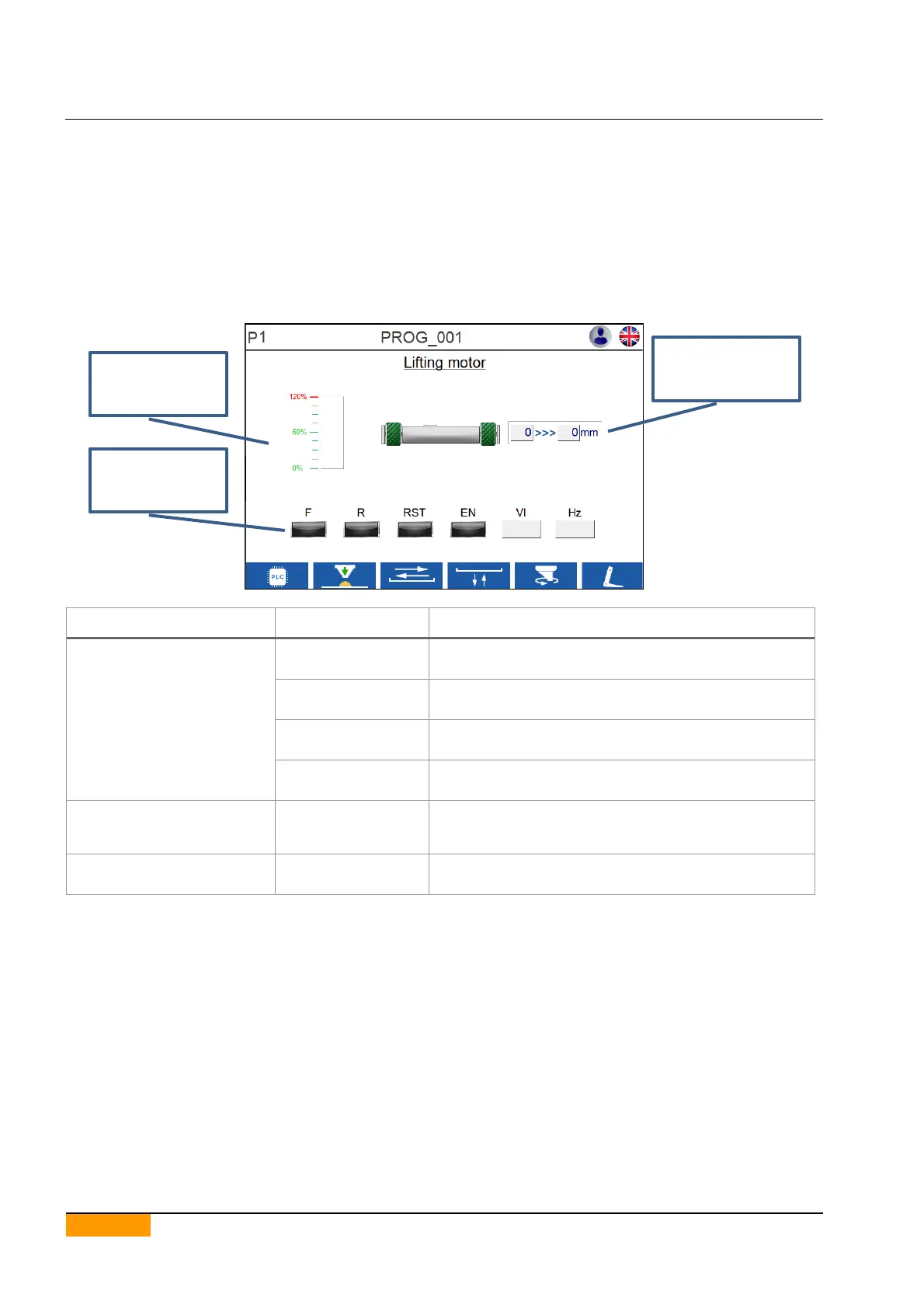

7.2.4. LIFTING MOTOR
This page shows the status of the lifting motor inverter.
Please refer to the wiring diagram for the meaning of each input.
Name
Symbol
Description
Digital inputs
F
Forward input.
R
Reverse input.
S1
S1 input, reset inverter.
S2
S2 input, inverter enable.
Analog inputs
VI
Inverter analog input, through which the PLC regulates
the rotation speed of the motor. Expressed in Volt.
Output frequency
Hz
Inverter output frequency.
Expressed in Hertz.
Table position indicator:
• The first digit indicates the encoder quota the PLC reads; after the zeroing phase it indicates the position of
the machine table as to the standard nozzles expressed in millimetres.
• The second digit indicates the next position the machine table must reach according to the selected working
cycle. Also in this case the quota is expressed in millimetres.
Conveyor position
Torque output
from the inverter
Inverter inputs
