MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
5.2.5 P.2
5.2.5 Checking Conduction of HDC FFC COM Line
1
2
3
4
5
6
7
8
 Procedure

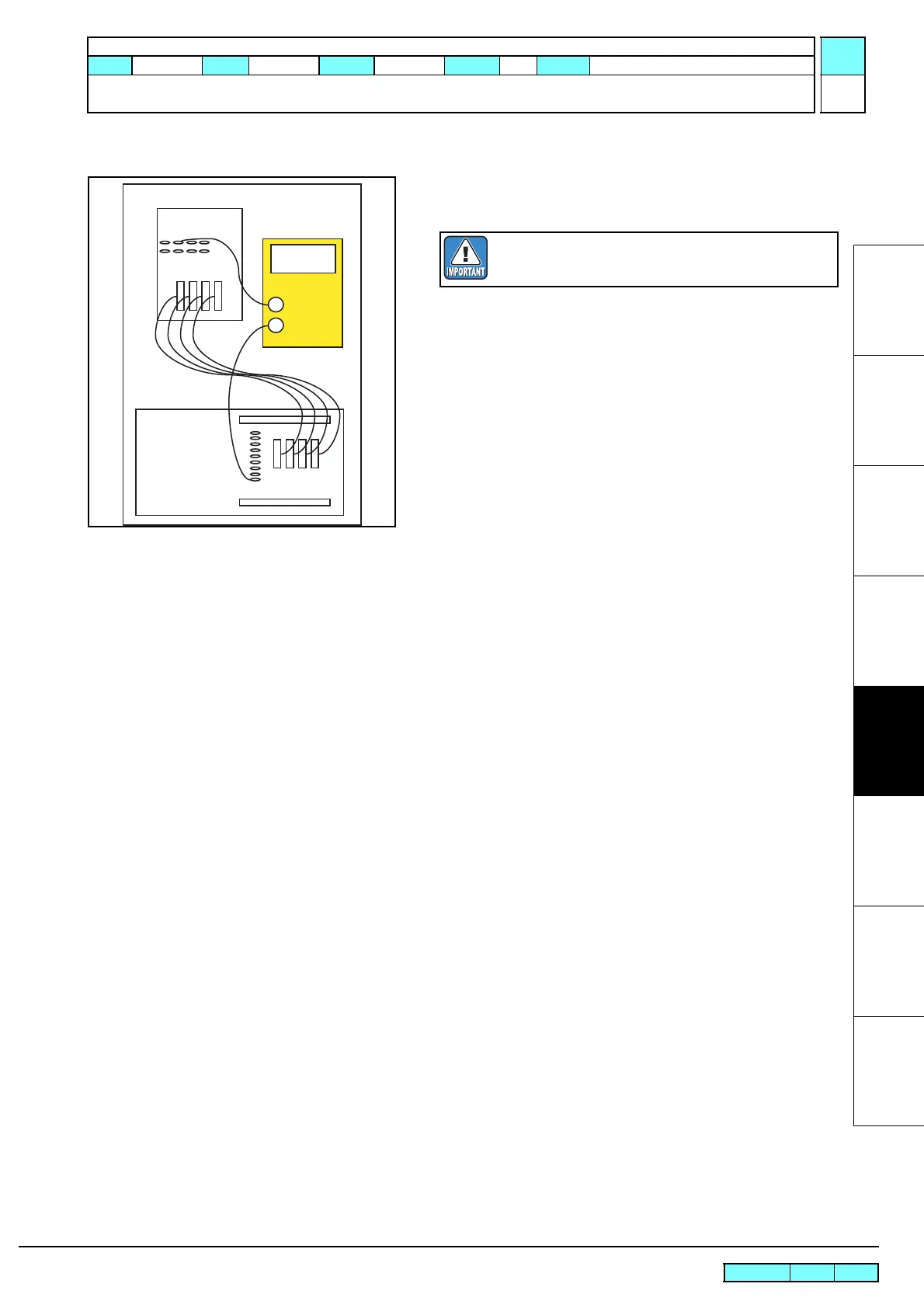

1. Check the conduction of HDC FFC COM line as the figure on
the left.
MainPCB
InkSliderPCB
Tester
1.6Ω
HDC FFC
The resistance undergoes a little bit change with the
probe location or temperature.
Maintenance Manual > Test Items > Other Test > Checking Conduction of HDC FFC COM Line
Model CJV30/TPC Issued 2009.06.30 Revised F/W ver. 1.00 Remark
