MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
5.2.6 P.1
1
2
3
4
5
6
7
8
R.1.1
Maintenance Manual > Test Items > Other Test > Checking Conduction of HDC FFC Data Line
Model CJV30/TPC Issued 2009.06.30 Revised 2010.11.05 F/W ver. 2.50 Remark
1.1
Rev.

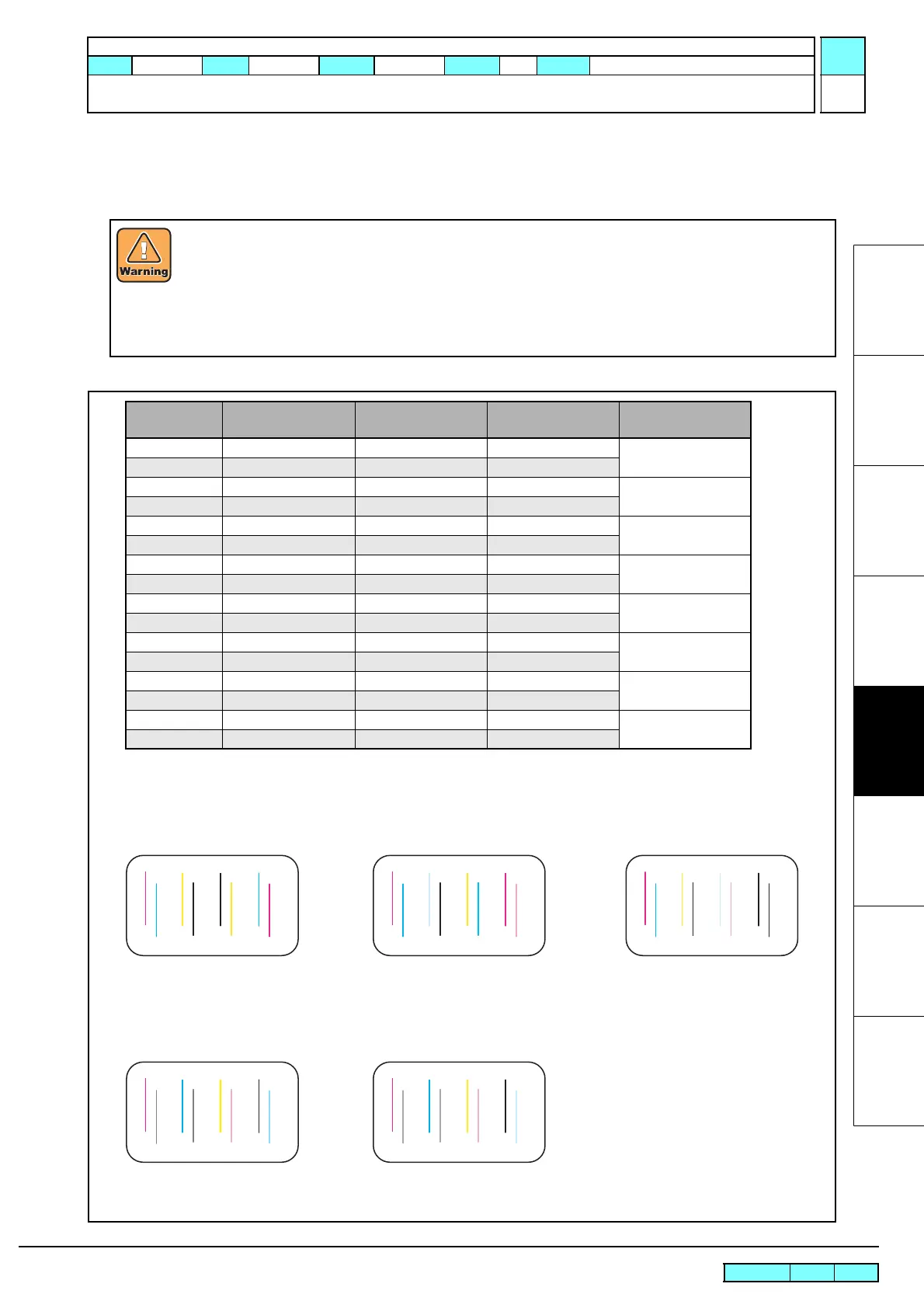

5.2.6 Checking Conduction of HDC FFC Data Line
 Outline
Check whether the HDC FFC data line has disconnection or poor contact or not.
After turning off the sub and main power switches in order, unplug the power code.
Check if no electric charge is remaining in the PCB.
Refer to the "4.5.2 Electric charge checking when replace the Electrical Parts"
It is very dangerous if sleep mode functions mistakenly during the operation.
Moreover, the PCB may be damaged in case electric charge still remains inside.
Also there is a possibility of electric shock because of high power voltage applied the high-pressure part
of the power supply PCB assy. Take care to avoid contact with it.
M Y K C
C K Y M
M Lc Y M
C K C Lm
M Y Lc W
C K Lm W
Signal IC pin on the
ink slider PCB
IC pin on the
main PCB
Normal conduction Nozzle line
SID1+ U8-(10) U46-(2) Less than 22ohms A*
SID1- U8-(9) U46-(3) Less than 22ohms
SID2+ U8-(14) U46-(6) Less than 22ohms B*
SID2- U8-(15) U46-(5) Less than 22ohms
SID3+ U8-(2) U46-(10) Less than 22ohms C*
SID3- U8-(1) U46-(11) Less than 22ohms
SID4+ U8-(6) U46-(14) Less than 22ohms D*
SID4- U8-(7) U46-(13) Less than 22ohms
SID5+ U9-(10) U47-(2) Less than 22ohms E*
SID5- U9-(9) U47-(3) Less than 22ohms
SID6+ U9-(14) U47-(6) Less than 22ohms F*
SID6- U9-(15) U47-(5) Less than 22ohms
SID7+ U9-(2) U47-(10) Less than 22ohms G*
SID7- U9-(1) U47-(11) Less than 22ohms
SID8+ U9-(6) U47-(14) Less than 22ohms H*
SID8- U9-(7) U47-(13) Less than 22ohms
 4-color ink set  6-color ink set  6-color + white ink set
A line C line E line G line
B line D line F line H line
A line C line E line G line
B line D line F line H line
A line C line E line G line
B line D line F line H line
*See below about nozzle lines.
M C Y K
Lk Lk Lm Lc
M C Y K
S W Lm Lc
 7-color ink set
 8-color ink set
A line C line E line G line
B line D line F line H line
A line C line E line G line
B line D line F line H line
