MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
6.2.9 P.2

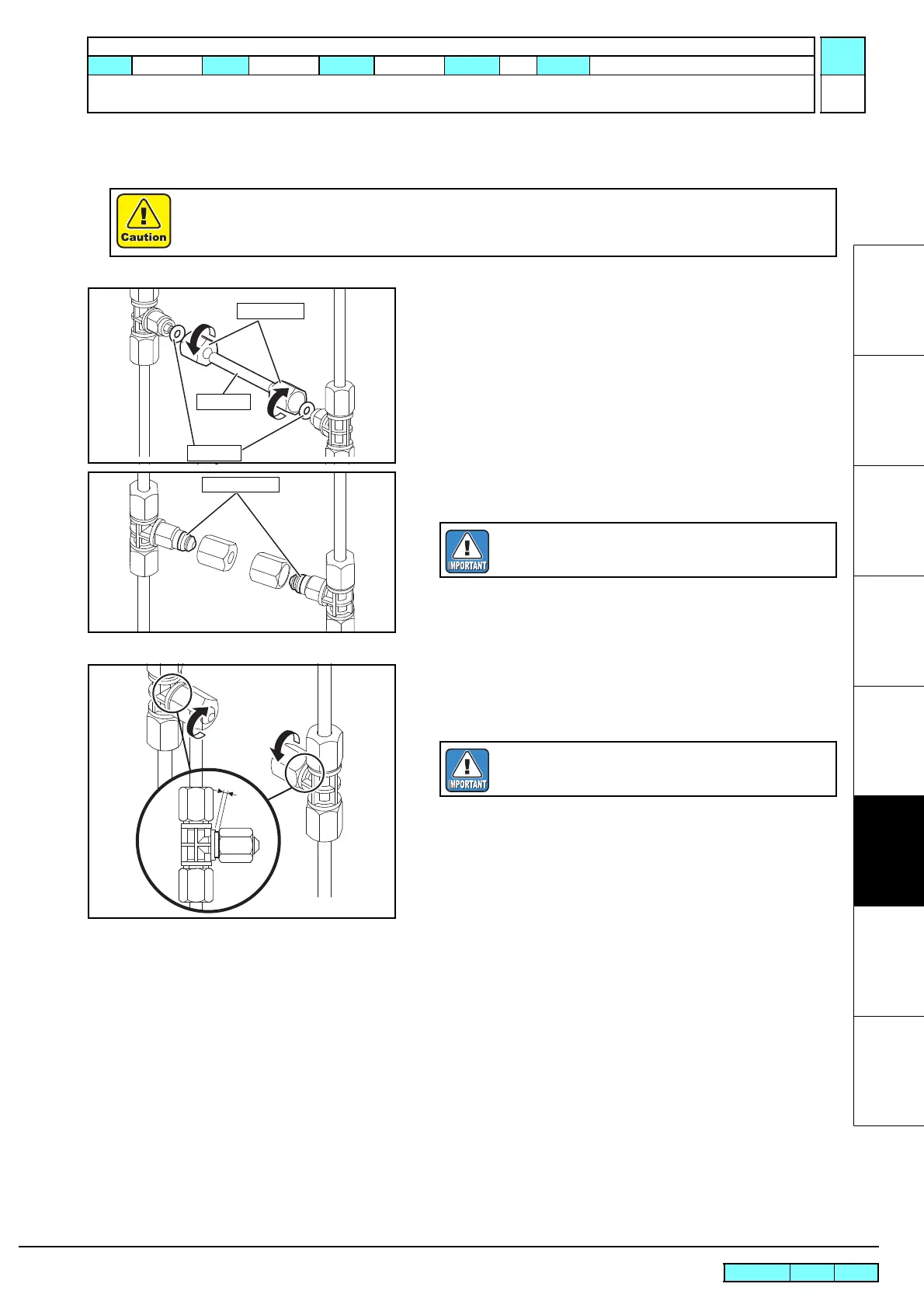

6.2.9 Changing Joint
1
2
3
4
5
6
7
8
 Work procedures
1. Execute [MACHINE SETUP] — [#ADJUST] — [HEAD
ADJUST] — [HEAD WASH] to discharge the ink. (See 4.2.7)
2. Remove the cartridge cover.
3. Loosen the joint screws and remove the tube and O-rings.
4. Put on the rubber plugs on the coupler.
5. Tighten the joint screws.
Leave a space of around 0.5 mm between the coupler and screw.
Use protection glasses and gloves during works.
Depending on the working condition, ink may reach your eyes or your skin may be roughed due to ink.
Joint Screw
Tube
O-ring
Rubber Plugs
Make sure that O-ring is not remaining in the joint
screws.
mm5.0
When clamping the joint screws, do not clamp them
too much.
R.1.0
Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Changing Joint
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.
