Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Changing Joint
Model CJV30/TPC Issued 2008.08.04 Revised 2010.11.05 F/W ver. 2.50 Remark
1.2
Rev.
6.2.9 Changing Joint
 Outline

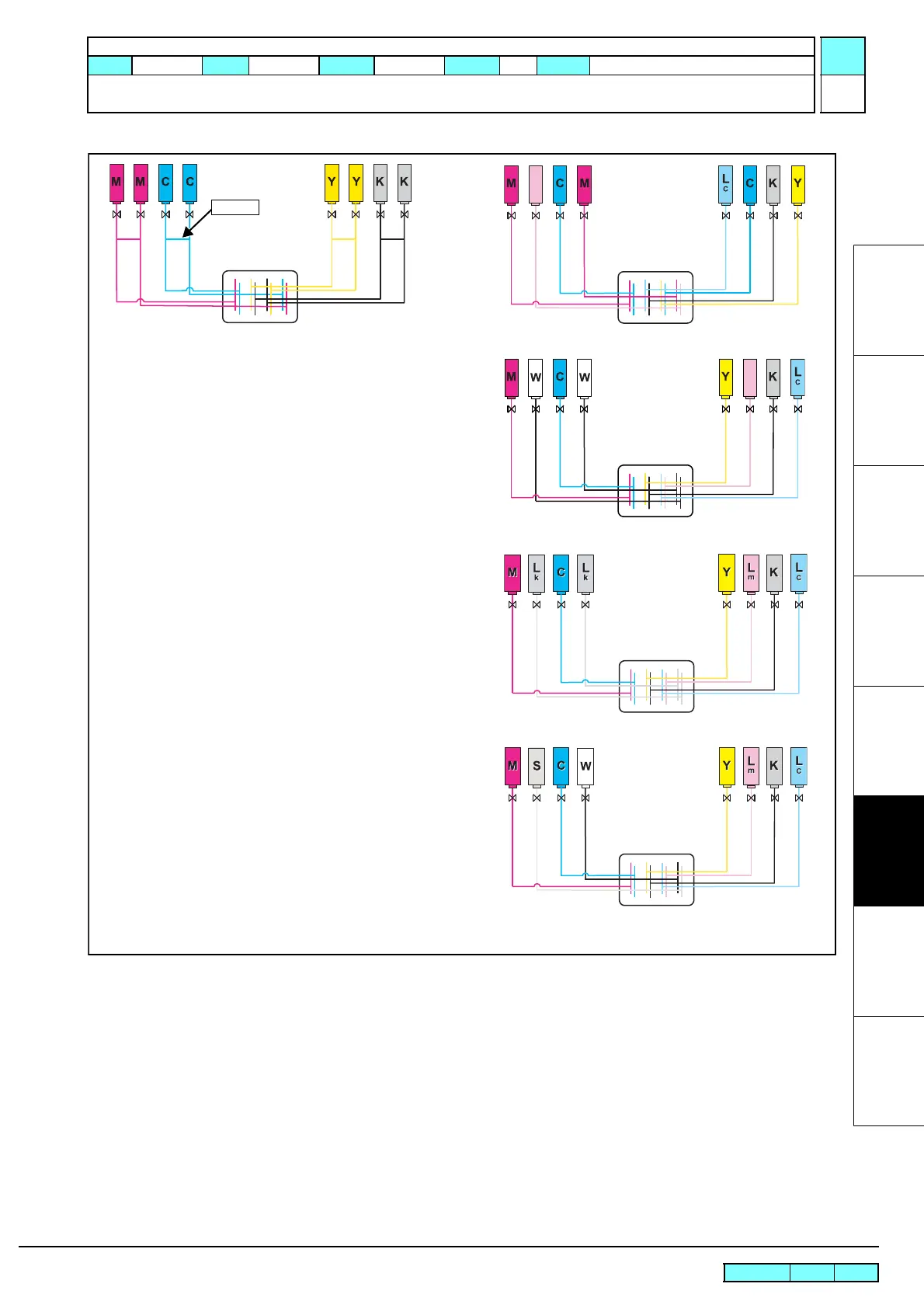

The above three ways of setting up the ink supply channel are possible in this machine.
Four colors are set at factory shipment, but it is possible to change to other colors by coupler opening and closing.
Following is a description of procedures to change to six or more colors.
L
m
Ink supply path (4-color fill: at factory shipment)
Ink supply path (6-color fill)
L
m
SS21 Ink supply path (6-color+white fill)
Joint
Eco-PA1 Ink supply path (7-color fill)
ES3 Ink supply path (8-color fill)
