6.4.1 X-axis Motor
1
2
3
4
5
6
7
8

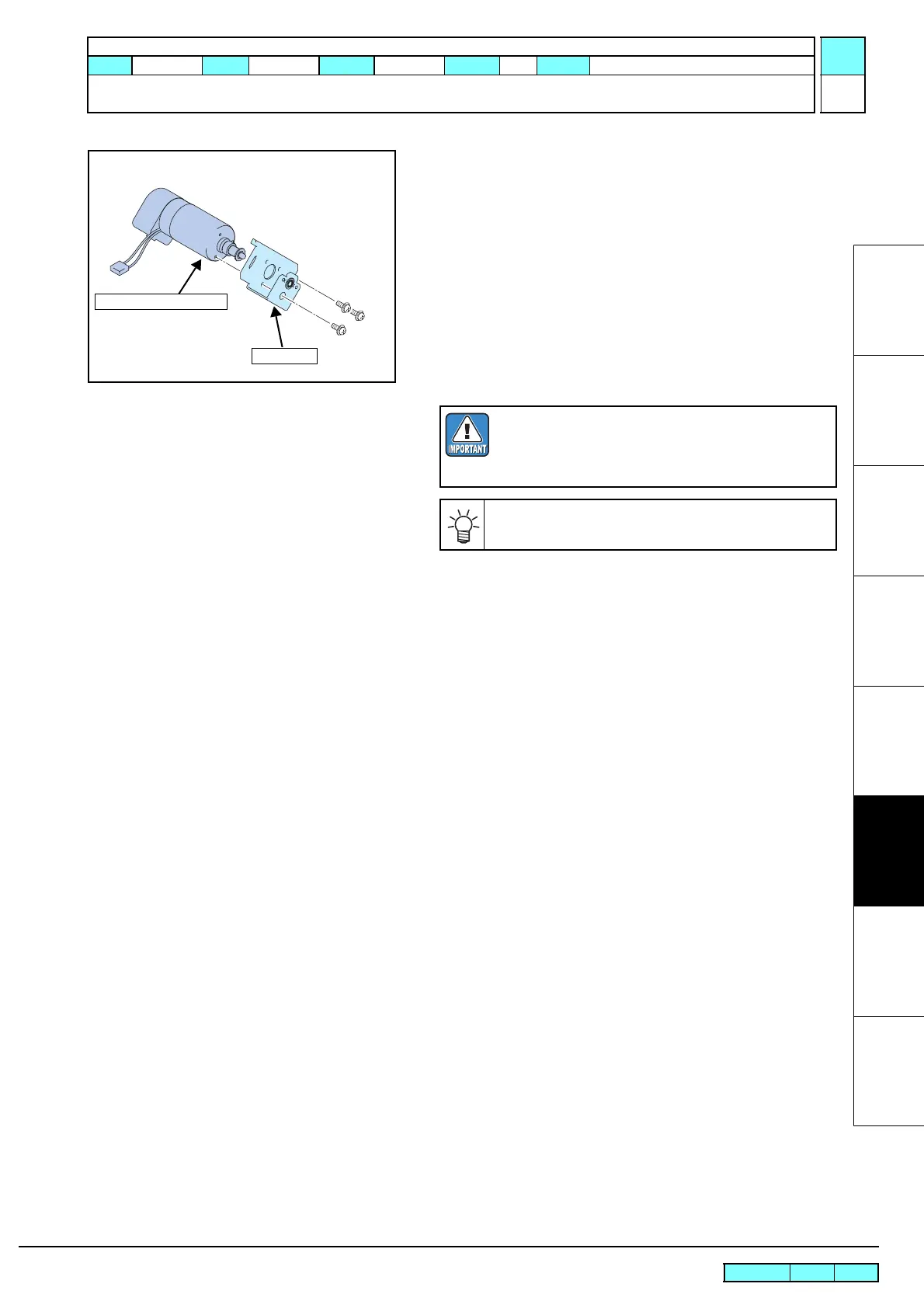

6. Remove the XM BKT screws and then the servo motor assy (X).
7. Reverse the disassembly procedure for reassembly.
Servo Motor Assy (X)
XM BKT
After mounting the motor, if the hunting sound is
heard when the motor drives, make adjustments
making reference to the following:
• Adjusting the X-axis motor current
The belt tension does not need to be adjusted.
