MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
6.4.1 P.1
1
2
3
4
5
6
7
8
R.1.0
Maintenance Manual > Disassembly and Reassembly > Drive System > X-axis Motor
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

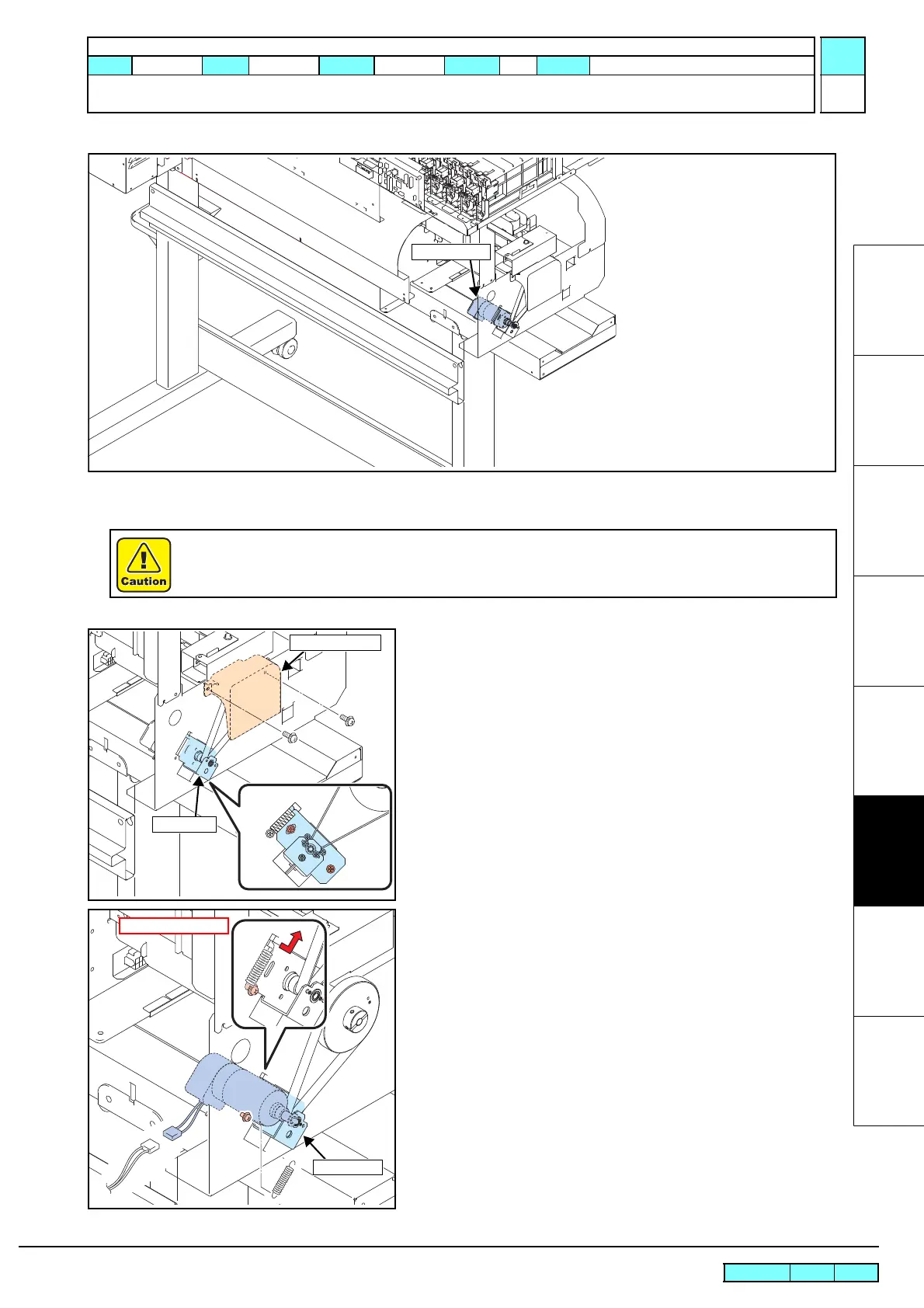

6.4.1 X-axis Motor
 Work procedures
1. Remove the following covers.
• Maintenance Cover L
• Cartridge cover
• Left cover
2. Remove the X pulley cover.
3. Remove the screws that fix the XM BKT.
4. Disconnect the X-axis motor connector.
5. Remove the spring, and then remove the XM BKT and X-axis
motor from the main body.
Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.
X-axis Motor
X Pulley Cover
XM BKT
XM BKT
Remove the spring
