6.4.3 Y Drive Pulley
1
2
3
4
5
6
7
8

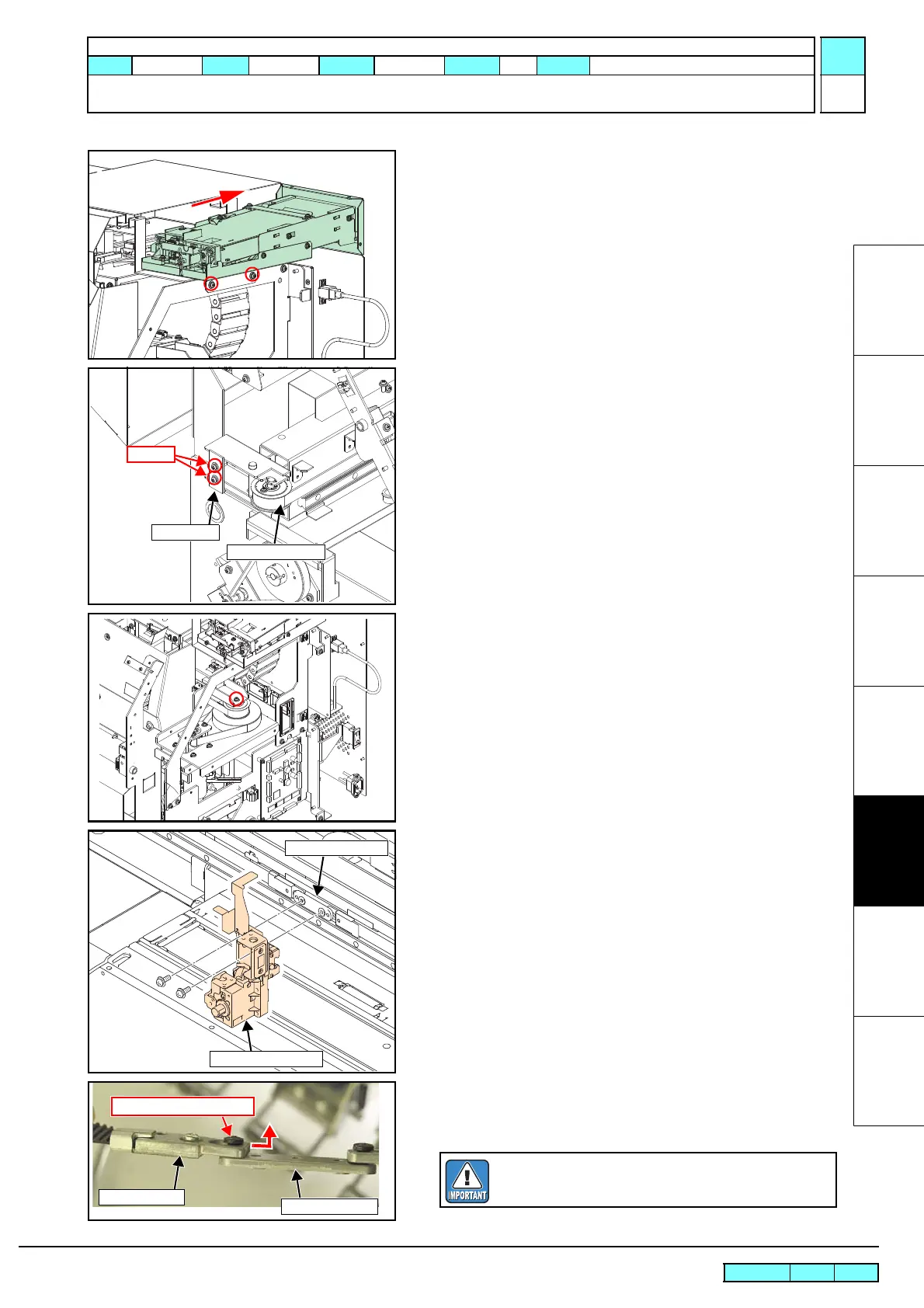

4. Remove the screws that hold the washing cartridge assy in
place, and slide the washing cartridge assy towards the back.
5. Loosen the screws from the Y-SP plate on the left side of the
main body, and release the tension of the Y drive belt.
6. Remove the screw from the top of the Y drive pulley.
7. Remove the traction head assy screws and separate them from
the belt holder.
8. Slide out the connection point of the Y drive belt, and remove
either the left or right belt holder 1 from the belt holder.
Y Drive Belt 33
Y-SP Plate
Loosen
Traction Head Assy
Belt Holder
Do not remove the screws.
Belt Holder 1
Belt Holder
Do not remove the Y drive belt from the slider.
