MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
6.4.7 P.2

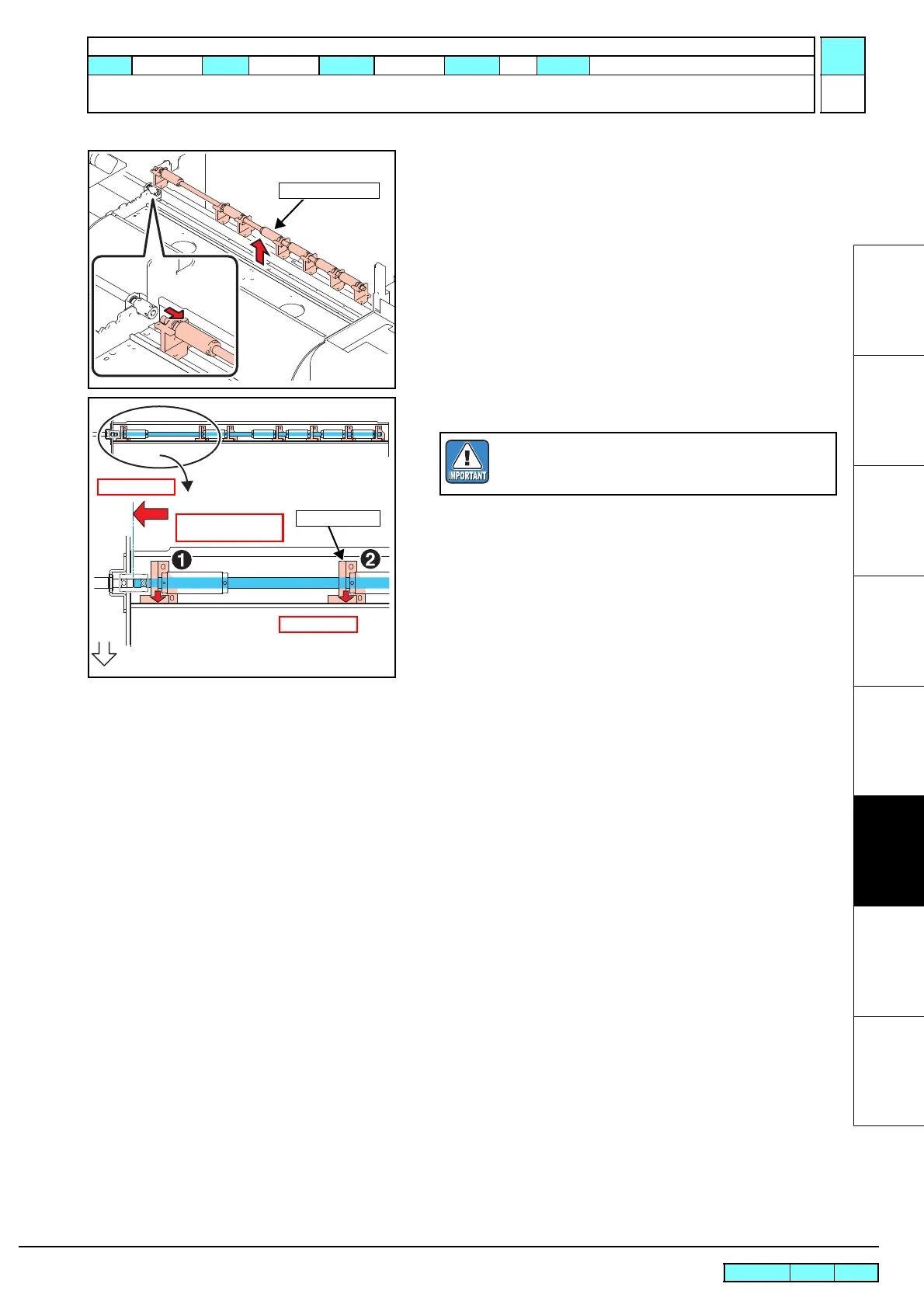

6.4.7 GR Roller Assy
1
2
3
4
5
6
7
8
5. Disconnect the left end of the shaft from the PF coupling and
remove the GR roller assy.
6. Reverse the disassembly procedure for reassembly.
GR Roller Assy
BR Holder 30
Press against
Front of the printer
Press against
Tighten the screws
in order from left
For installation, tighten the screws in order, starting
with the leftmost one while pushing the shaft to the
left and pushing the BR holder 30 toward the front.
R.1.1
Maintenance Manual > Disassembly and Reassembly > Drive System > GR Roller Assy
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.
