Maintenance Manual > Disassembly and Reassembly > Drive System > Take-up Motor
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.
6.4.8 Take-up Motor
 Work procedures

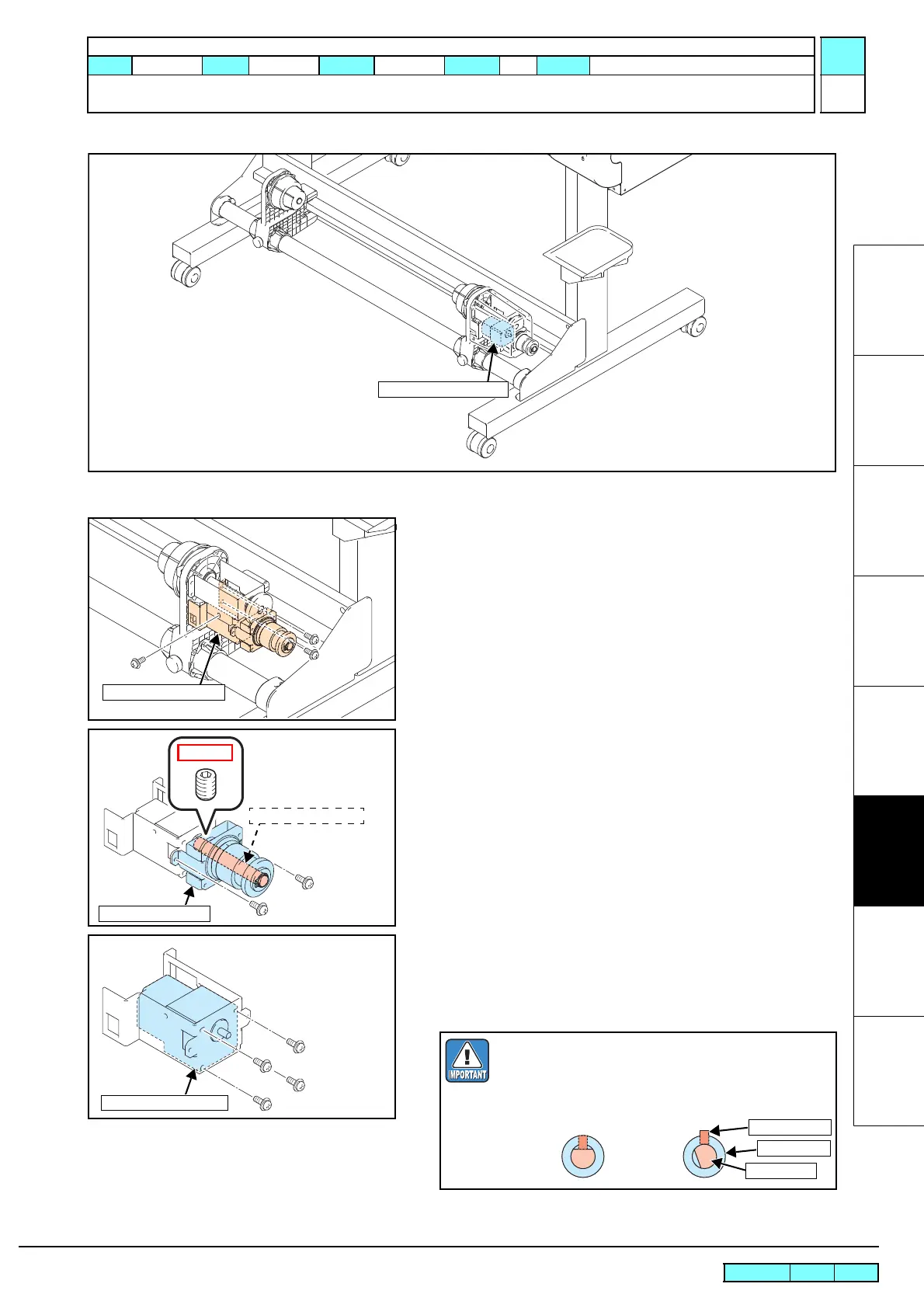

1. Remove the take-up cover (S).
2. Disconnect all connectors on the take-up motor PCB assy.
3. Remove the M motor BKT (S)-Si from the Roll base 2(BR).
4. Loosen the fixing screws that connect the motor shaft and M
gear shaft (S)-Si and then remove the M gear BKT (S)-Si.
5. Remove the brushless motor SK.
6. Reverse the disassembly procedure for reassembly.
Brushless Motor SK
M Motor BKT (S)-Si
Loosen
M Gear BKT (S)-Si
M Gear Shaft (S)-Si
Brushless Motor SK
When fixing the motor shaft and M gear shaft (S)-Si
with fixing screws, be sure to tighten the screws at
the plane port of the motor shaft D cut point.
<Good example> <Bad example>
Fixing Screw
M Gear shaft
Motor Shaft
