MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
6.4.9 P.1
1
2
3
4
5
6
7
8
R.1.0
Maintenance Manual > Disassembly and Reassembly > Drive System > C Connecting Hook
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

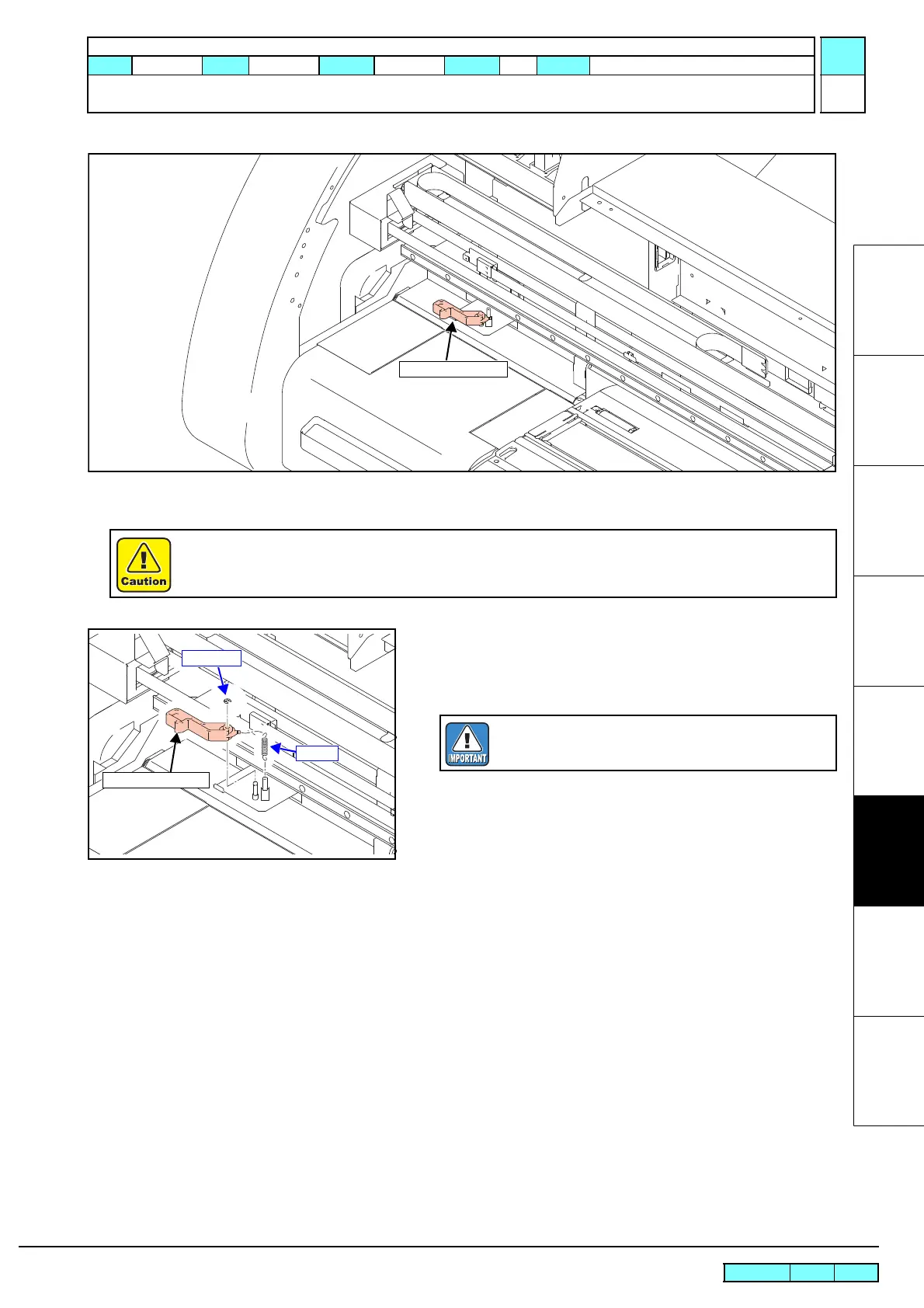

6.4.9 C Connecting Hook
 Work procedures
1. Move the cut head carriage on the platen.
2. Remove the spring and E-ring to take off the C connecting hook.
Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.
C Connecting Hook
C Connecting Hook
Spring
E-ring
Take care not to lose the spring and E-ring.
