MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
6.4.10 P.1
1
2
3
4
5
6
7
8
R.1.0
Maintenance Manual > Disassembly and Reassembly > Drive System > P Head Connecting Hook
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

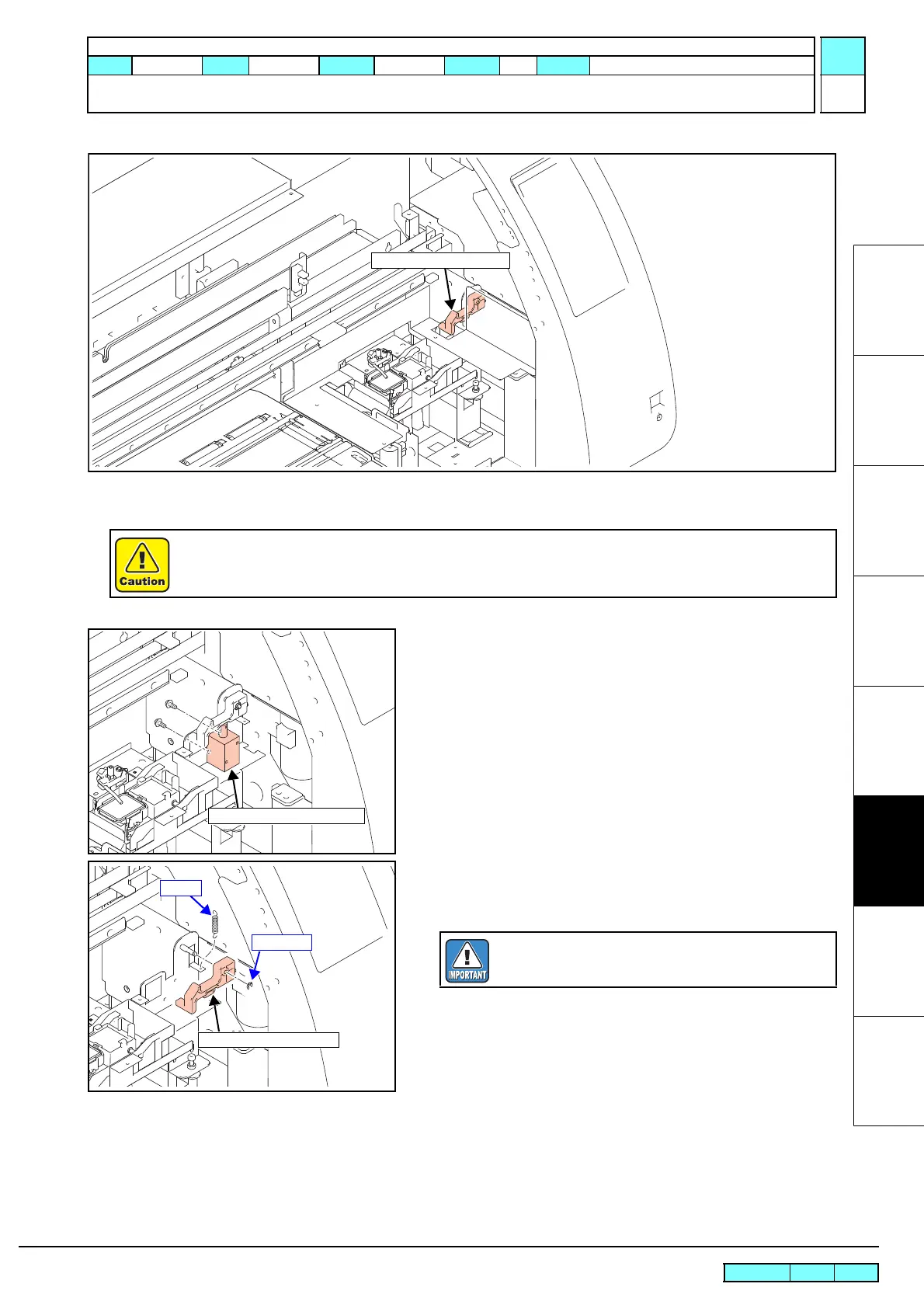

6.4.10 P Head Connecting Hook
 Work procedures
1. Remove the following covers.
• CY Cover F
• Station Cover U
• C Station Cover 2
• KB Cover
2. Remove P head lock solenoid assy from the CP station base.
3. Remove the spring and E-ring to take off the P head
connecting hook.
Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.
P Head Connecting Hook
P Head Lock Solenoid Assy
P Head Connecting Hook
Spring
E-ring
Take care not to lose the spring and E-ring.
