© 2009 MIMAKI ENGINEERING CO.,LTD.
7.2.1 P.2

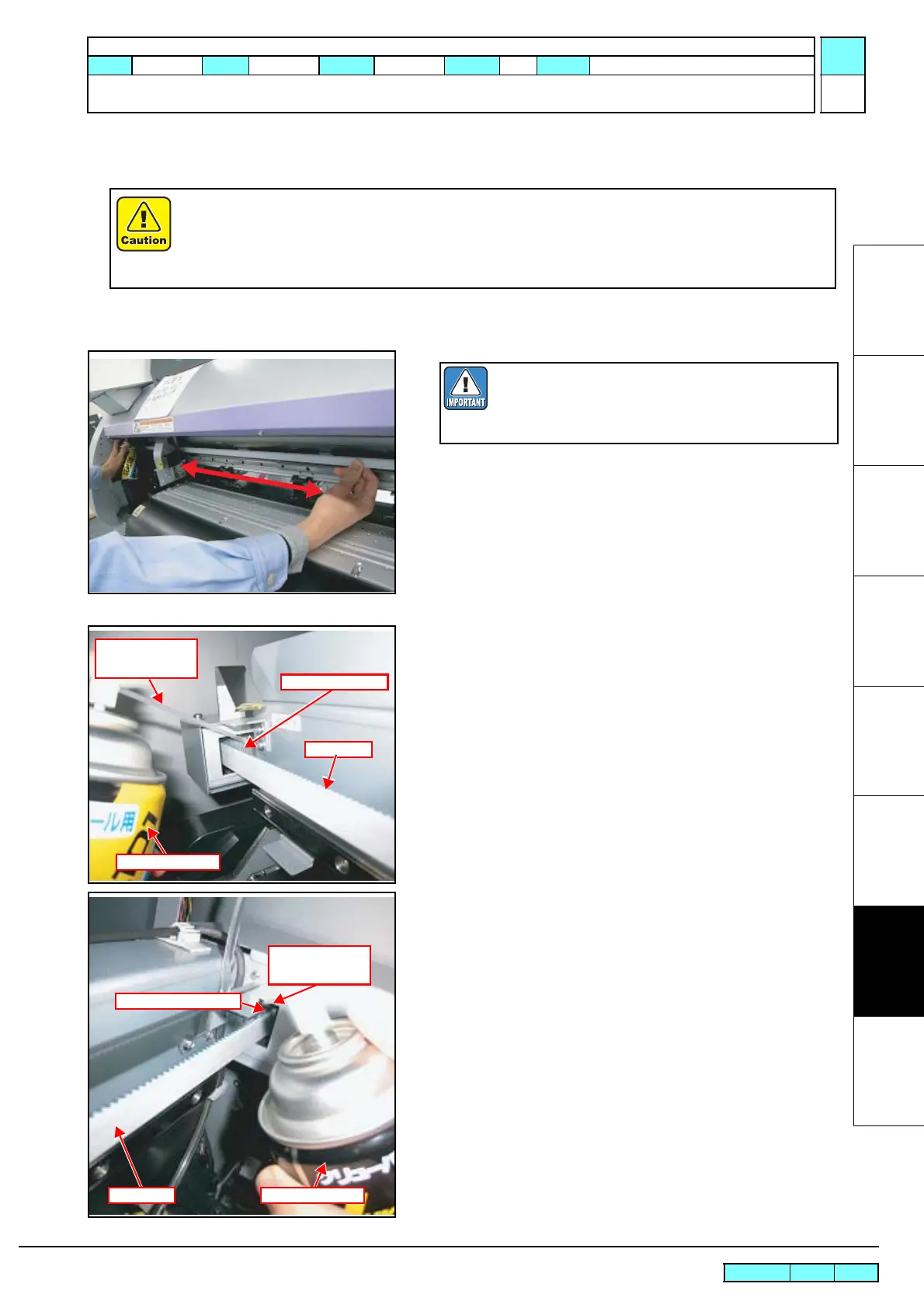

7.2.1 Y Drive Belt Noise
1
2
3
4
5
6
7
8
Procedure
When using the recommended spray grease [SEALUB L101]
1. Set the long nozzle attachment to the spray grease.
2. Move the joint unit to the left end of the platen.
3. While moving the white belt to the right (rotating the pulley),
spray the grease to the Y-T pulley (Y tension pulley).
4. When the joint unit reaches the right end, move the white belt to
the left and spray the grease to the Y drive pulley.
Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.
At work, make sure not to attach fingerprints or oil or grease to the linear encoder scale and take a great
care not to break or scratch it. (If dirt is attached, clean it with mild detergent.)
In case of using spray grease, the mist may attach to the media. Check there is no media around or on the
machine before operation.
Guideline for Spraying
Spray the grease while moving the white belt so that
the joint unit will move from one end to the other at
the speed of 30cm/s.
White Belt
Y-T Pulley ASSY
Spray Grease
Long Nozzle
Attachment
Y Drive Pulley ASSY
Spray Grease
Long Nozzle
Attachment
White Belt
R.1.0
Maintenance Manual > Troubleshooting > Detailed Methods of Coping with the Malfunctions > Y Drive Belt Noise
Model CJV30/TPC Issued 2008.12.06 Revised F/W ver. 1.00 Remark
1.0
To Next Page
