9 Programming menu
Note: Throughout the programming bar code menus, the factory default settings are indicated with
asterisks (*).

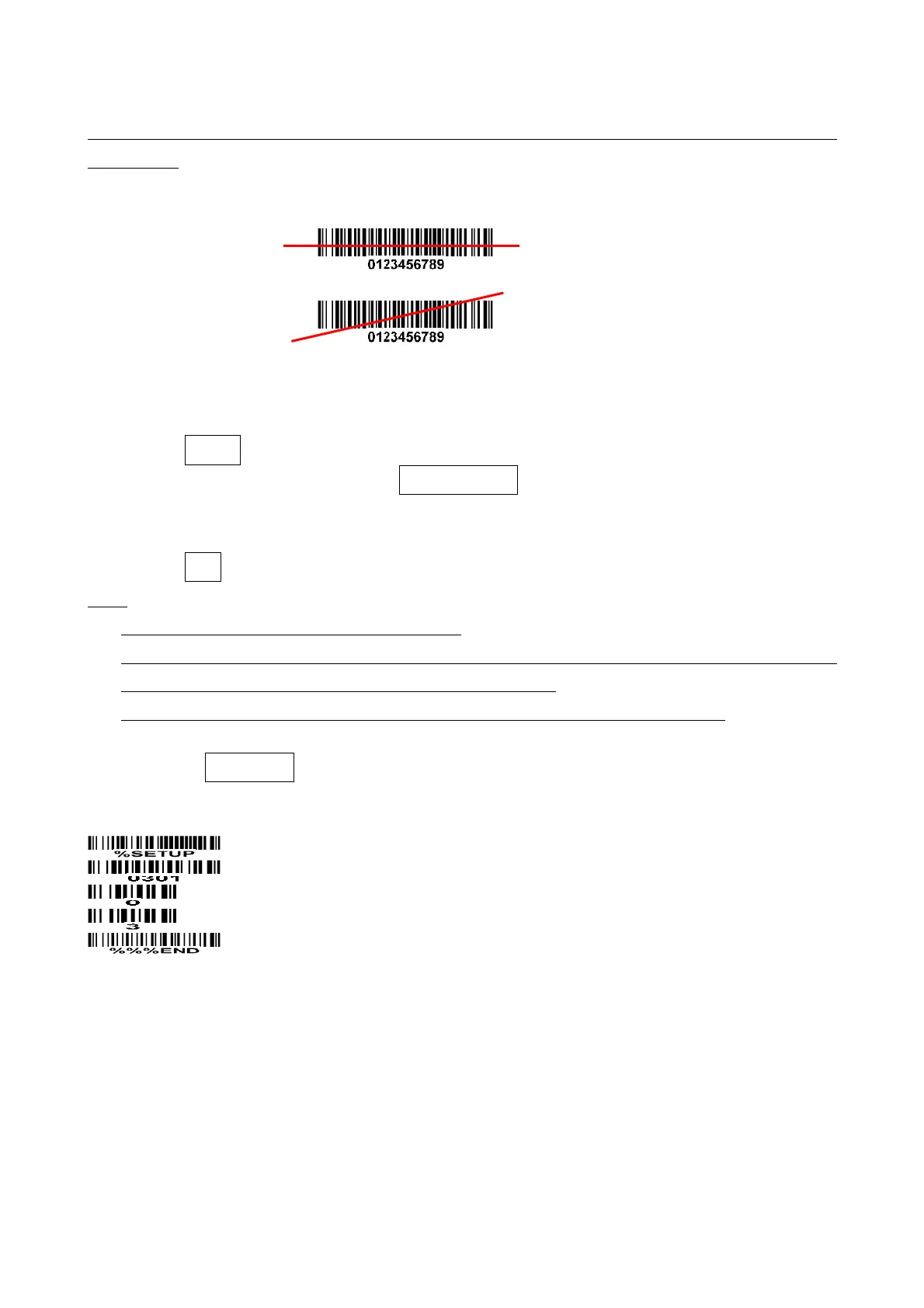

When the scanner is scanning, ensure the scan line crosses every bar and space of the symbol.
9-1 Example: Programming instruction
The steps of programming are:
1. Scan the SETUP bar code on the parameter setting part.
2. Enter the option mode by scanning the Option bar code.
3. To the right of the option barcode, the necessary alphanumeric inputs are listed. See
18
Configuration alphanumeric entry barcode
.
4. Scan the END bar code, listed on the lower right hand corner of each parameter setting part.
Note:
1) Only one parameter can be setup at each time.
2) During the process of programming, LED is lighting to indicate the programming correctness. LED
will go off if any incorrect programming operation performed.
3) After each successful programming, LED will go off and the scanner will beep twice.
Example: to set Flow control to be XON/XOFF.
Steps: Scan the following barcodes in order.
