2-5 Introduction to installation
Note: If any of the below operation is incorrect, turn off the power immediately and check the image
platform for any improper connections. Go through all steps again.
2-5-1 Installation - RS-232
1. Switch off the host.
2. Attach the phone jack connector of the RS-232 cable to Host interface on the image platform.
3. Connect another end of the RS-232 cable to the serial port (PIN 9) on the device.
4. If the host does not have power supply (on PIN 9), connect the external power supply (5 V DC
adapter) to the RS-232 cable.
5. Switch on the host. If connect properly, the beeper and the LED of the image platform will indicate.

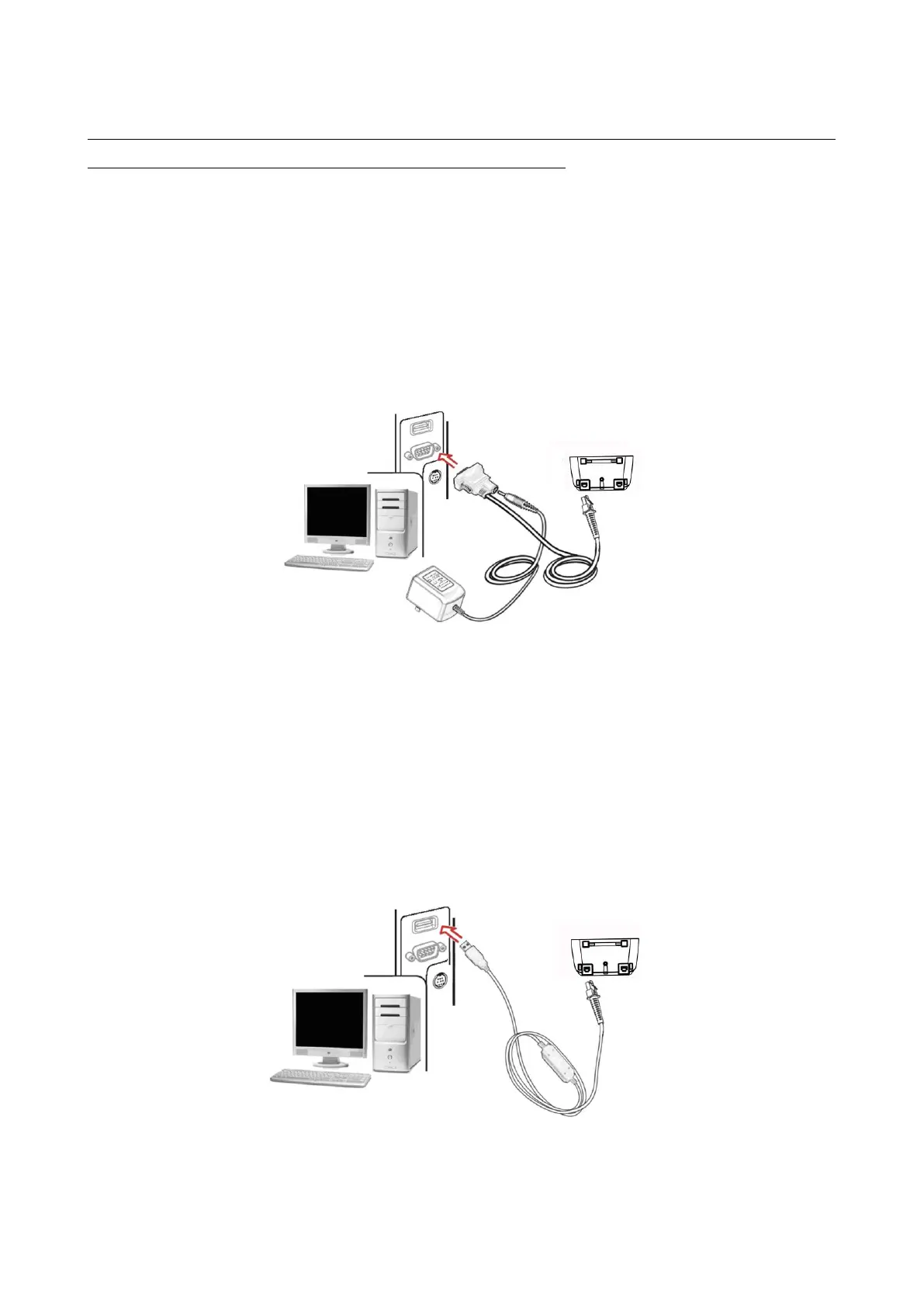

Figure 2-11 Installation of RS232 cable
2-5-2 Installation - USB
The image platform attaches directly to a USB host.
1. Attach the phone jack connector of the USB cable to the Host interface on the image platform.
2. Connect another end of the USB cable to an available USB port of the Host.
3. If connect properly, the beeper and the LED of the image platform will indicate.
4. Windows OS will automatically detect the USB device.
Figure 2-12 Installation of USB cable
