5-45

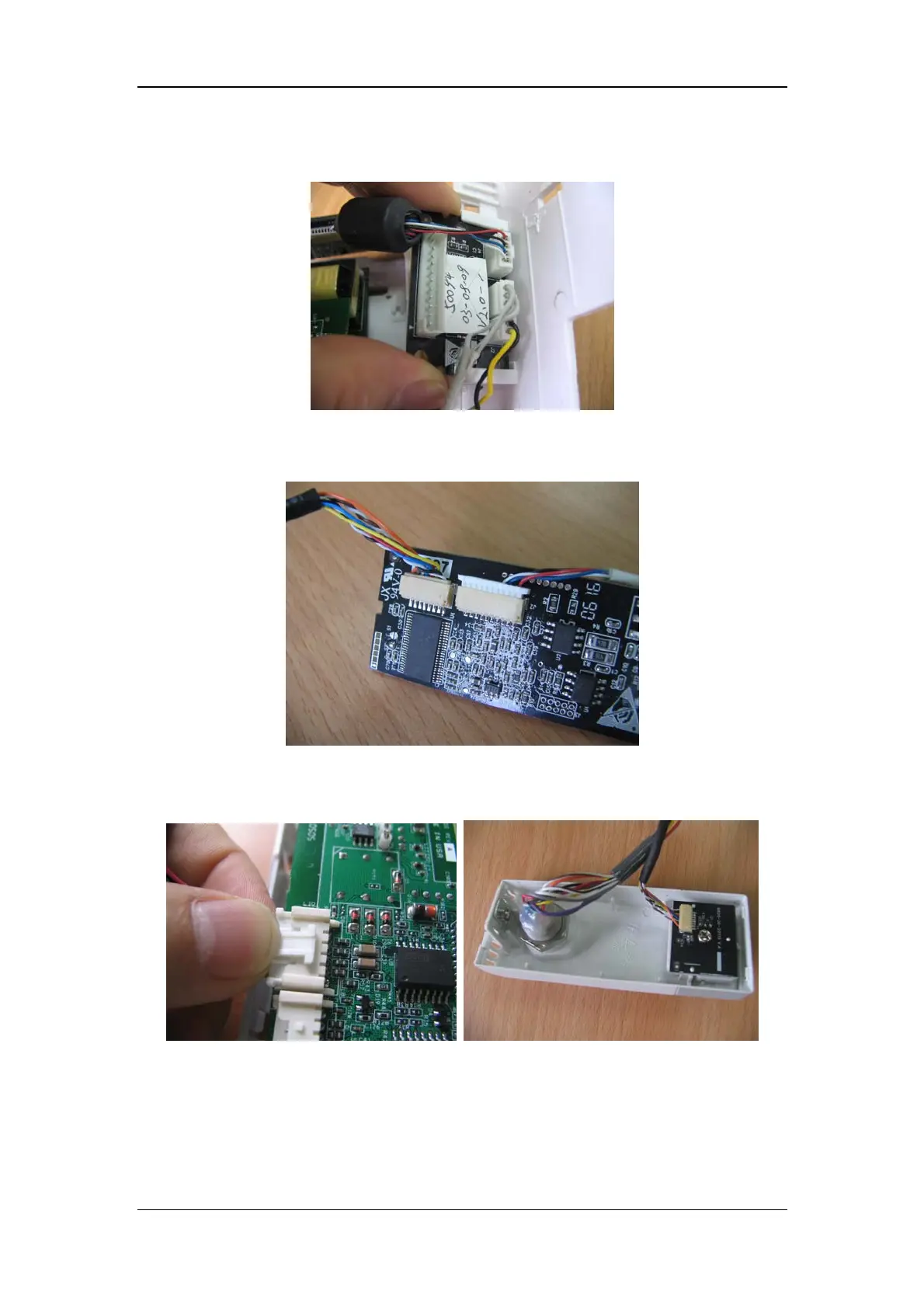

6. Take out the non-insulated power board and disconnect all the cables from it.
7. Take out the infrared communication board and disconnect all the cables from it.
8. Disconnect all the cables on the ICG board and take off it with the front cover.
