Mindray BeneView T8 - Parts

6-1
6 Parts
6.1 Introduction
This section contains the exploded views and parts lists of the main unit, satellite module
rack and parameter modules of the patient monitor. It helps the engineer to identify the parts
during disassembling the patient monitor and replacing the parts.

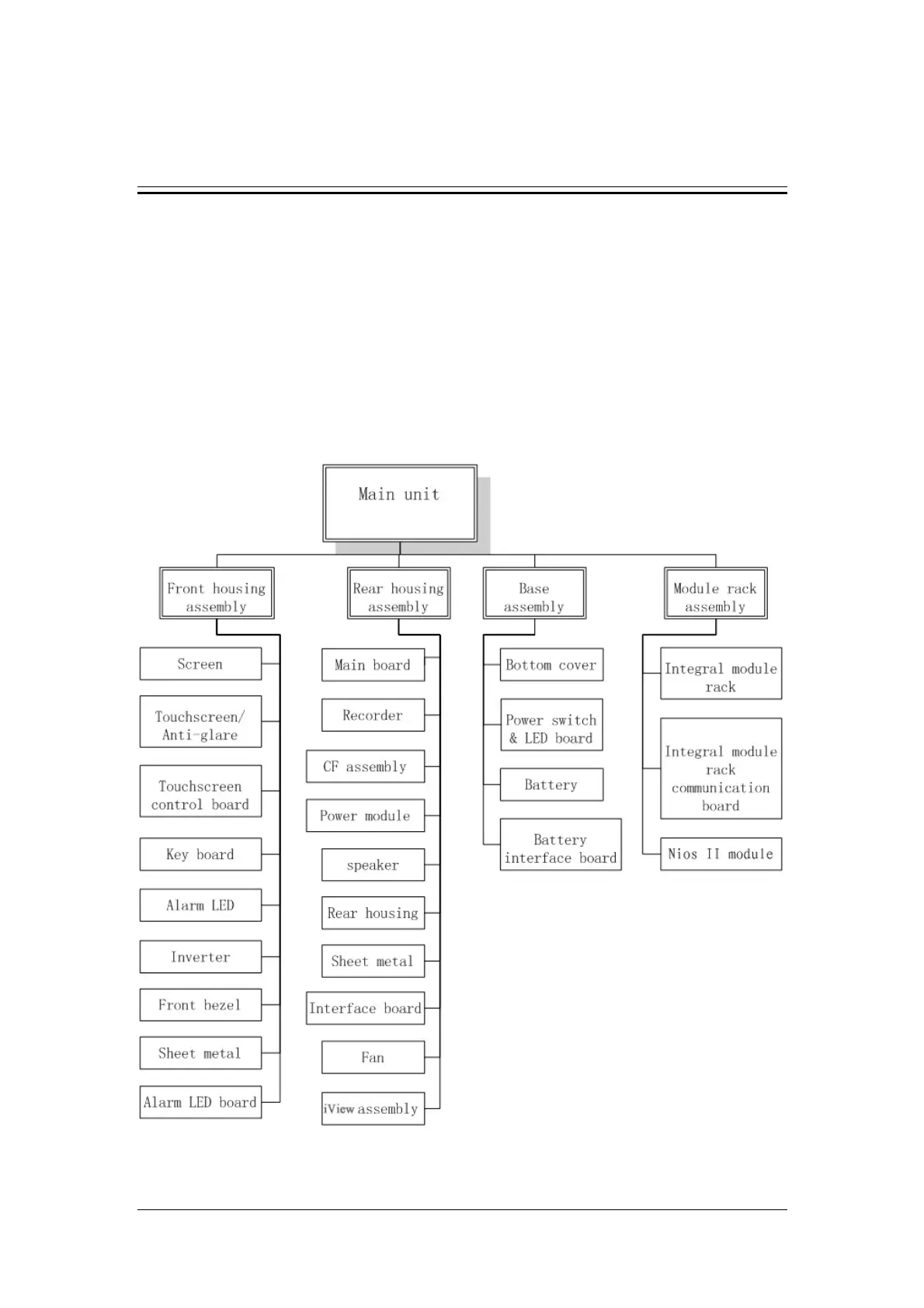

Hardware architecture of the main unit is shown below:
