6.6.5 Main Support Assembly (T8/T9)

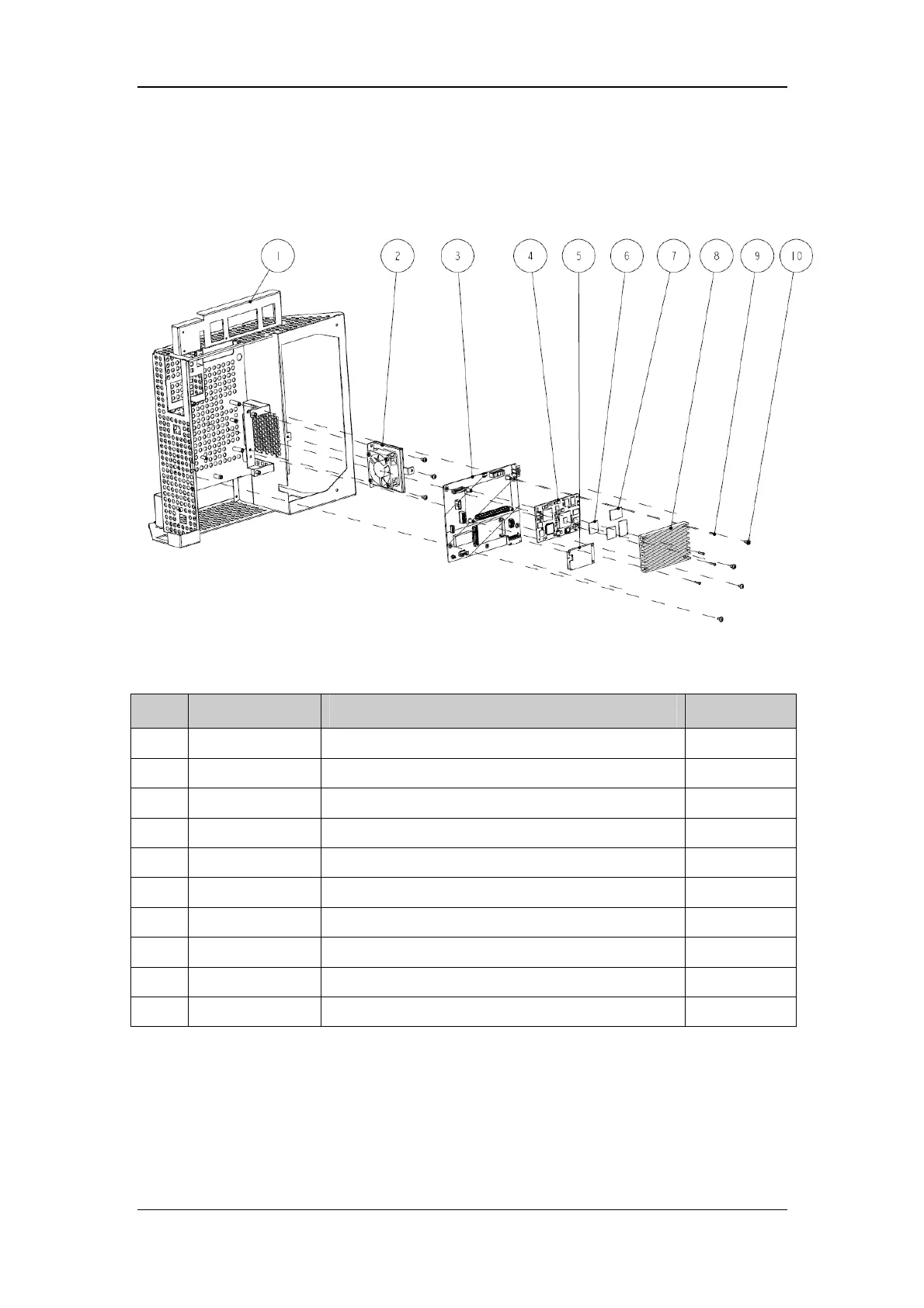

Exploded View
Parts List
SN P/N Description Qty
1 6800-20-50215 Main support 1
2 6800-30-50509 Fan assembly 1
3 051-001300-00 6800 COME CIS Motherboard PCBA 1
4 023-000570-00 COM N2600 NM10 DDR3 onboard 2GB 1
5 023-000544-00 SSD 128GB MLC mSATA 1 (Optional)
6 047-009148-00 Thermal Pad/Chomerics/3.0/17*17*1 2
7 047-009104-00 Thermal Pad/Chomerics/3.0/23*15*1 2
8 045-000781-00 PC heatsink of iView 1
9 M04-051020--- Countersunk flat head screw, M2×10 4
10 M04-004012--- Pan head screw with washer, M3×6 7
To Next Page
