Mindray BeneView T8 Service Manual

5-46
5.6.2 Disassembling CO
2
Module

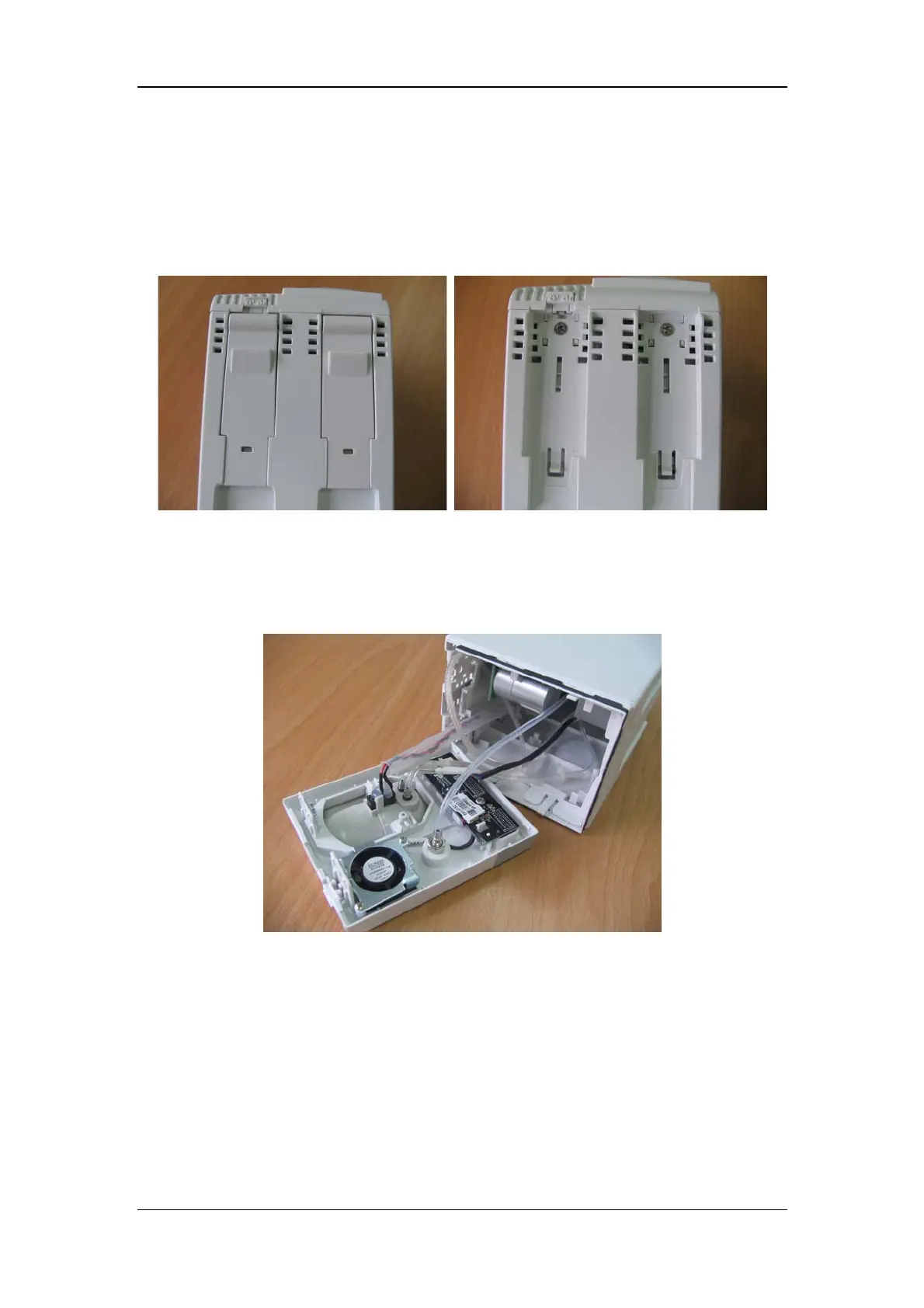

1. Remove the four contact screws on the back and two snap locks on the bottom and then
unscrew the two M3×6 screws by referring to the procedure as described in 5.6.1
Disassembling the ICG Module .
2. Take off the front cover of the CO
2
module by referring to the procedure as described in
5.6.1 Disassembling the ICG Module. Then press the two clips about 1mm and take off
the housing.
