Parts List

SN P/N Description Qty

1 042-000055-00 T8 interface support (new interface) 1

2 051-000221-00 6800 DVI interface board (full configuration) 1

3 6800-20-50241 Interface board insulating plate 1

4 051-000222-00 6800 USB interface board (full configuration) 1

5 6800-20-50745 Waterproof strip 1

6 M04-004012--- Screw, M3×6 4

7 M6T-030005--- Berilium & bronze leaf 187S30（4 leaves） 7

8 M6T-030005--- Berilium & bronze leaf 187S30（2 leaves） 1

9 M6T-030006--- Berilium & bronze leaf 92-106 nickel plated 6

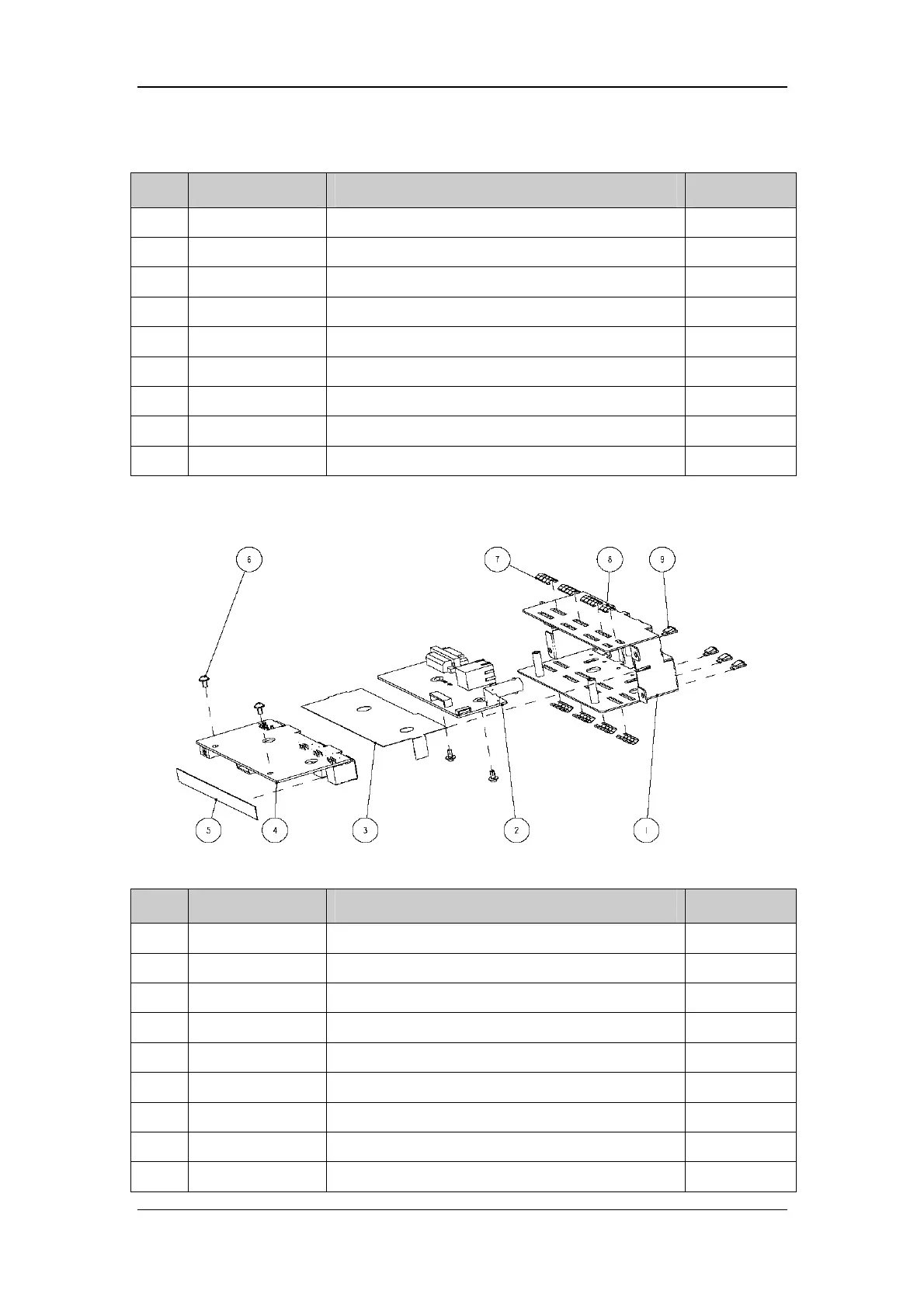

Exploded View (115-003227-00)

Parts List

SN P/N Description Qty

1 042-000055-00 T8 interface support (new interface) 1

2 051-000221-01 6800 DVI interface board (standard configuration) 1

3 6800-20-50241 Interface board insulating plate 1

4 051-000222-01 6800 USB interface board (standard configuration) 1

5 6800-20-50745 Waterproof strip 1

6 M04-004012--- Screw, M3×6 4

7 M6T-030005--- Berilium & bronze leaf 187S30 7

8 M6T-030005--- Berilium & bronze leaf 187S30 1

9 M6T-030006--- Berilium & bronze leaf 92-106 , nickel plated 6
