Mindray DC-88

Structure and Assembly/Disassembly 9-1
9 Structure and
Assembly/Disassembly

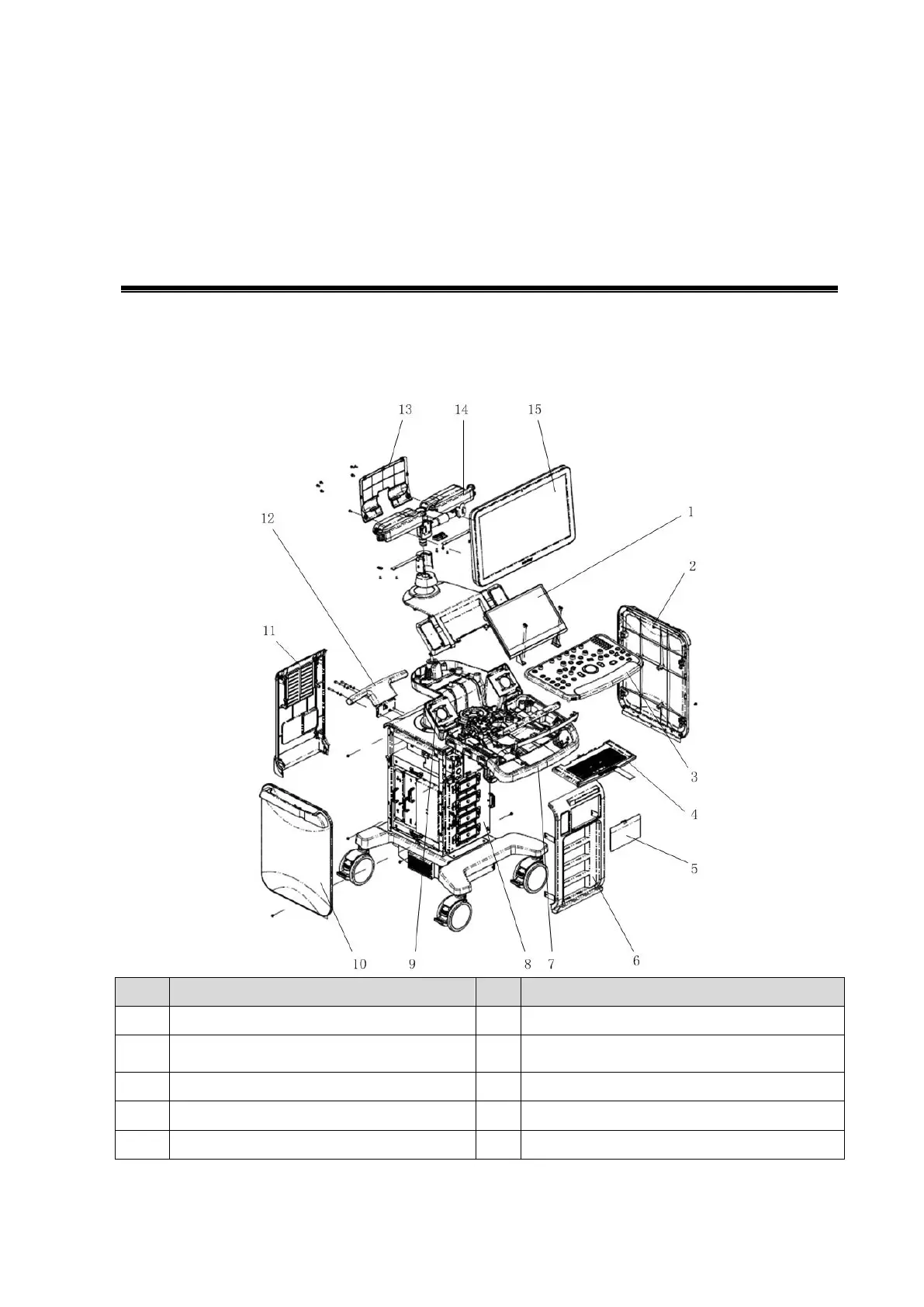

9.1 Structure of the Entire System
No.
Name
No.
Name
<1>.
Touchscreen assembly
<2>.
Right side-panel assembly of main unit
<3>.
Top cover assembly of the control panel
<4>.
Keyboard assembly
<5>.
Printer cover
<6>.
Rear cover assembly of main unit
<7>.
Cast-aluminum base
<8>.
Main body and keyboard assembly
<9>.
Speaker assembly
<10>.
Left side-panel assembly of main unit
