9-4 Structure and Assembly/Disassembly
9.3.1 Display (Monitor) Assembly
The disassembly tool: cross-headed screwdriver (M3, M4)

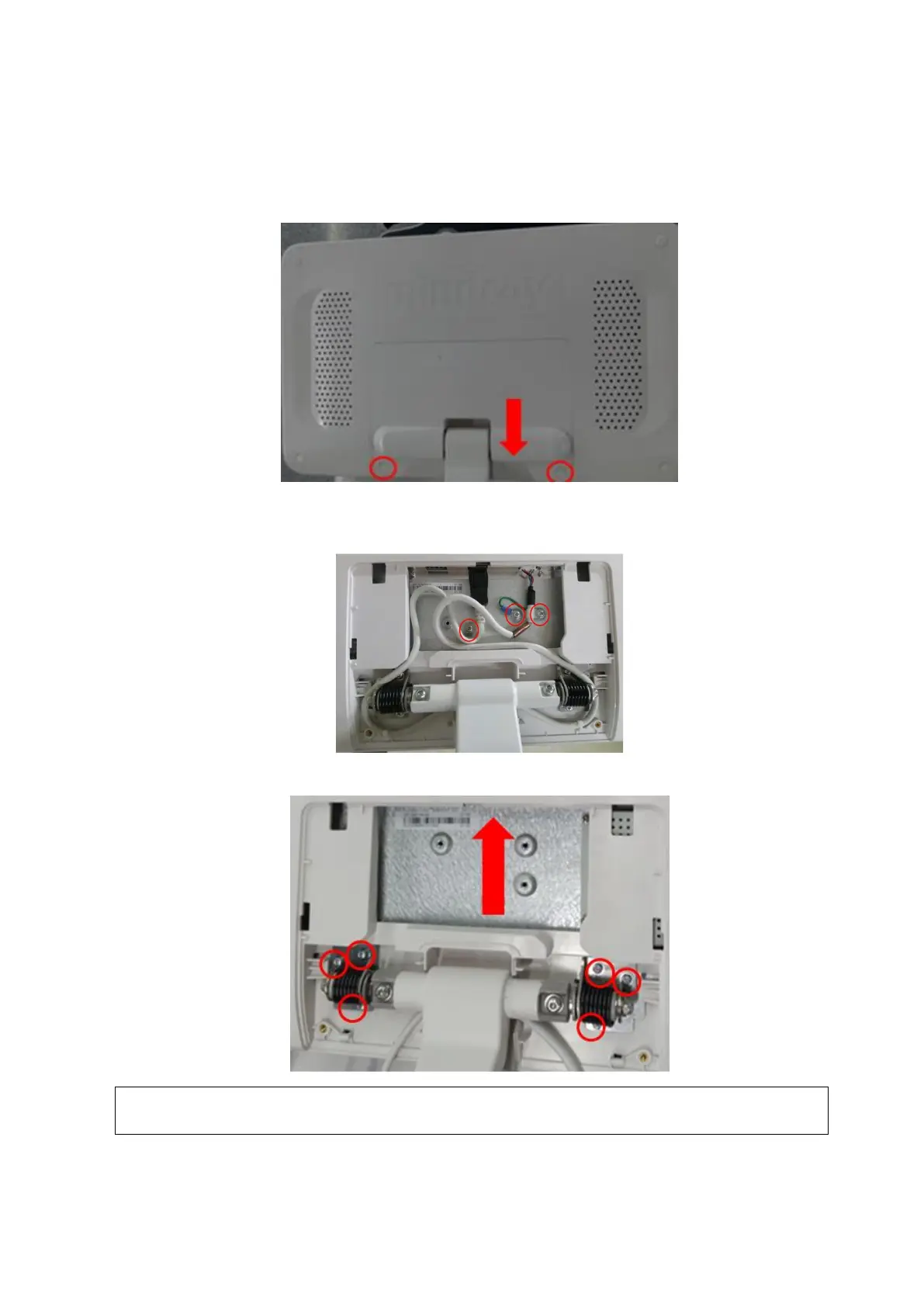

1. Unscrew two M4X12 screws, and remove the display cable cover;
2. Unscrew three M4 X 12 screws. Remove the power supply cable of the display and unplug the
signal cable.
3. Unscrew six M4X12 screws, and remove the display assembly upwards.
The metal part is inserted in the hole of the plastic part. The damage of the display’s
rear cover may occur if removed by force.
