9-
40
S
tructure
and
Assembly
/Disasse
mbly
2.

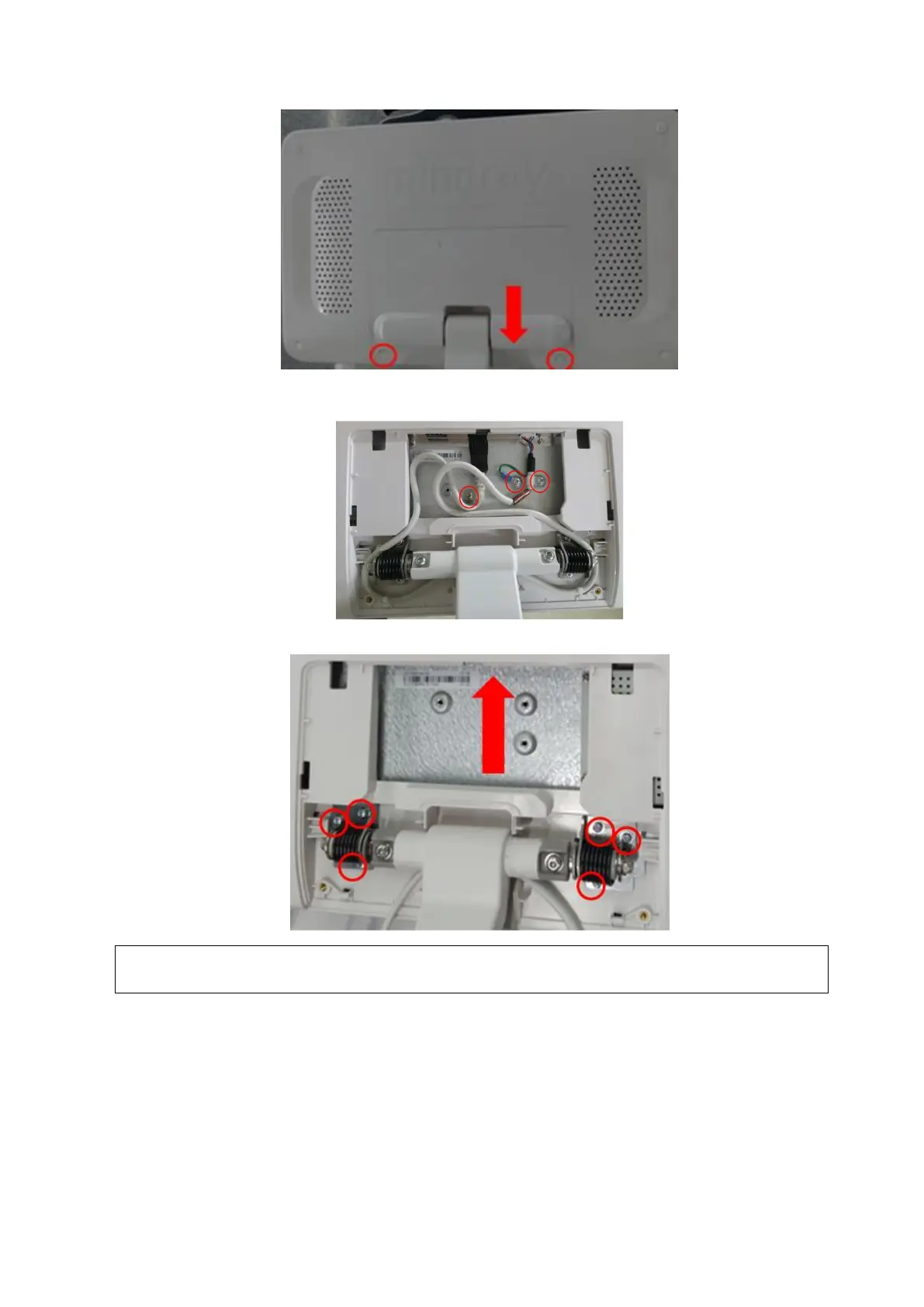

Unscrew t
hree M4 X
12 screw
s. Remove
the pow
er supply cab
le of the d
isplay
and unplug
the
signal cab
le.
3.
Unscrew six M4X
12 scr
ews,
and remove
the display
assembly
upwards.
4.
Unscrew
two
M4 X
12 screw
s, remove t
he cable
fix board.
Note:
The
metal
p
art
is
inserted
in
the
hole
of
the
plasti
c p
art
.
The damage
o
f the
disp
lay’s
rear cover
may occur i
f removed by
forc
e.
187
189
