Mindray MX7 Service Manual

Part II General Information
Probe and Needle-guided Bracket 143

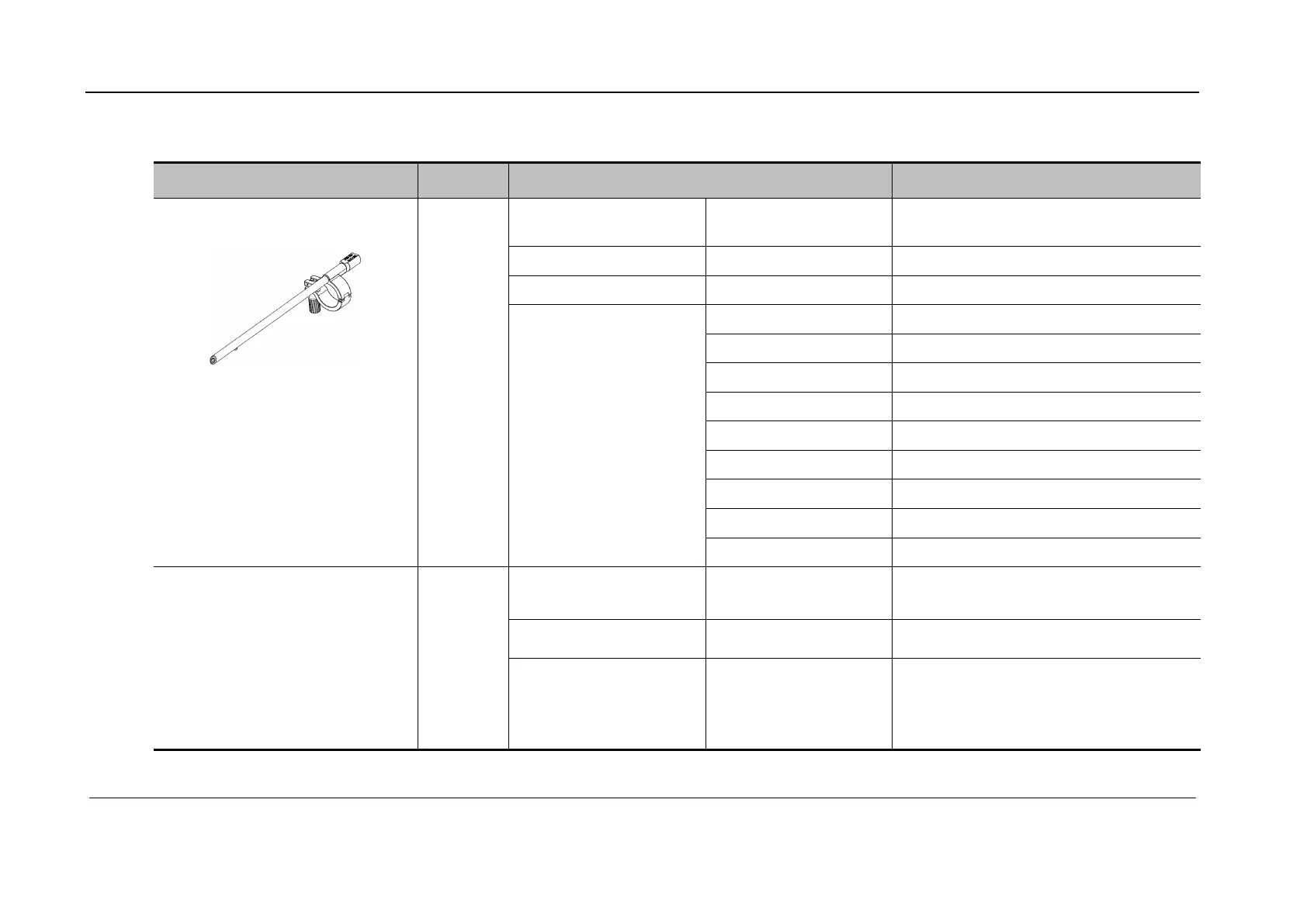

3.2 Needle-guided Brackets
Image Model Info Remarks
NGB-004
Type
Metal/needle
undetachable
Biopsy Angle/Depth /
Applicable Biopsy Needle 16G, 17G, and 18G
P/N
115-001751-00 NGB-004 Needle-guided Bracket
115-002283-00 NGB-004 Needle-guided Bracket
120-001450-00 NGB-004 Needle-guided Bracket/VET
120-001451-00 NGB-004 Needle-guided Bracket/VET
120-001452-00 NGB-004 Needle-guided Bracket/VET
120-005078-00 NGB-004 Needle-guided Bracket
PR3A-30-91144 NGB-004-16G Needle Guide Bracket
PR3A-30-91145 NGB-004 Needle-guided Bracket
PR3A-30-91146 NGB-004 Needle-guided Bracket
NGB-006
Type
Plastic/needle detachable
Metal/needle detachable
Biopsy Angle/Depth 25°, 35°, and 45°
Applicable Biopsy Needle
Metal: 14G, 16G, 18G,
20G, 22G
Plastic: 13G, 15G, 16G,
18G, 20G

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
