Part II General Information
Structure and Assembly/Disassembly 176
5.1.2 Trolley

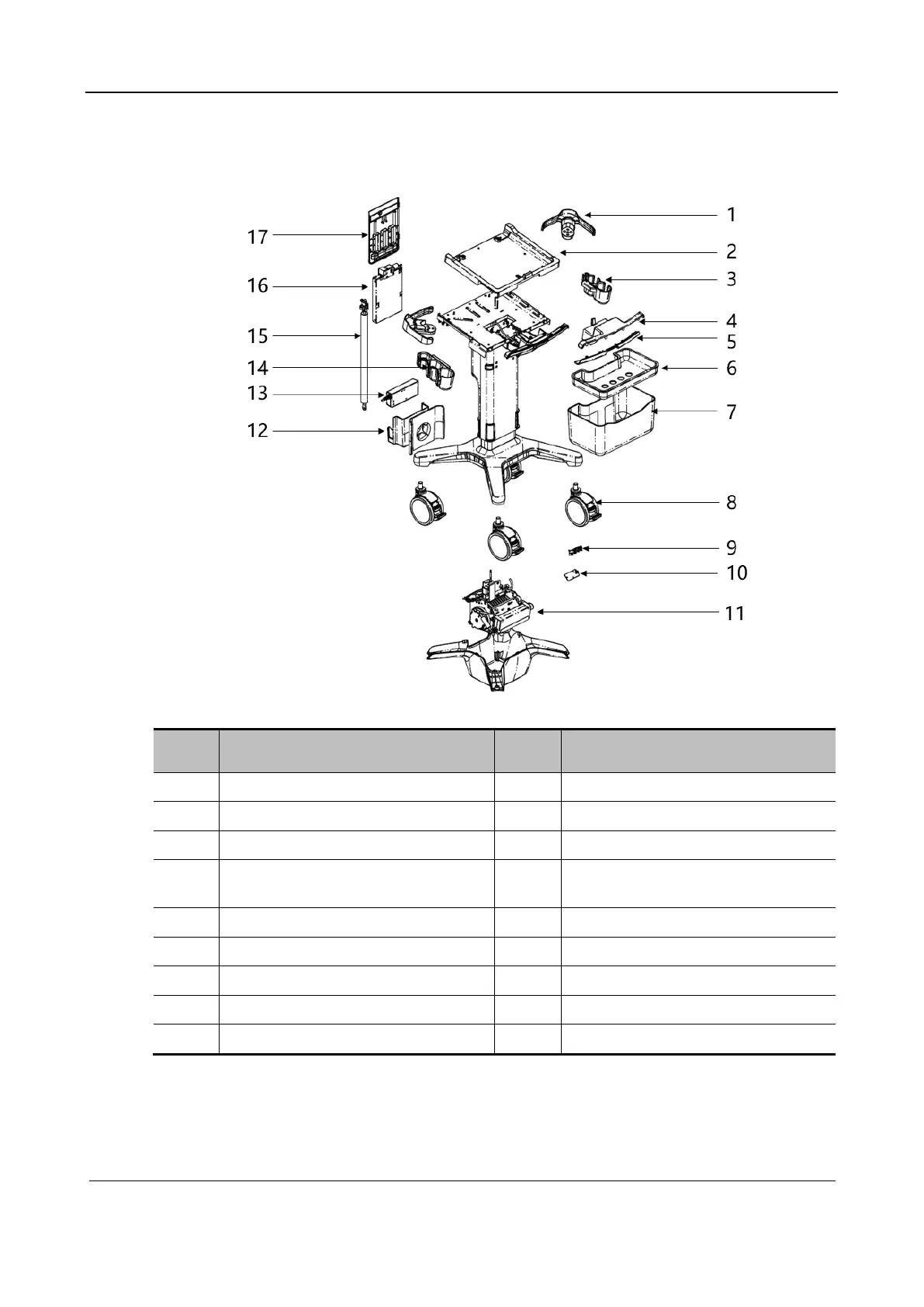

Figure 5-2Explosive view of the trolley
No. Name No. Name
1 Protective Bracket 10 Mobile Trolley Output Control Board(
2 Trolley Control panel Top Cover 11 Retractor
3 Right Probe Holder Assembly 12 Adapter Basket
4 Mobile Trolley Handle Upper Cover 13 Power adapter (applicable to the main
unit, absent for the trolley)
5 Mobile Trolley Handle Front Cover 14 Left Probe Holder Assembly
6 Small Tray 15 Gas spring
7 Big Basket 16 Probe extender
8 Caster 17 Probe extender cover plate
9 2146 Fuse and LED Board PCBA
5.2 Assembly/Disassembly of the Main Unit
This section describes the assembly and disassembly processes of major components and hardware
boards. The assembly process is the inversed disassembly process unless otherwise specified.
