Mindray MX7 Service Manual

Part III Appendix
Description of Self-Test Items 249

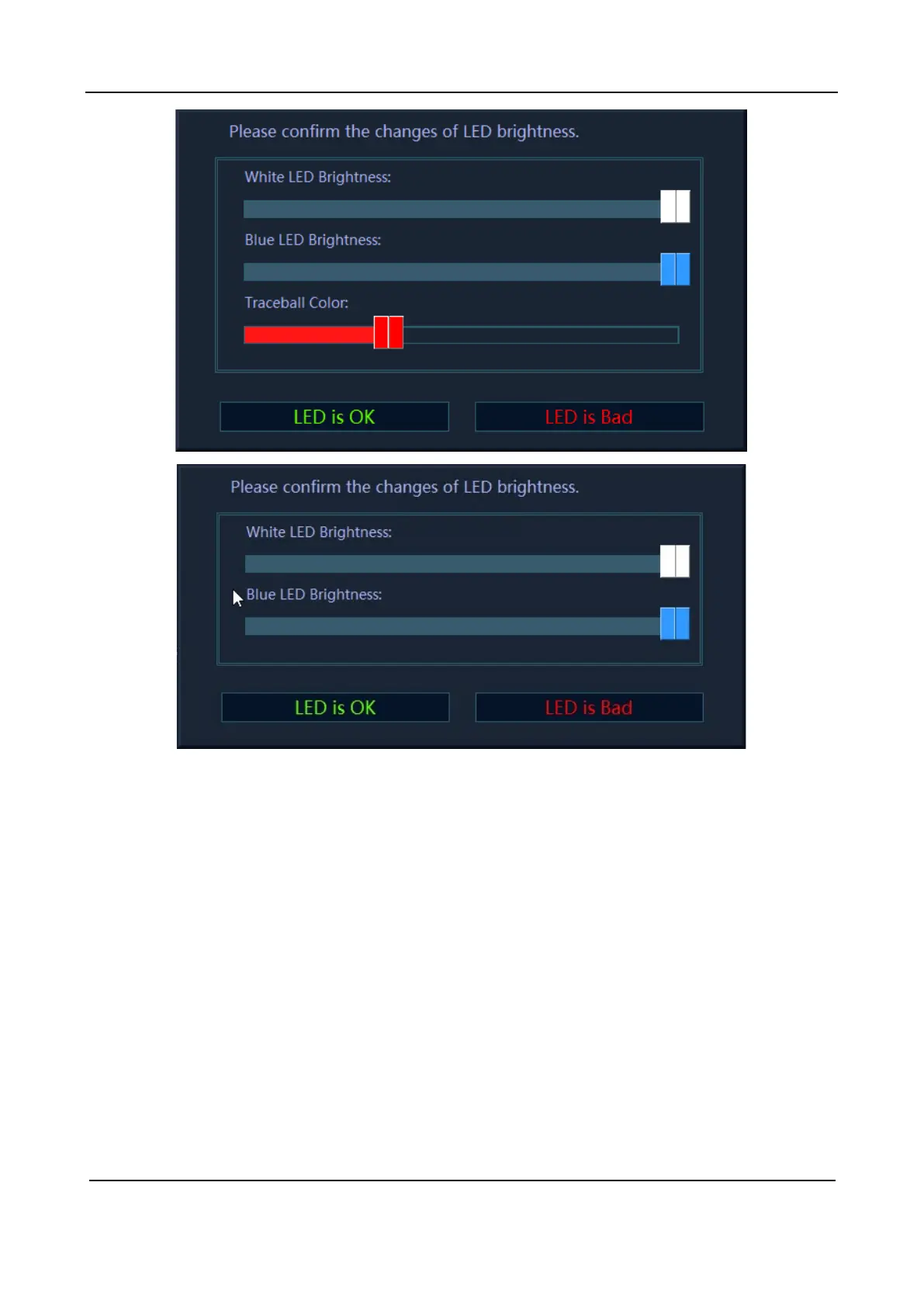

 Troubleshooting suggestion
If the brightness of the LEDs does not change, replace the control panel.
2.23 Z0801 Parameter Board I2C Communication
Test
 Upper-level test item
Communication Test Between PC Module and MF FPGA
 Test content
Read data on the LCD through the I2C bus. Judge whether it is not 0 or not F, and then parse the
LCD model, panel serial number, and LCD version.
 Test failure analysis
If the test result is Error, the drive malfunctions.
If the test result is FAIL, the connection between the multifunctional FPGA and the parameter
board is abnormal.
