Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 183

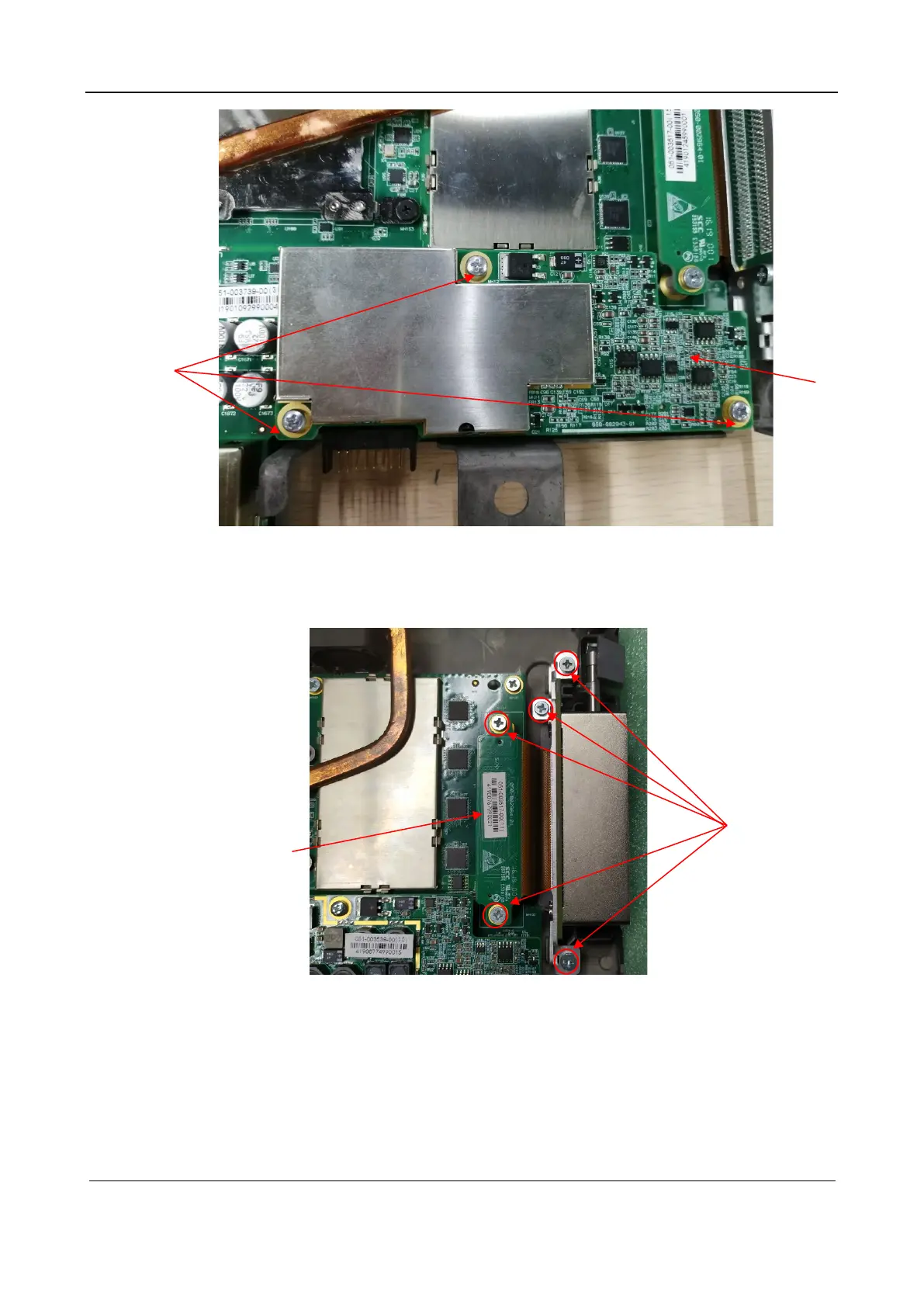

3. Probe board
Use a screwdriver to remove the 5 M3X5 cross recessed flathead screws and lift the probe board
socket upwards vertically.
4. IO shield cover
Use a screwdriver to remove the two M3X5 cross recessed flathead screws and take off the IO
shield cover.
Probe board socket
M3X5 cross
recessed flathead
M3X14 cross
recessed panhead
screw
4D/TEE/CW board

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
