Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 195

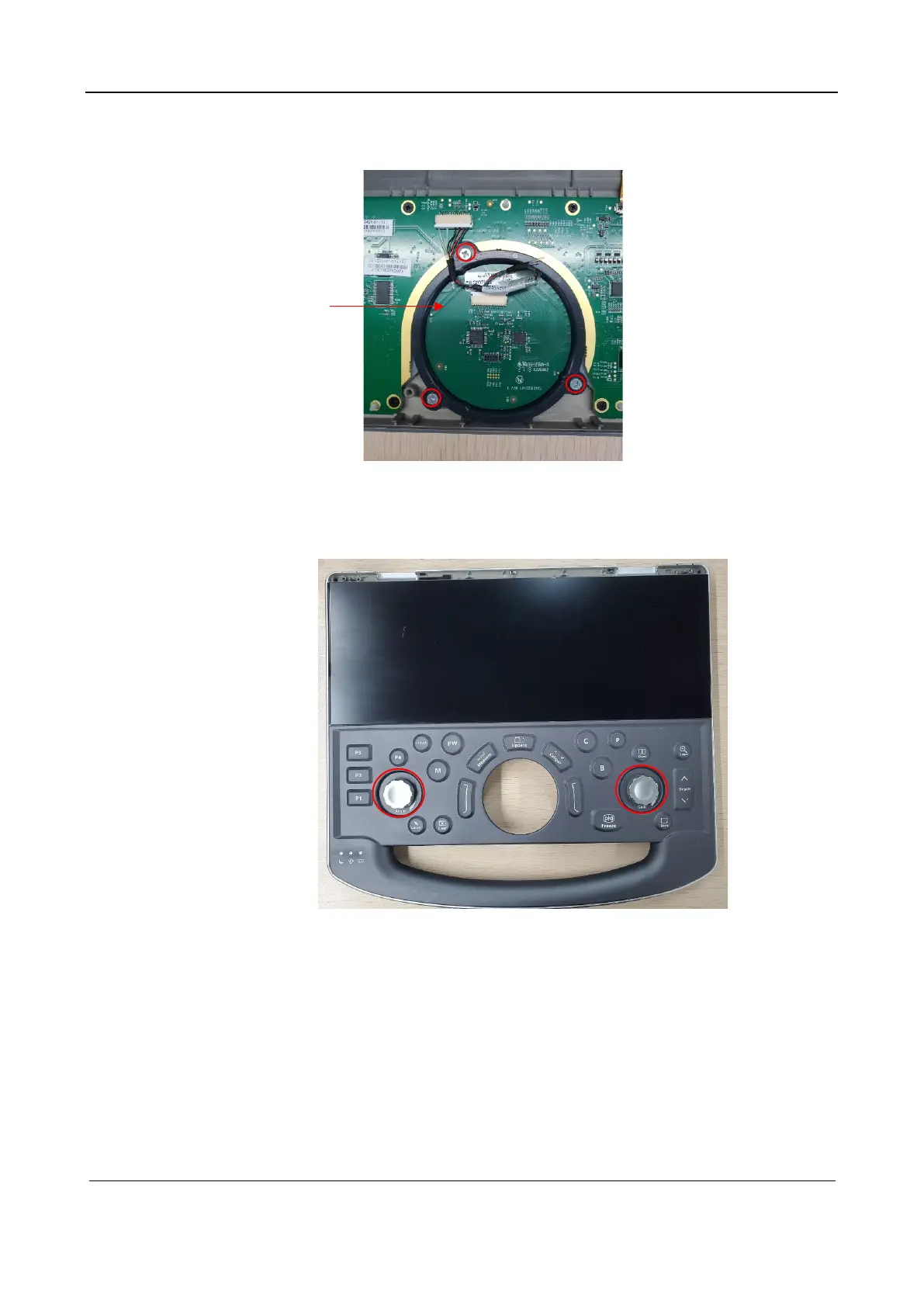

Use a screwdriver to remove the two M3X5 cross recessed flathead screws and pull out the touch
control board cable from the interface downwards horizontally.
6. Rotary encoder button
Pull out the two rotary encoder buttons.
7. Control panel PCBA
Use a screwdriver to remove the 14 M2.5X4 plus flat-head screws and take off the control panel
PCBA.
Touch control board
M3X5 cross recessed
flathead screw
Rotary encoder button

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
