Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 202

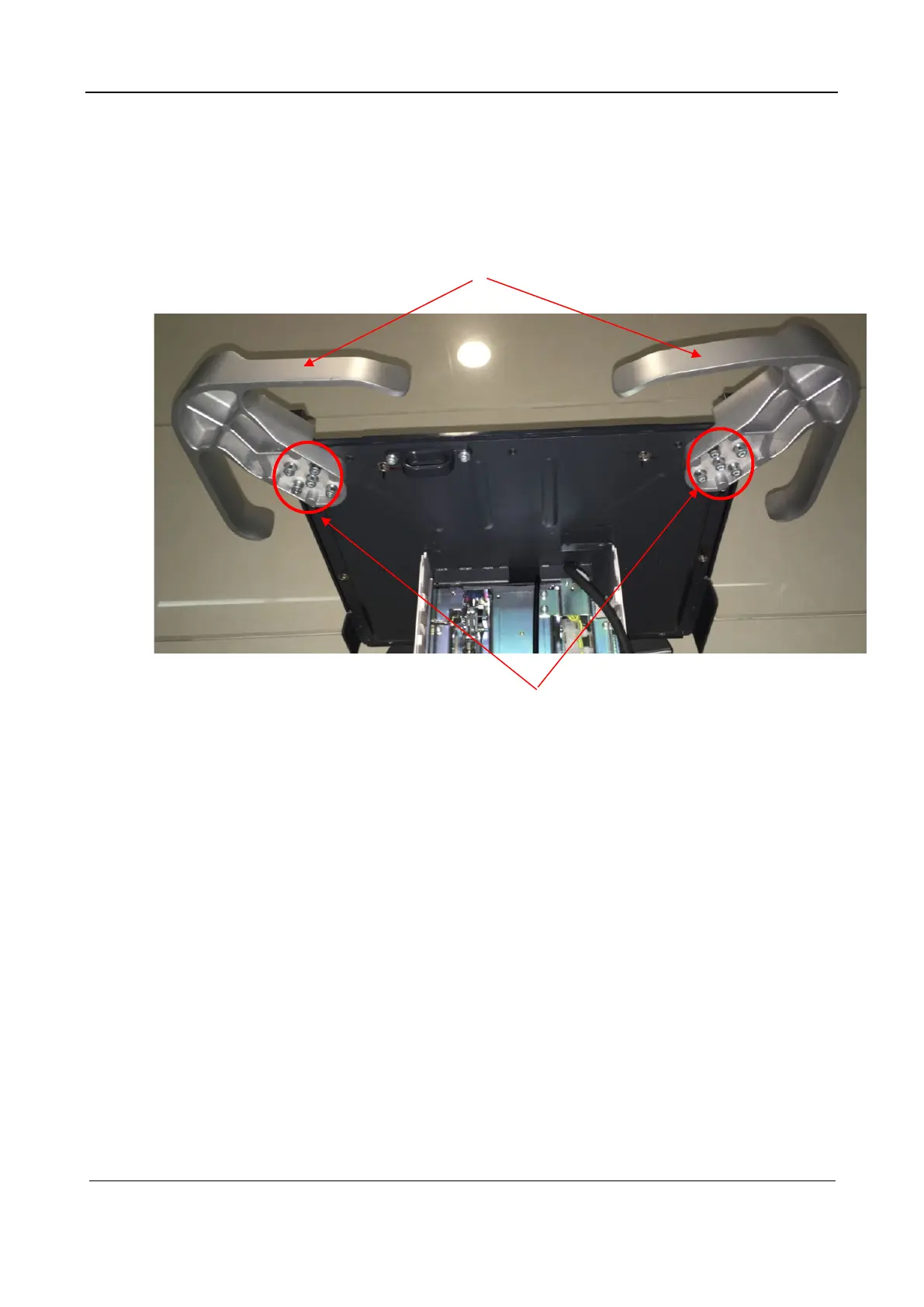

5.3.5 Removing the Anti-Collision Bracket
The trolley has two anti-collision brackets mounted on the left and right sides of the trolley panel. Use
an Allen wrench (M5) to remove the 10 M5X12 hex socket screws for fastening the anti-collision
brackets on the left and right sides of the trolley panel, and then take off the anti-collision brackets from
the panel.
5.3.6 Removing the Upper Cover of the Trolley Control Panel
1. Remove the 10 M4X12 cross recessed countersunk head screws from the rear side of the trolley
control panel, as shown in the following figure.
2. Take off the upper cover of the trolley control panel upwards.
Anti-collision bracket
M5X12 hex socket screw (10 pcs)

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
