Mindray MX7 Service Manual

Part II General Information
Function and Performance Check 233

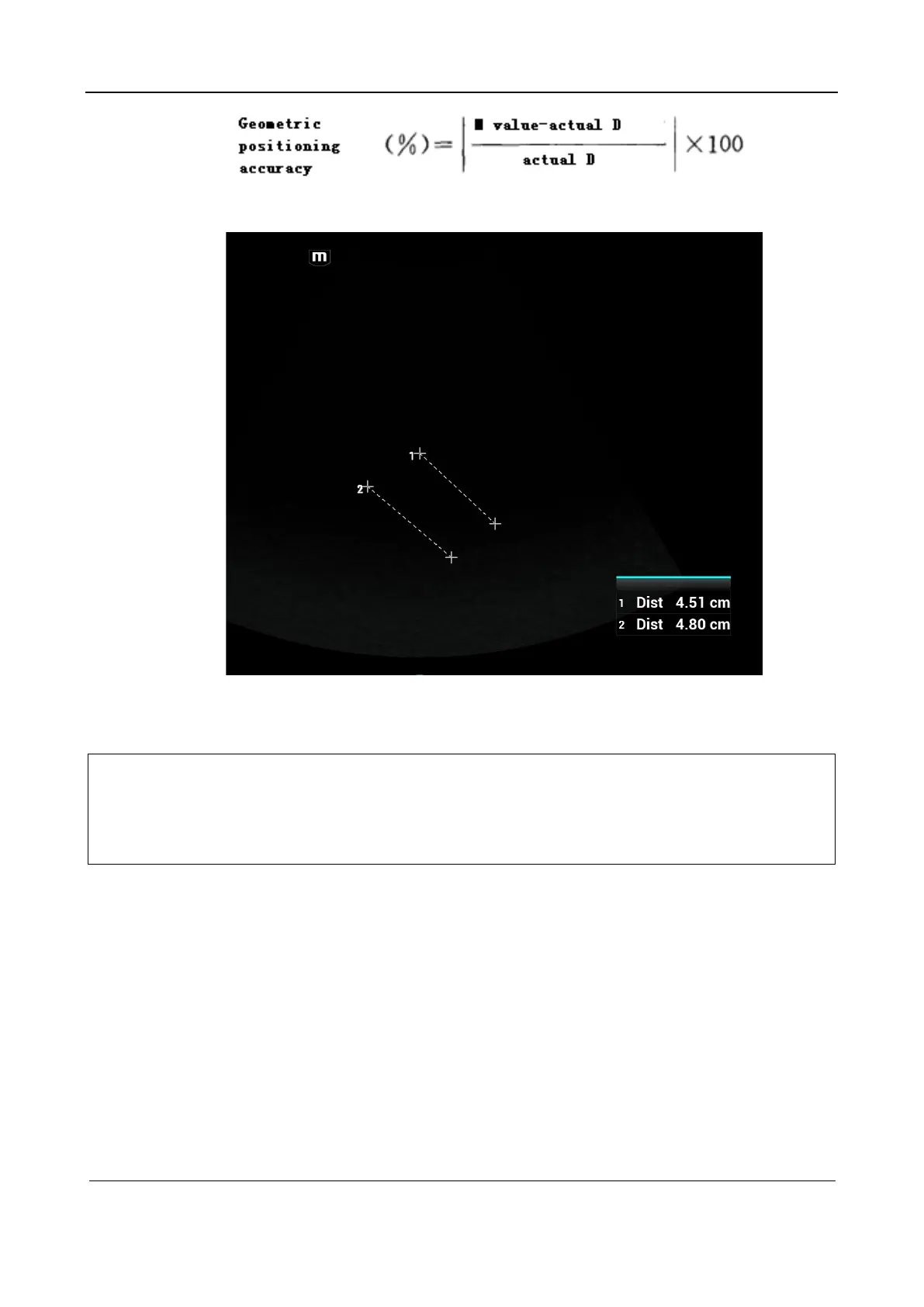

Image effect is show in the figure below:
6.5.2.5 Lateral Geometric Positioning Accuracy
Note:
 For linear array probes, the lateral interval can be read section by section.
 For convex array probes, all lateral targets mus be displayed at a time.
 The measurement scale should be placed above or under the center of the target to be
measured.
Test procedure:
1. Place the probe gently on the acoustic window of phantom which is covered by water or medical
ultrasonic couplant.
2. Adjust display depth, to make horizontal groups display in the image.
3. Adjust focus to be in horizontal groups (no explicit standard).
4. Adjust gain, TGC and etc. to make horizontal groups display clearly.
5. Use caliper to measure horizontal target distance by step of 20 mm.
6. Select all measurement values deviating largely from 20 mm, and calculate the error by the
following formula.

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
