Mindray MX7 Service Manual

Part I Service Scenarios
Installation 19

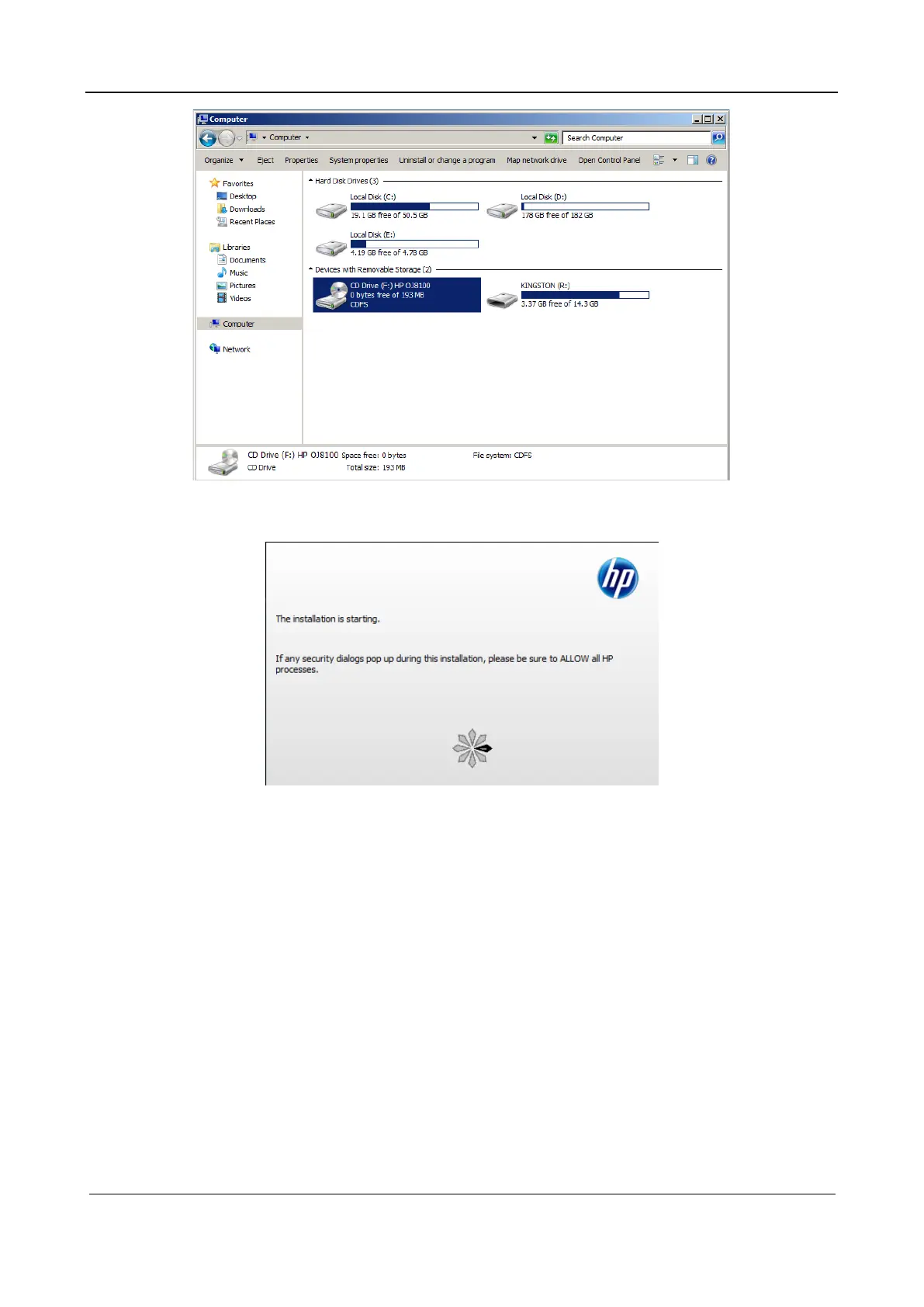

5. Double-click the drive to start installation. The following is an example of installing a printer
driver for HP8100.
6. Perform installation as prompted. After installation, close all prompt windows and return to the
Doppler software screen.
7. Click OK to save the settings.
1.2.5.5 Connecting a Graph/Text Printer
The system support digital video printers, including B/W printers and color printers.
1. Put the printer in a proper place.
2. Connect the power cable of the printer. Use a USB cable to connect between the USB port of the
ultrasound system and the USB port of the printer.
3. Load a paper roll, and turn on the system and printer.
4. Configure the printing service as follows:
a Choose Setup > Print to access the Print Service page.
b Click Add Service to access the following page.

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
