Mindray MX7 Service Manual

Part I Service Scenarios
Installation 24
2. Reconfigure the scanner based on the preceding preconfiguration procedure.
1.2.5.13 Preconfiguring the HS-1R JDK-2601
Preconfigure the scanner through scanning. Ensure that the scanner cable is correctly connected before
scanning. After successfully reads the barcode information, the scanner buzzes and the indicator blinks
green.

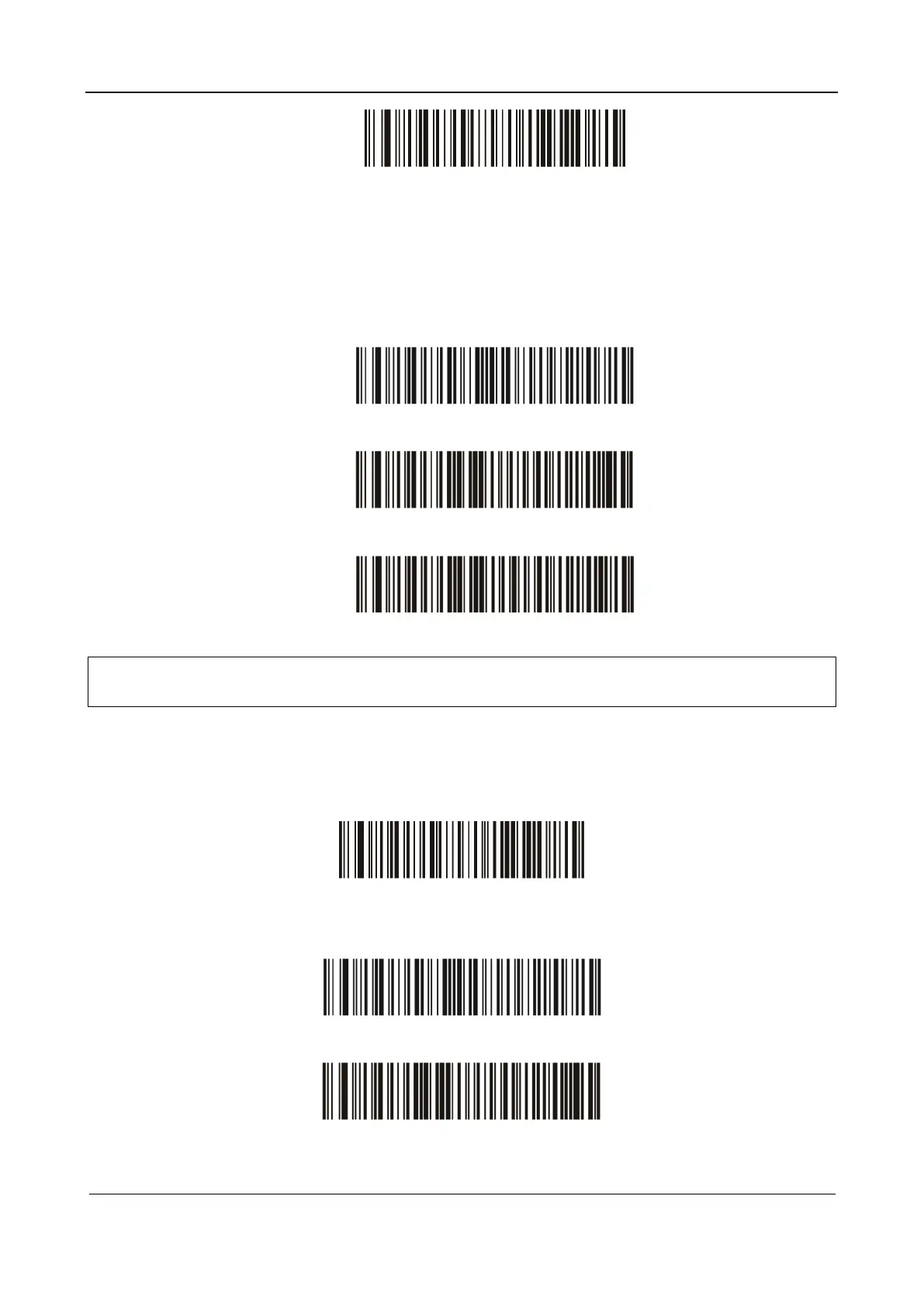

1. Scan the following barcode to configure the scanner:
2. Scan the following barcode to enable the suffix function:
Barcode
RFID
Note:
You can perform custom configuration for the JADAK scanner or contact Mindray
engineers as required. This setup guide applies only to ultrasound products.
1.2.5.14 Restoring the Default Configuration of HS-1R JDK-2601
1. If the scanner malfunctions, scan the following barcode to restore the default configuration of the
scanner:
2. Reconfigure the scanner as follows:
a Scan the following barcode to configure the scanner:
b Scan the following barcode to enable the suffix function:
Barcode

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
