Mindray MX7 Service Manual

Part I Service Scenarios
Maintenance 64

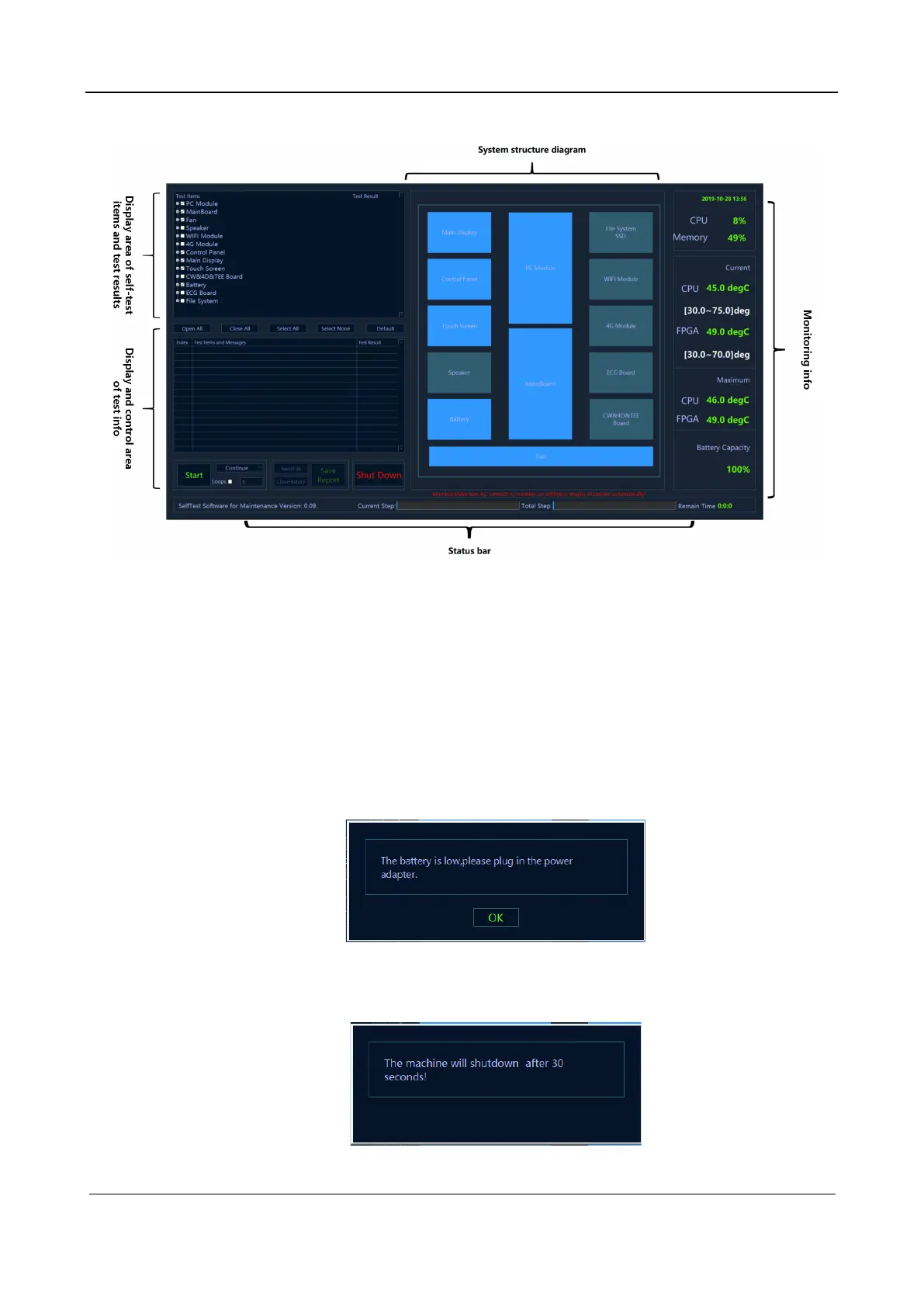

Figure 2-3 Maintenance self-test screen
5. Self-test status display
When the self-test program is running, the self-test software version is displayed in the lower left
corner on the status bar: SelfTest Software for Maintenance Version: xx. The software version in
the status bar becomes the name of current test during the test. The current test progress and overall
test progress are displayed simultaneously on the status bar. In addition, a warning message
appears in red on the status bar "Warning: Make sure AC connect to machine on selftest or maybe
shutdown automatically!"
When the system is powered by the battery only:
˗ If the battery capacity is less than 10%, the self-test program prompts you to connect the
power adapter.
˗ If the battery capacity is less than 6%, the self-test program prompts that the system will
shutdown after 30 seconds.
Beyond that, the status bar shows the remaining time of the test.

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
