Mindray TE7T User Manual

13-24 Probes and Biopsy
 NGB-010
No.
Name
Description

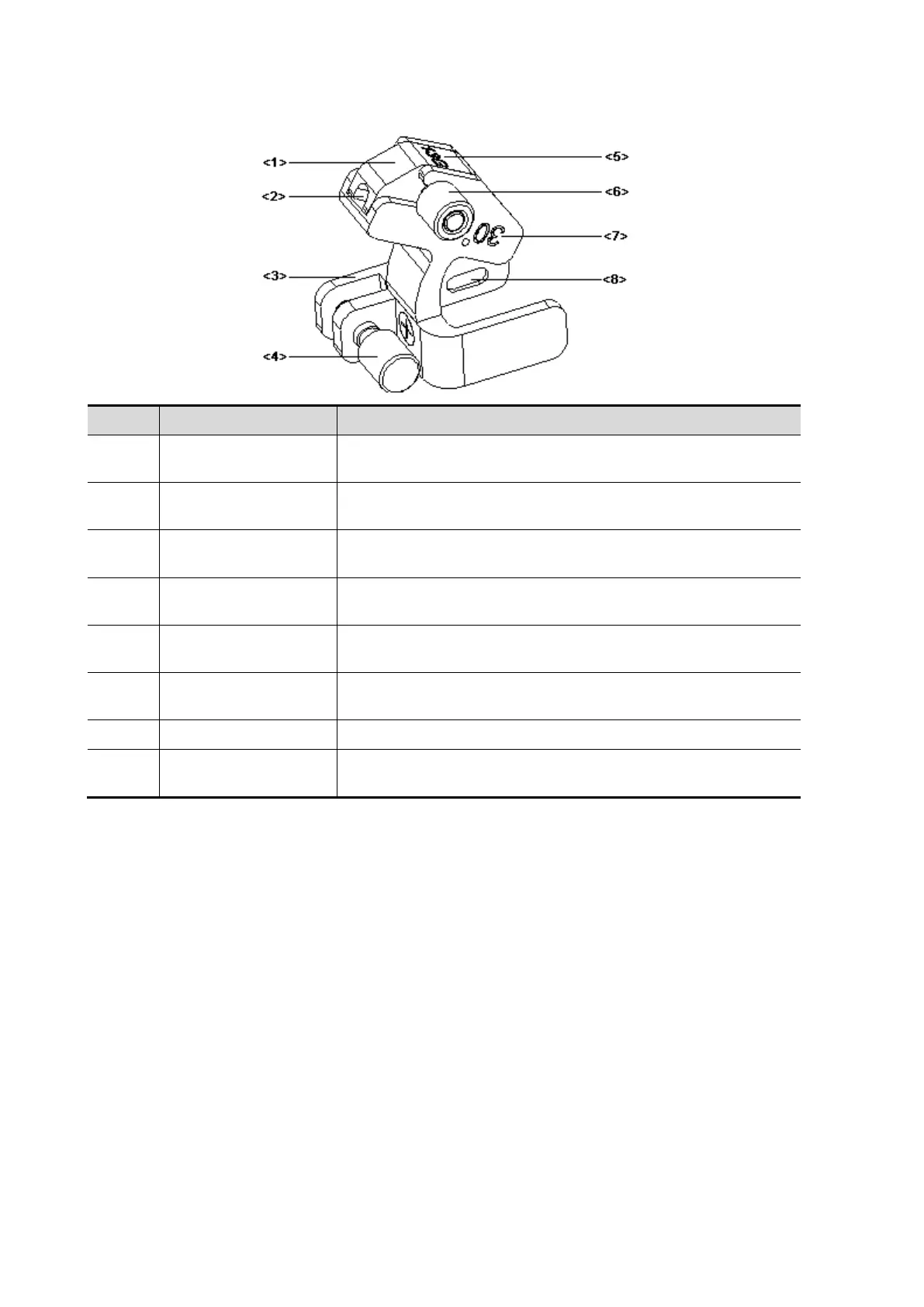

<1>
Guiding block
Used for installing biopsy needle; there are five specifications
of guiding blocks for different biopsy needles.
<2>
Guiding hole of the
biopsy needle
Used for installing the biopsy needle.
<3>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the probe.
<4>
Knob of fixing needle-
guided bracket
Used for fixing the needle-guided bracket on the probe.
<5>
Specification of
guiding block (13G)
Matched with the corresponding biopsy needle (13G).
<6>
Knob of fixing the
guiding block
Used for fixing the guiding block.
<7>
Needle guide angle
The needle guide angle of this needle-guided bracket.
<8>
Grooves of the
needle-guided bracket
Matched with the tabs of the probe.
