Probes and Biopsy 13-39
6. Release the pressing block, adjust the angle adjusting nut to confirm that the needle can
freely slide in a vertical direction.
NGB-036

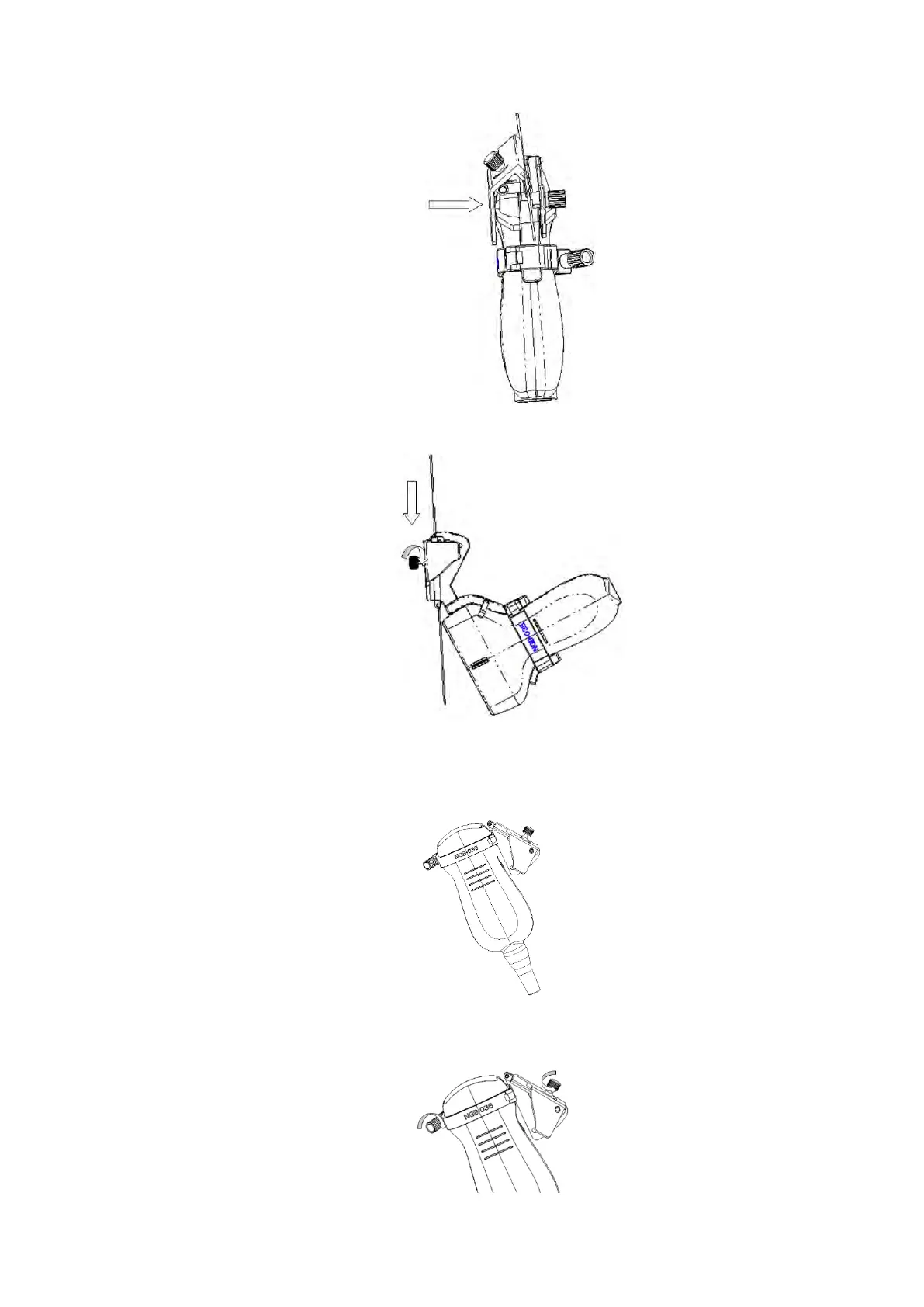

1. Put on the sterile probe sheath.
2. Select a proper needle-guided bracket, and match the tab with the groove of the transducer.
Mount the bracket onto the transducer.
3. Rotate the clamping nuts of the guided bracket on the right and left side to fix the bracket and
the transducer. Rotate the needle-type adjusting nut to the ultimate position as shown in the
figure.
