Mindray TE7T User Manual

13-48 Probes and Biopsy

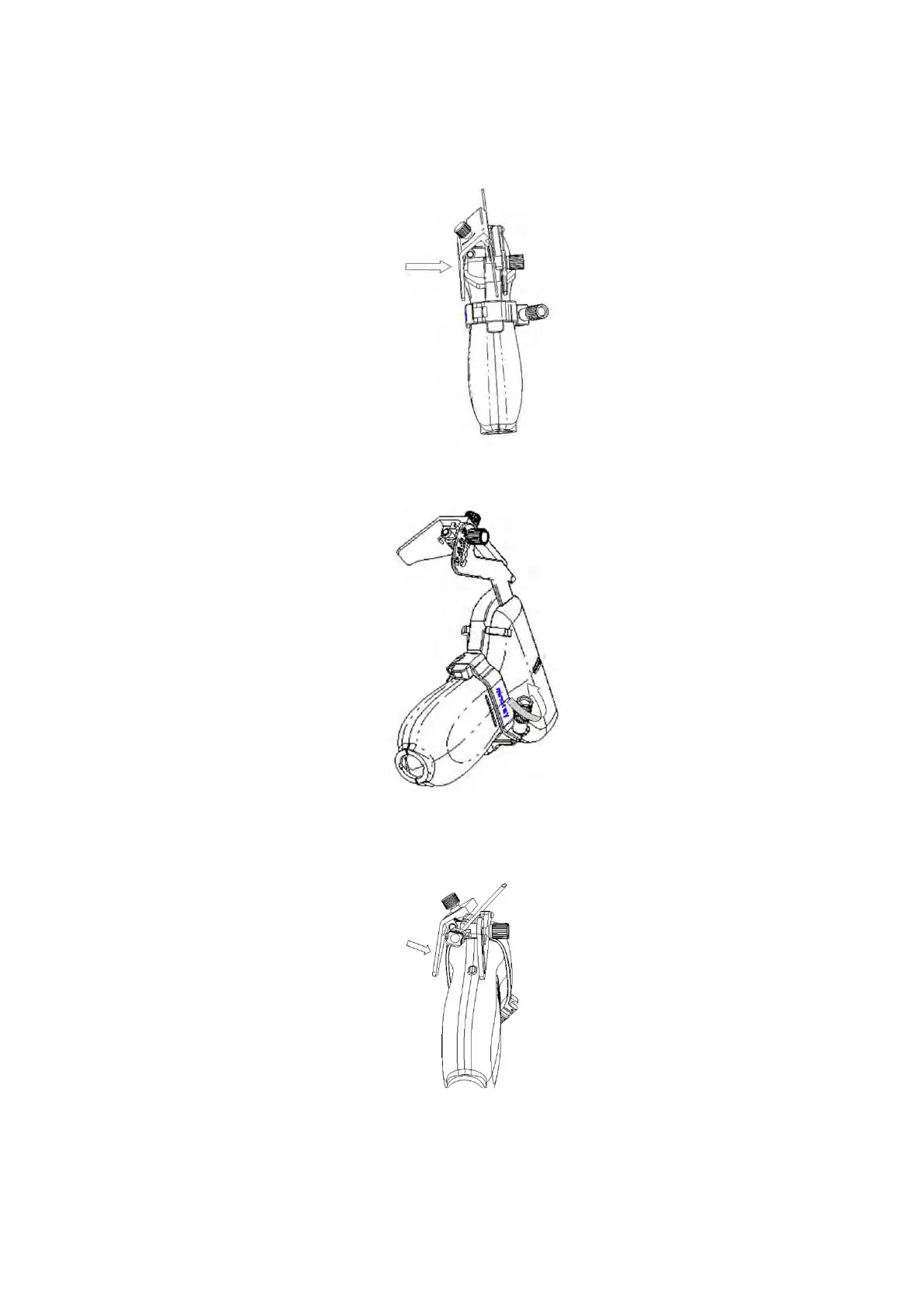

 NGB-035
1. Hold the probe and press the pressing block to separate V-shaped guiding block from the
pressing block.
2. Remove the needle.
3. Rotate the clamping nut to separate the bracket from the probe.
 NGB-036
6. Hold the transducer. Press the biopsy needle to separate the needle from pressure
position of the needle.
7. Separate the bracket and the transducer from the needle.
8. Rotate the clamping nuts of the needle guided-bracket on right and left side (following the
direction of the arrow). The needle guided-bracket is separate from the transducer. Hold
the transducer and take out the bracket.
