Probes and Biopsy 13-49

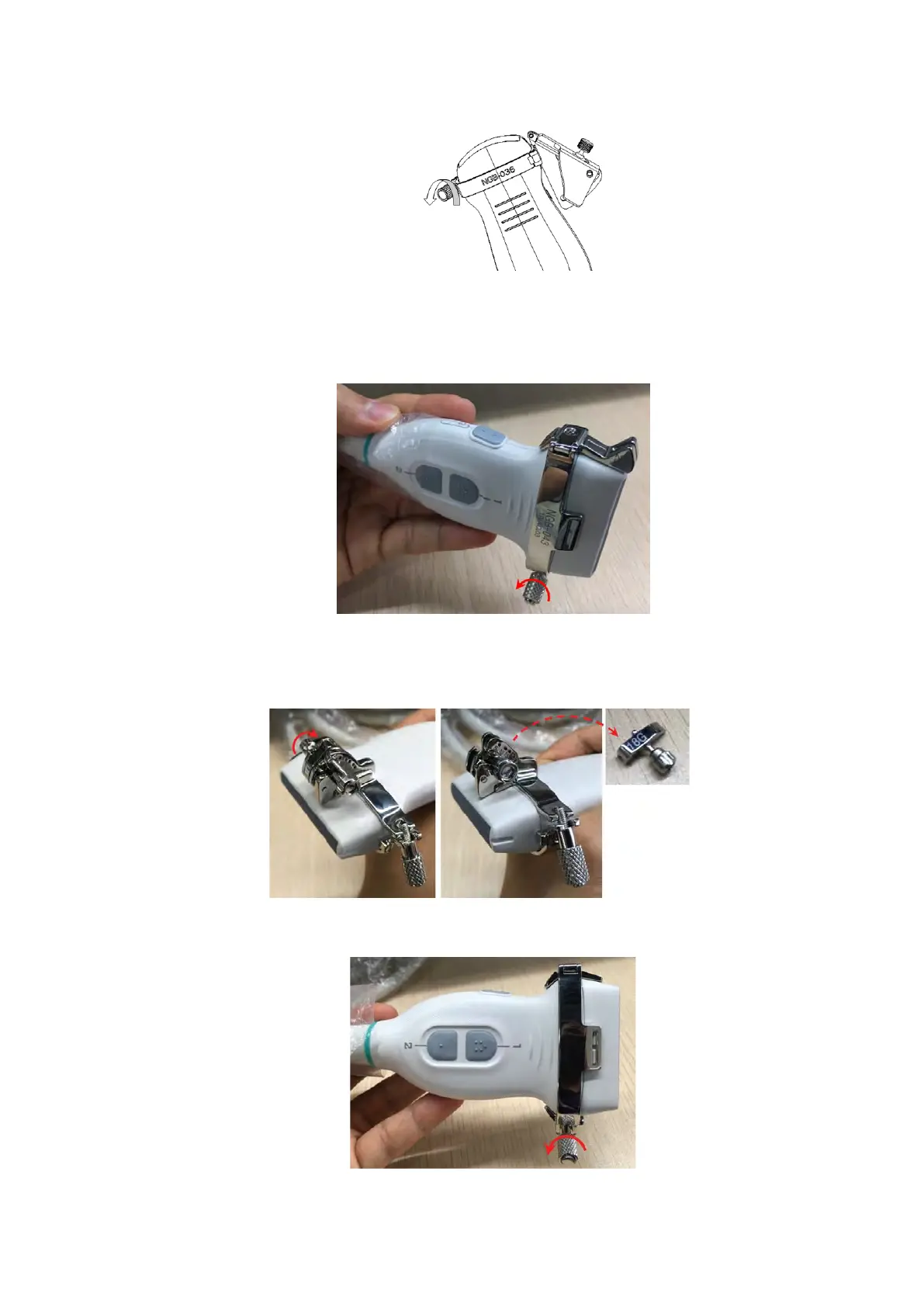

 NGB-043
1. Hold the probe, and remove the biopsy needle form the guiding hole of the guiding block.
2. Rotate the locking nut in the direction of the arrow shown on the figure to separate the bracket
from the probe.
 NGB-044
1. Hold the probe and remove the needle.
2. Loosen the guiding block nut, and remove it from the guiding block fixing frame.
3. Rotate the clamping nuts of the needle guided-bracket. The needle guided-bracket is separate
from the probe. Hold the probe and take out the bracket.
