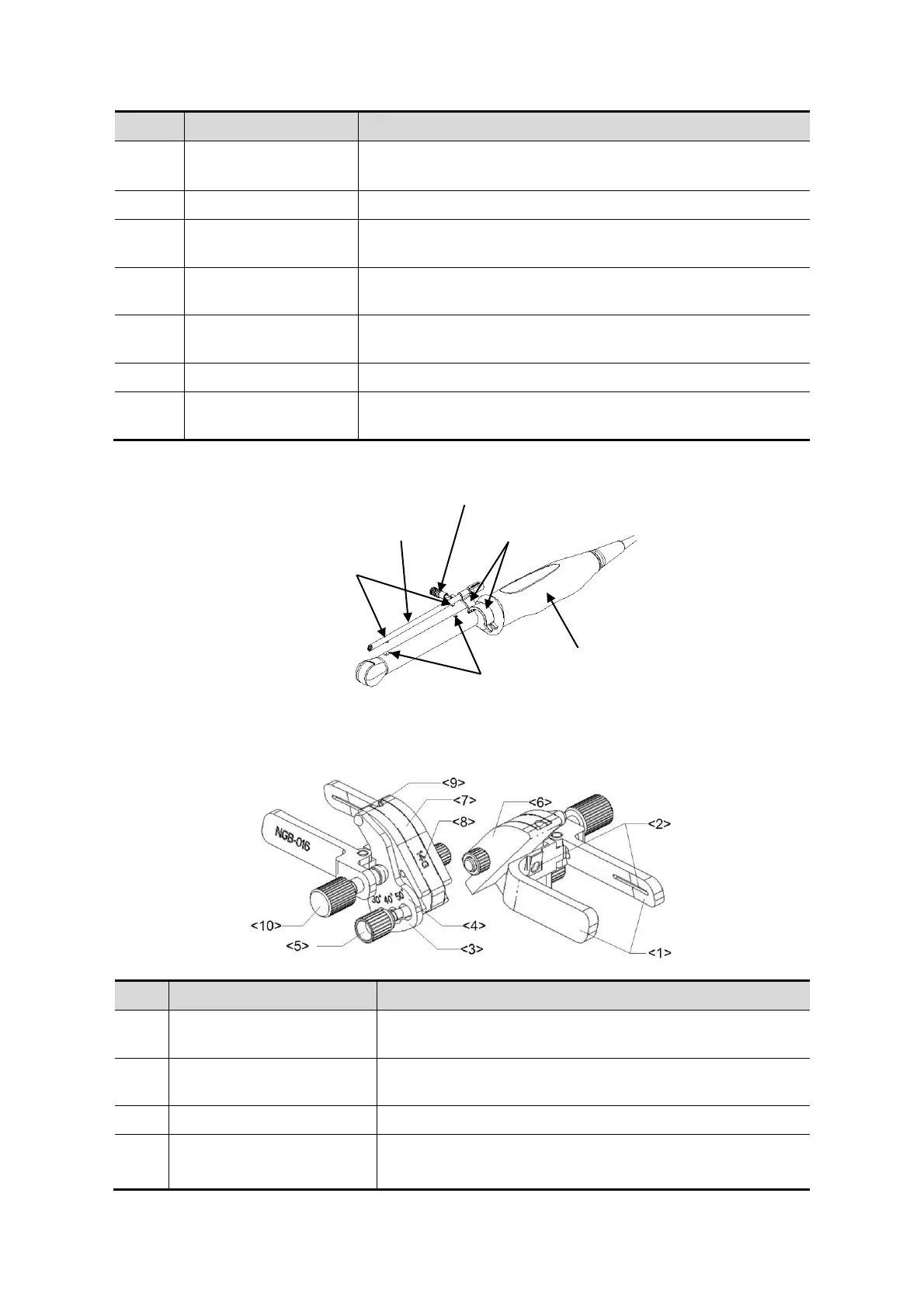

Mindray Z50BW User Manual

Probes and Biopsy 12-15
No.
Name
Description
<4>
Angle shift sign
(11°, 23°)
Matched with the biopsy angle (11°, 23°)
<5>
Angle pinch nut
Used for fixing the angle lock at a chosen angle
<6>
Angle block
Used for determining the angle of the biopsy; different
specifications of blocks can be used
<7>
Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy needles
<8>
Specification of
guiding block (14G)
Matched with the corresponding biopsy needle (14G)
<9>
Needle guide hole
Used for installing the biopsy needle
<10>
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the
transducer
 NGB-004
 NGB-016
No
Name
Description
<1>
Clamp of needle-guided
bracket
Used for installing the needle-guided bracket on the
transducer.
<2>
Groove of the needle-
guided bracket
Matches with the tab of the transducer.
<3>
Angle adjusting base
There are 3 types of angles available to be adjusted.
<4>
Angle shift sign (30°, 40°,
50°)
Matches with the biopsy angle
(30°, 40°, 50°).
Locating groove
Transducer
Needle guide
Locating bulge
Locking nut
Retaining clamp
