Minelab F3

F3 Service Manual
Page 27
NOTE
Take great care when connecting the wiring loom plug to the electronics pack. DO
NOT force the connection because this could damage or break the connector.

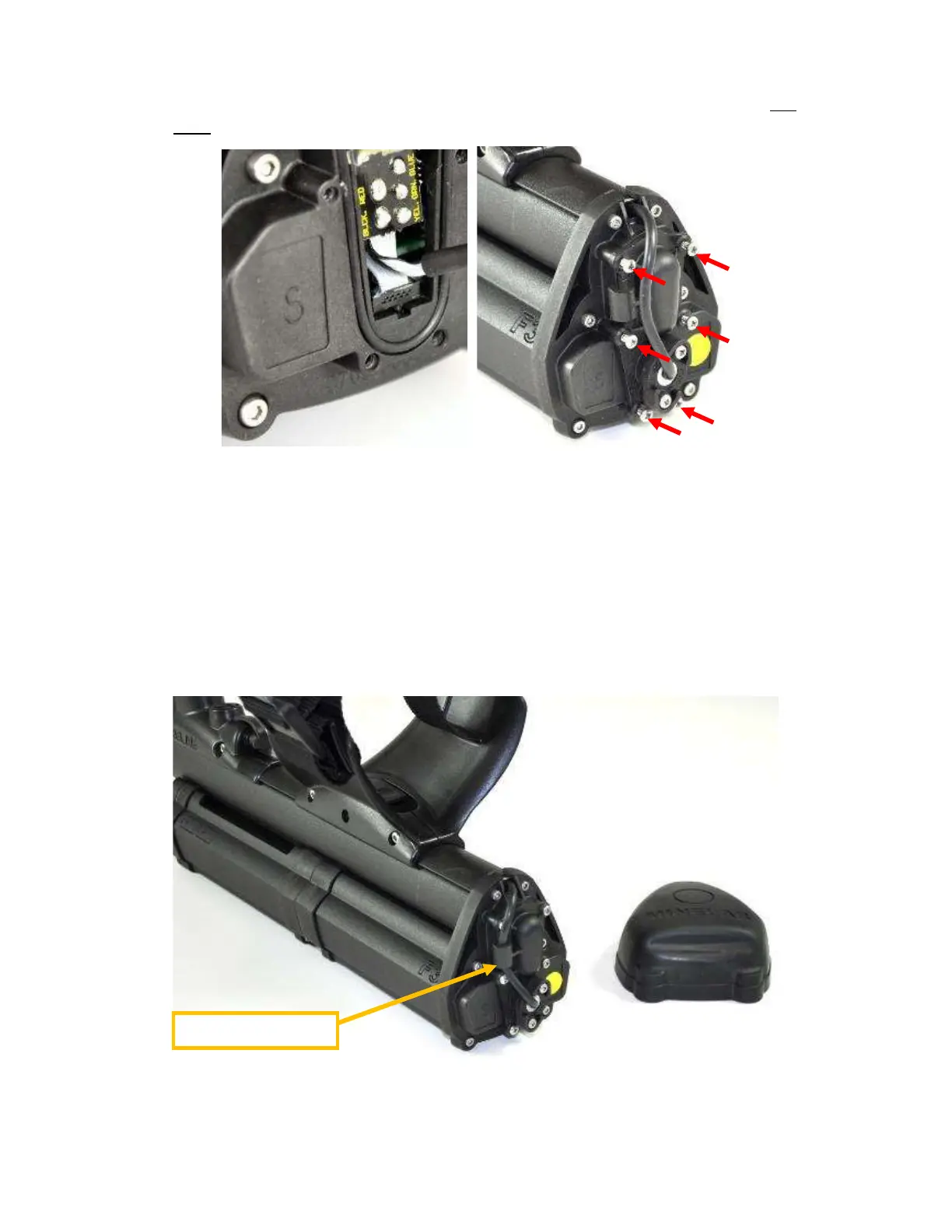

Figure 17: Wiring Loom Cable positioned and 6 screws inserted.
 Fold excess wiring loom cable into the electronics pack above the plug. Show
in Figure 17.
 Refit the bulkhead cover with six screws.
 Route the wiring loom around the cable router on the side of the bulkhead cover,
as shown in Figure 18.
 Attach the sensitivity endcap.
Cable router
Figure 18: Wiring Loom under cable router.
